3P32A IP67 industrial waterproof socket
This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Design and production, product specifications are FNP2-123F 32A 3Pin 220V industrial exposed socket, the socket is 2P+E, the range is 220V, and the product protection level is IP67.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

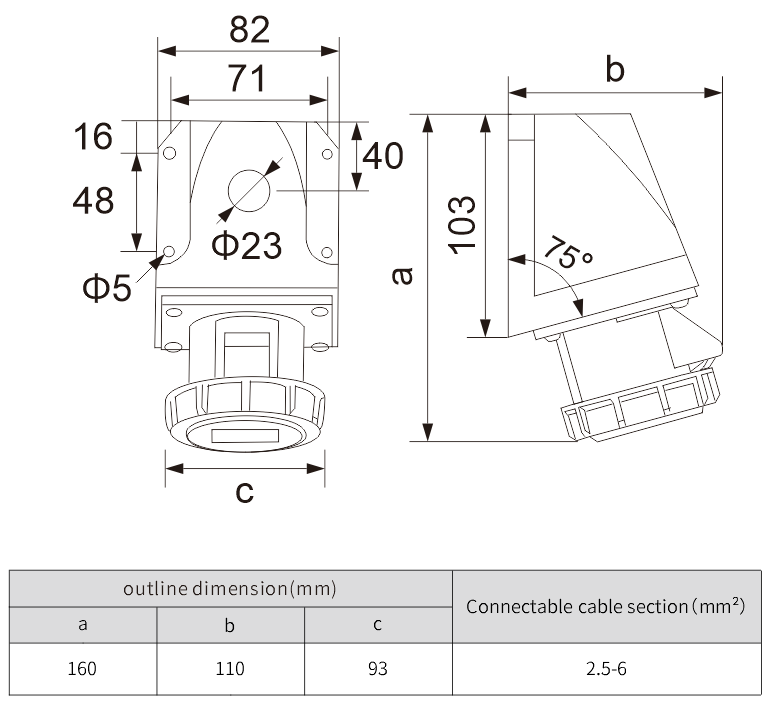

Outline installation ruler diagram
32A 2P+E 6H 200-250V Protection degree IP67
