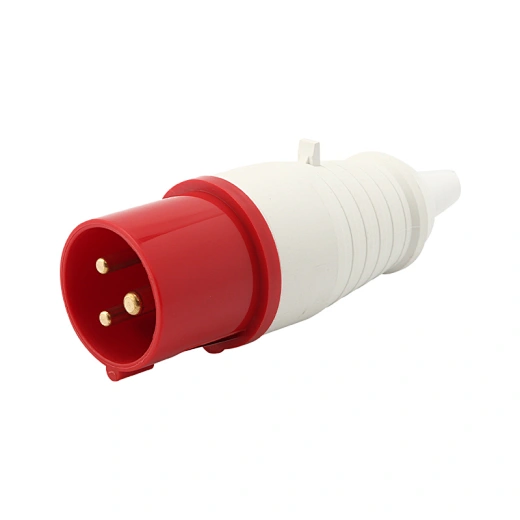

This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP1-013L-9 3pin 16A 380V, the plug is 2P+E, the range is 380V, and the product waterproof protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

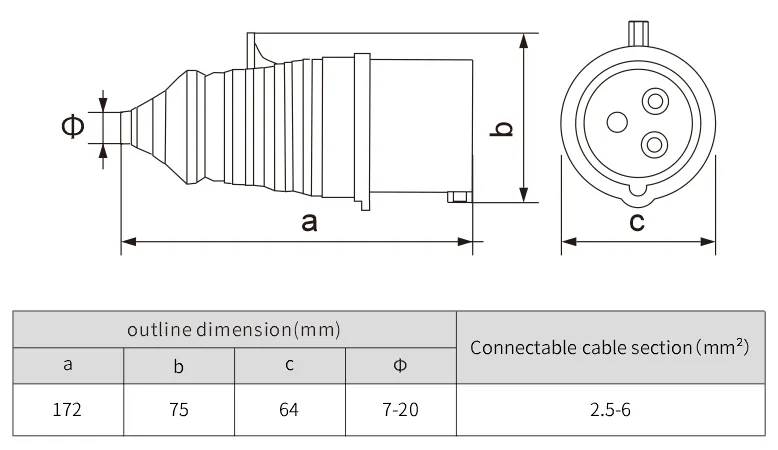

Outline installation ruler diagram
16A 2P+E 9H 380-415V Protection degree IP44
