5P32A IP44 Industrial waterproof plug
Minimum order quantity:
1 piece
Country of Origin:
industrial plug
Contact Now
add to cart

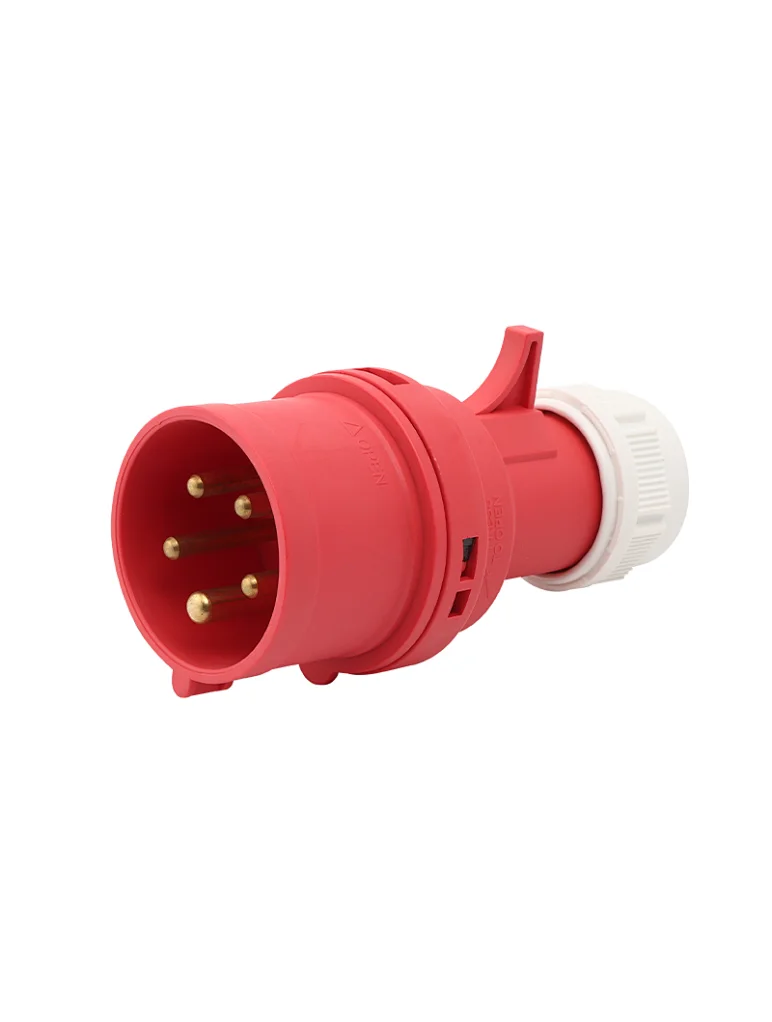

FNP2-025 5pin 32a 415v IP44 waterproof industrial plug
5p 32A IP44 environment-friendly waterproof aviation plug
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
industrial plug mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-025 5pin 32a 415v industrial plug, the plug is 3P+N+E, the range is 415V, and the product protection level is IP44 waterproof.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
industrial plug technical feature
· Rated current: 32A
· Rated voltage: 415V
· Protection degree: IP44 waterproof
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N
Industrial plug waterproof installation ruler diagram
