Electrical Outdoor Box: Features, Types, Trends and more
An Electrical Outdoor Box, also known as an outdoor electrical enclosure or weatherproof electrical box, is a protective casing used to house electrical components and wiring that are installed outdoors or in environments exposed to harsh weather conditions. These boxes provide crucial protection against the elements, ensuring the safety and longevity of electrical systems and components.
Electrical outdoor boxes come in various sizes, materials, and designs to accommodate different types of electrical systems, including circuit breakers, outlets, power meters, and more. They are built to withstand exposure to moisture, dust, corrosion, UV radiation, and extreme temperatures, making them ideal for outdoor electrical installations in both residential and commercial applications.
The primary function of an Electrical Outdoor Box is to safeguard electrical components from the damaging effects of the environment while ensuring safe operation and easy access. Below are the core functions these boxes serve:
Weather Protection:
Electrical outdoor boxes are designed to protect electrical components from moisture, rain, and snow, preventing rust, corrosion, and short circuits. This is especially critical in outdoor environments where weather conditions can fluctuate rapidly.
Electrical Safety:
These enclosures ensure that electrical connections and circuits are housed safely, reducing the risk of electric shock, fire hazards, or malfunctions due to environmental exposure. Weatherproofing and sealing mechanisms protect against electrical failures caused by water ingress or dust buildup.
Durability in Harsh Conditions:
Outdoor electrical boxes are engineered to withstand extreme temperatures, UV rays, and physical impacts from accidental bumps, ensuring that electrical components remain functional for longer periods.
Code Compliance:
Many outdoor electrical installations are required to meet local electrical codes and regulations. Electrical outdoor boxes ensure compliance with safety standards, such as those outlined by the National Electrical Code (NEC) or Underwriters Laboratories (UL).
Accessibility for Maintenance:
Designed with removable covers or hinged doors, electrical outdoor boxes allow easy access for maintenance, upgrades, and inspections. This facilitates the upkeep of electrical components and systems while ensuring that the installation remains up to code.
When selecting an Electrical Outdoor Box, it's important to consider several features that determine its performance, durability, and suitability for specific applications. Here are the key features to look for:
Weatherproof Construction:
One of the primary features of an electrical outdoor box is its weatherproof design. These boxes are built with materials that can resist rain, snow, high humidity, and other environmental factors. The box should have an Ingress Protection (IP) rating of at least IP65 or higher to ensure complete protection from water jets and dust.
Plastic Enclosures: Made from high-density polyethylene (HDPE) or polycarbonate, these boxes are lightweight, durable, and resistant to corrosion.
Metal Enclosures: Made from materials such as stainless steel or aluminum, metal boxes are strong, durable, and offer excellent protection against physical impacts.
UV Resistance:
Outdoor boxes must be able to withstand prolonged exposure to UV radiation from sunlight without deteriorating, becoming brittle, or fading. UV-resistant coatings or UV-stabilized materials are often used to enhance the box's longevity and appearance.
Corrosion Resistance:
Whether constructed from stainless steel, galvanized steel, or plastic, the box should be resistant to rust and corrosion, especially if exposed to saltwater environments or chemical vapors. Stainless steel and powder-coated metal are common materials known for their corrosion resistance.
Seals and Gaskets:
The presence of high-quality seals and gaskets around the box's doors and covers ensures that the electrical components inside remain protected from dust, dirt, and moisture. Rubber gaskets or silicone seals are often used to create airtight and watertight enclosures.
Mounting Options:
Electrical outdoor boxes come with a variety of mounting options, including surface-mount, flush-mount, or pole-mount configurations. Choose a box with mounting options that best suit the intended installation environment and ensure a secure attachment to walls, posts, or other surfaces.
Locking Mechanisms:
Many outdoor boxes come with lockable covers or latches to secure the box and prevent unauthorized access. This feature is especially important in commercial or industrial applications, where safeguarding the electrical equipment from tampering is essential.
Size and Capacity:
Electrical outdoor boxes are available in different sizes to accommodate various electrical components. Ensure that the box you choose has adequate space to house the necessary circuit breakers, fuses, meters, wiring, and other components while allowing for proper air circulation and cooling.
Ventilation:
Some outdoor boxes feature built-in ventilation options, such as louvered panels or air vents, to allow airflow and prevent overheating of internal components. Proper ventilation is especially important for systems that generate heat, such as power distribution systems or solar power systems.
Code Compliance and Certifications:
Ensure the electrical outdoor box meets relevant safety standards and certifications. Look for UL (Underwriters Laboratories) listings and NEMA (National Electrical Manufacturers Association) ratings that guarantee the box's quality and compliance with industry standards for outdoor use.
Color and Aesthetic Options:
While color may not always be a functional requirement, some outdoor boxes come in a variety of colors for aesthetic purposes or to match the surroundings. Neutral colors like gray, black, or white are common choices, as they blend well with most outdoor environments.
| Feature | Description |
|---|---|
| Weatherproof Construction | Designed to protect electrical components from rain, snow, humidity, and environmental factors. Typically made from plastic (HDPE, polycarbonate) or metal (stainless steel, aluminum). |
| UV Resistance | Built to resist UV radiation from sunlight, preventing deterioration, fading, and brittleness over time. Ensures longevity in outdoor environments. |
| Corrosion Resistance | Made from corrosion-resistant materials like stainless steel or coated metals, ideal for environments with high moisture or salt exposure. |
| Seals and Gaskets | Equipped with high-quality seals (rubber or silicone) to ensure airtight and watertight protection from dust and moisture ingress. |
| Mounting Options | Available in various mounting configurations, including surface-mount, flush-mount, and pole-mount, to accommodate different installation environments. |
| Locking Mechanisms | Lockable covers or latches to prevent unauthorized access and safeguard electrical components, especially in commercial or industrial settings. |
| Size and Capacity | Comes in different sizes to fit various electrical components, ensuring adequate space for circuit breakers, meters, wiring, and proper ventilation. |
| Ventilation | Some models feature air vents or louvered panels for improved airflow and to prevent overheating of internal components. |
| Code Compliance and Certifications | Meets UL listings, NEMA ratings, and relevant safety standards, ensuring compliance with local electrical codes and regulations for outdoor use. |
| Color and Aesthetic Options | Available in neutral colors (gray, black, white) that blend well with outdoor environments. Color options are available for aesthetic purposes. |
Electrical outdoor boxes, also known as weatherproof electrical enclosures, are essential components designed to house and protect electrical wiring, devices, and components in outdoor environments. These boxes are engineered to withstand the rigors of weather exposure, providing a safe and reliable housing for electrical systems. There are various types of outdoor electrical boxes, each with its unique features and specific applications.
1. Weatherproof Electrical Boxes
Description:
Weatherproof electrical boxes are designed to provide maximum protection against outdoor elements, such as rain, snow, and dust. These boxes are equipped with tight seals and durable materials that prevent the ingress of moisture and debris, ensuring the safety and reliability of electrical components housed inside.
Applications:
Outdoor Lighting: Ideal for housing circuit breakers or outlets that power outdoor lighting systems.
Power Distribution: Used in residential and commercial settings to distribute power to outdoor circuits, such as garden lighting or security systems.
Landscape and Garden Projects: These boxes are often used for low-voltage landscape lighting, irrigation systems, or water features.
2. NEMA Rated Electrical Boxes
Description:
NEMA (National Electrical Manufacturers Association) ratings classify electrical enclosures based on their ability to protect electrical components from external factors. NEMA-rated outdoor boxes are designed for specific environmental conditions and are commonly used in harsh industrial environments.
NEMA 3R: For outdoor use, provides protection against rain, snow, and sleet. Ideal for electrical equipment in outdoor environments.
NEMA 4X: Corrosion-resistant boxes designed for protection against water splashes, hose-directed water, and corrosion. Often used in food processing, chemical plants, and marine applications.
Applications:
Industrial Settings: Used to protect sensitive electrical components in factories, warehouses, or heavy machinery environments.
Solar Power Systems: Commonly used to house solar inverters, power converters, and batteries in solar energy systems.

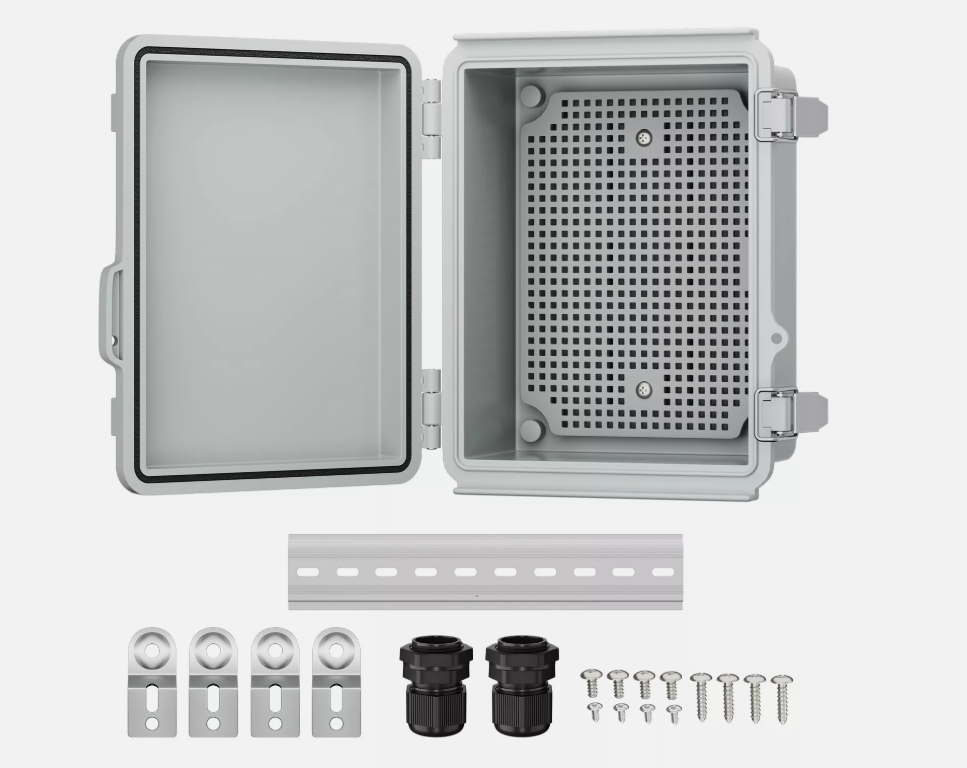

3. Plastic Electrical Outdoor Boxes
Description:
Plastic electrical boxes, typically made of polycarbonate or high-density polyethylene (HDPE), are lightweight, corrosion-resistant, and cost-effective. These boxes offer protection against weather elements and are particularly suitable for low to moderate impact environments.
Applications:
Residential Use: Ideal for housing outlets and switches in garden lighting, outdoor fans, or patio heaters.
Small Outdoor Projects: These boxes are often used in DIY or small-scale outdoor electrical installations, including Christmas lights, holiday decorations, and portable outdoor equipment.
Low Voltage Systems: Perfect for low voltage applications such as security cameras, outdoor speakers, or motion sensors.

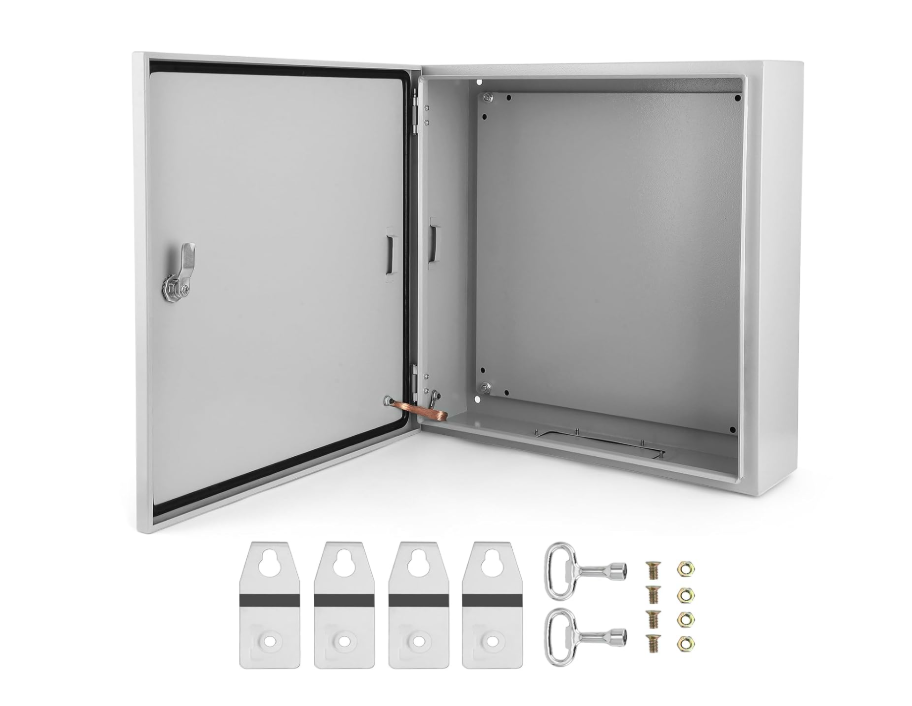

4. Metal Electrical Outdoor Boxes
Description:
Metal outdoor electrical boxes are often made from stainless steel, galvanized steel, or aluminum, providing heavy-duty protection against external threats such as physical impact, vandalism, or extreme weather. These boxes are durable and long-lasting, offering excellent corrosion resistance for outdoor use.
Applications:
Heavy-Duty Applications: Used in industries such as mining, manufacturing, and energy where electrical systems need to be protected from harsh conditions.
Public Spaces: Ideal for use in street lighting or outdoor communication systems, where durability and security are paramount.
Marine Environments: Metal boxes, particularly stainless steel, are often used in boats, offshore rigs, or marine installations to resist corrosion from saltwater exposure.
5. Junction Boxes for Outdoor Use
Description:
Junction boxes are designed to house electrical connections between wires or cables. These boxes provide a secure and protected environment for making electrical connections in outdoor installations. Junction boxes are available in both plastic and metal options and often feature a gasket seal to prevent water ingress.
Applications:
Outdoor Wiring Systems: Commonly used for connecting outdoor lighting circuits, power outlets, or security cameras.
Splicing Electrical Cables: Used to join two or more cables in solar systems, landscape lighting, or irrigation systems.
6. Pull Boxes
Description:
Pull boxes are larger electrical enclosures designed to house electrical splices and allow for the pulling and splicing of cables. These boxes are often used in long outdoor wiring runs, such as underground or overhead electrical installations.
Applications:
Long-Distance Cable Runs: Often used in underground power distribution systems, street lighting, or commercial buildings.
Electrical Maintenance: Allows easy access for maintenance and repairs of large-scale electrical systems, such as power grids or public infrastructure.
7. Meter Boxes
Description:
Meter boxes are specially designed to house electricity meters and distribution boards. These boxes ensure that electrical meters are safely protected from the elements while providing easy access for utility companies or property owners to monitor electricity usage.
Applications:
Residential Installations: Used to house electric meters for homes and apartments.
Commercial Installations: Used for metering large commercial properties or industrial facilities where electricity usage needs to be monitored.
8. Disconnect Boxes
Description:
Disconnect boxes, or disconnect switches, are electrical enclosures used to isolate electrical equipment for maintenance or safety. These boxes contain a disconnect switch that can safely cut off power to specific systems, ensuring that work can be carried out safely.
Applications:
Solar Power Systems: Used in solar panel installations to disconnect the inverter or batteries for maintenance.
HVAC Systems: Provides safety disconnects for heating, ventilation, and air conditioning systems.
Industrial Equipment: Used to isolate electrical power to large machinery for service or troubleshooting.
| Type of Electrical Outdoor Box | Description | Applications |
|---|---|---|
| Weatherproof Electrical Boxes | Designed to protect against rain, snow, and dust, providing maximum weather protection. | - Outdoor lighting - Power distribution for outdoor circuits - Landscape and garden projects |
| NEMA Rated Electrical Boxes | Classified based on environmental conditions (e.g., NEMA 3R, NEMA 4X) to protect against water, dust, and corrosion. | - Industrial settings - Solar power systems - Heavy-duty applications |
| Plastic Electrical Outdoor Boxes | Lightweight, corrosion-resistant, made from materials like polycarbonate or HDPE. | - Residential use (outdoor outlets, lighting) - Small outdoor projects (holiday decorations) - Low voltage systems (security cameras, motion sensors) |
| Metal Electrical Outdoor Boxes | Heavy-duty boxes made from stainless steel, galvanized steel, or aluminum, offering robust protection. | - Heavy-duty industrial applications - Public spaces (street lighting, communication systems) - Marine environments |
| Junction Boxes for Outdoor Use | Designed to house electrical connections between wires or cables, preventing moisture ingress. | - Outdoor wiring systems - Electrical cable splicing in solar systems, lighting, irrigation |
| Pull Boxes | Larger enclosures designed for splicing and pulling cables in long electrical runs. | - Underground power distribution systems - Street lighting - Large-scale electrical systems |
| Meter Boxes | Boxes that house electricity meters and distribution boards for monitoring usage. | - Residential electricity meters - Commercial meter installations |
| Disconnect Boxes | Enclosures containing a disconnect switch to safely isolate electrical equipment for maintenance. | - Solar panel systems - HVAC systems - Industrial equipment for maintenance |
When it comes to electrical installations, one of the key considerations is whether to use indoor or outdoor electrical boxes. Both types of boxes serve the same primary function—housing electrical components such as switches, outlets, and circuit breakers—but they are designed for different environments and conditions. Understanding the differences between indoor and outdoor electrical boxes is crucial for ensuring safety, compliance with regulations, and long-term durability of your electrical systems.
1. Purpose and Environment
Indoor Electrical Boxes:
Purpose: Indoor electrical boxes are designed to house electrical components that are installed inside buildings or structures. They provide basic protection against everyday conditions, such as dust and minor impacts.
Environment: Typically used in dry, temperature-controlled environments that are shielded from moisture and extreme weather conditions. They are ideal for areas like living rooms, offices, and bedrooms.
Outdoor Electrical Boxes:
Purpose: Outdoor electrical boxes are built to house electrical components exposed to the elements. They offer enhanced protection against environmental hazards such as rain, snow, high humidity, and temperature fluctuations.
Environment: Used in outdoor applications where electrical systems are exposed to moisture, extreme weather, and physical impact. These boxes are common in settings like gardens, rooftop installations, and industrial sites.
2. Material Construction
Indoor Electrical Boxes:
Materials: Typically made from plastic (polycarbonate, PVC) or sometimes light-gauge metal. These materials are sufficient for indoor use, providing protection against dust and physical damage but not offering full weather resistance.
Durability: Indoor boxes are not built to withstand heavy exposure to moisture, UV rays, or corrosive elements, so they should not be used outdoors.
Outdoor Electrical Boxes:
Materials: Outdoor boxes are made from more durable and weather-resistant materials, such as stainless steel, galvanized steel, aluminum, or high-density polyethylene (HDPE). These materials can resist water, UV radiation, and extreme temperatures, providing long-term protection for the electrical components inside.
Weatherproofing: Outdoor boxes are equipped with seals, gaskets, and reinforced covers to prevent water ingress and dust. These boxes often feature NEMA ratings (e.g., NEMA 3R, NEMA 4X) indicating their suitability for specific environmental conditions.
3. Weather Protection
Indoor Electrical Boxes:
Protection: Indoor boxes provide basic protection against dust and minor physical damage, but they are not designed to withstand water or moisture. They are suitable for dry, controlled environments.
Limitations: These boxes are not equipped with the necessary seals or materials to protect against the elements that outdoor installations face.
Outdoor Electrical Boxes:
Protection: Designed to protect electrical components from rain, snow, humidity, extreme temperatures, and UV exposure. Outdoor electrical boxes have advanced weatherproofing features like sealed lids, gaskets, and rainproof design to ensure that water and moisture do not reach sensitive electrical components.
Ingress Protection (IP): Outdoor boxes are rated with Ingress Protection (IP) levels (e.g., IP65, IP66) to indicate how well they protect against dust and water. Boxes rated IP65 offer dust-tight protection and protection against low-pressure water jets, making them suitable for outdoor use.
4. Durability and Strength
Indoor Electrical Boxes:
Durability: Indoor boxes are typically lightweight and designed for environments where they will not face extreme wear or physical damage. While they are durable enough for typical household use, they may not withstand significant physical impacts or harsh conditions.
Applications: Suitable for locations like interior walls, ceilings, and other areas that do not experience heavy physical stress or exposure to outdoor elements.
Outdoor Electrical Boxes:
Durability: Outdoor electrical boxes are built for heavy-duty use, with reinforced construction to withstand impacts, abrasions, and harsh weather conditions. They are also resistant to corrosion and UV degradation, making them perfect for long-term outdoor use.
Applications: Used in applications like solar installations, garden lighting, power meters, and industrial machinery, where environmental protection and durability are crucial.
5. Installation and Accessibility
Indoor Electrical Boxes:
Installation: These boxes are typically easier to install as they do not require specialized sealing or reinforcement for weather protection. They are often mounted flush with the wall or recessed into the surface.
Accessibility: Easy to access and maintain, as they are placed in dry, controlled environments where issues like water damage or corrosion are unlikely.
Outdoor Electrical Boxes:
Installation: Outdoor boxes require more attention to weatherproofing during installation, such as ensuring the gaskets and seals are correctly fitted. They may be mounted on the surface or pole-mounted, and installation may require extra care to ensure water protection.
Accessibility: Outdoor boxes may be harder to access due to their placement in outdoor environments or the need for protective locks. They may require regular maintenance to ensure that the seals and covers are intact, especially in harsh weather conditions.
6. Cost and Regulations
Indoor Electrical Boxes:
Cost: Generally less expensive than outdoor boxes due to their simpler design and less rugged materials. The cost depends on the size, material, and design features.
Regulations: Indoor electrical boxes need to meet National Electrical Code (NEC) standards, but these standards are usually less stringent compared to those for outdoor electrical boxes. UL listing and certification are common requirements.
Outdoor Electrical Boxes:
Cost: Outdoor boxes tend to be more expensive due to the use of weather-resistant materials, advanced seals, and NEMA ratings for protection against environmental factors.
Regulations: Outdoor electrical boxes are subject to stricter regulations, including NEC codes for outdoor installations, as well as UL ratings, NEMA standards, and weatherproof certifications. Compliance with these standards ensures that the box will provide adequate protection and safety.
| Aspect | Indoor Electrical Boxes | Outdoor Electrical Boxes |
|---|---|---|
| Purpose and Environment | Designed for indoor use in dry, temperature-controlled environments. | Built for outdoor use, exposed to weather elements like rain, snow, and extreme temperatures. |
| Material Construction | Made from plastic (polycarbonate, PVC) or light-gauge metal. | Made from durable, weather-resistant materials like stainless steel, aluminum, or HDPE. |
| Weather Protection | Offers protection against dust and minor impacts, not against moisture or rain. | Provides weatherproofing, with sealed lids and gaskets for water and dust protection. |
| Durability and Strength | Lightweight, suitable for indoor use, less resistant to physical impacts. | Designed for heavy-duty protection, can withstand impacts, abrasion, and harsh conditions. |
| Installation and Accessibility | Easier to install in dry environments, flush-mount or recessed installations. | Requires more care in installation for proper weatherproofing, may be mounted on surfaces or poles. |
| Cost | Generally less expensive due to simpler design and materials. | More expensive due to weather-resistant materials and advanced sealing mechanisms. |
| Regulations and Standards | Must comply with NEC standards for indoor electrical installations, UL listing. | Subject to stricter regulations, including NEC for outdoor installations, UL, NEMA ratings, and weatherproof certifications. |
| Applications | Suitable for indoor electrical systems (outlets, lights, switches). | Suitable for outdoor electrical systems (garden lighting, solar panels, industrial equipment). |
Installing an Electrical Outdoor Box is essential for protecting electrical components from environmental factors such as rain, dust, and extreme temperatures. Whether you're installing a weatherproof junction box, meter box, or NEMA-rated electrical enclosure, the correct installation ensures safety, reliability, and compliance with regulations.
1. Importance of Proper Installation
Before diving into the installation process, it's essential to understand why the installation of an Electrical Outdoor Box is so important:
Protection from Weather: Electrical outdoor boxes protect circuits and wiring from rain, moisture, dust, and extreme temperatures.
Safety Compliance: A correctly installed box ensures safety and meets local electrical codes, preventing hazards like electrical fires and short circuits.
Durability: Outdoor boxes are built to withstand the wear and tear caused by external conditions, such as UV radiation, corrosion, and physical impacts.
2. Preparing for Installation
Proper preparation is key to a smooth installation process. Here's what you need to do before starting:
Tools and Materials Required:
Electrical Outdoor Box (choose the right size and type for your application)
Mounting Brackets or Hardware (screws, bolts, anchors)
Power Drill and Drill Bits
Screwdriver (manual or power)
Level (to ensure proper alignment)
Wire Strippers and Crimping Tools
Sealant (if necessary)
Voltage Tester (for safety)
Safety First:
Turn Off Power: Before beginning any electrical work, always turn off the power supply at the main circuit breaker to avoid the risk of electric shock.
Check Local Codes: Ensure that the outdoor box complies with your local electrical codes (NEC, UL, NEMA, etc.) and follows the necessary weatherproofing standards.
3. Choosing the Right Location for Installation
Choosing the correct location for your electrical outdoor box is crucial for its functionality and safety:
Accessibility: The box should be easily accessible for maintenance and inspections. Avoid placing it in areas that are hard to reach or prone to excessive dirt buildup.
Environmental Protection: Select a location that offers the best protection from environmental elements. Ensure that the box is placed in an area with minimal exposure to water, moisture, and UV radiation.
Height and Positioning: Mount the box at an appropriate height, ensuring that the electrical components inside are not exposed to excessive water pooling or ground contact.
4. Mounting the Electrical Outdoor Box
Step 1: Marking the Mounting Holes
Use a level to ensure the box will be mounted straight.
Mark the positions for the mounting screws or anchors on the wall or post where the box will be installed.
Step 2: Drilling Holes
Use a power drill to drill pilot holes for the mounting screws or bolts. The size of the drill bit should match the diameter of the anchors or screws you plan to use.
For metal enclosures, a metal drill bit should be used to avoid damaging the box or the mounting surface.
Step 3: Installing Mounting Brackets or Anchors
Insert mounting brackets or anchors into the drilled holes. Use expansion anchors if you're mounting the box onto concrete or brick surfaces.
Tighten the mounting hardware into place, ensuring the box is securely fastened and remains stable.
Step 4: Mounting the Box
Carefully attach the electrical outdoor box to the wall or post using the screws or bolts. Ensure the box is level and securely mounted to prevent shifting or movement.
5. Wiring the Electrical Outdoor Box
Once the box is securely mounted, it's time to wire the electrical components inside. Here's how to properly wire the outdoor box:
Step 1: Preparing the Wiring
Strip the wires: Use wire strippers to remove the insulation from the ends of the wires, leaving enough length for easy connections.
If necessary, use crimping tools to attach wire connectors or terminals to the wires.
Step 2: Connecting the Wires
Follow the manufacturer's wiring diagram for your specific box. Connect the incoming power to the main terminal block or circuit breakers.
For grounding, ensure that the ground wire is connected to the grounding terminal inside the box and that it is properly bonded to the ground of the electrical system.
For outlet boxes, connect the live (hot), neutral, and ground wires to the corresponding terminals in the box.
Step 3: Securing the Wiring
Use wire nuts or screw terminals to secure the wires in place. Ensure that no wires are exposed or improperly connected.
Organize the wiring inside the box, using cable ties or other methods to prevent tangling or damage.
6. Sealing the Electrical Outdoor Box
Weatherproofing is crucial for outdoor electrical boxes to ensure they are protected from moisture, dust, and extreme temperatures. Here’s how to seal the box:
Gaskets: Make sure the box's gaskets are properly seated to provide an airtight and watertight seal.
Sealant: Apply silicone sealant around the edges of the box cover or seams to prevent water from seeping into the box. Be sure to use a high-quality, outdoor-rated sealant.
7. Finalizing the Installation
Step 1: Closing the Box
Close the cover or door of the electrical box, ensuring that it is tightly secured. Use a lock or latch if the box requires additional security.
Step 2: Testing the System
Turn the power back on at the circuit breaker and test the electrical system to ensure that everything is working as expected.
Use a voltage tester to check for proper voltage levels and make sure the connections are stable.
Step 3: Final Inspection
Double-check the mounting and seals to ensure everything is installed correctly and securely.
Inspect the box for any signs of improper sealing or loose connections that may compromise safety.
8. Maintenance and Care
Once the electrical outdoor box is installed, ongoing maintenance will ensure that it remains effective and safe:
Inspect regularly for wear or damage to the seals, gaskets, or wiring.
Clean the box periodically to remove debris or dirt that could affect the functionality.
Check for any signs of corrosion or moisture buildup, especially around the wiring and terminals.
Protecting your electrical outdoor box is critical for ensuring the longevity, reliability, and safety of your electrical systems. Since these boxes are exposed to harsh environmental conditions, protecting them from external factors like moisture, UV rays, and physical damage is crucial.
1. Use High-Quality, Weatherproof Materials
Choose durable materials like stainless steel, aluminum, or high-density polyethylene (HDPE) for the box. These materials are resistant to rust, corrosion, and UV degradation, making them ideal for outdoor use.
Ensure that the box is equipped with gaskets or silicone seals to prevent water ingress.
2. Apply Sealants
Silicone sealants are essential to keep the box watertight. Apply a high-quality outdoor-rated sealant around the box’s edges, especially around seams and covers, to prevent moisture from entering.
Check seals regularly for wear and reapply sealant as needed.
3. Install Proper Ventilation
If the box houses components that generate heat (like circuit breakers or inverters), ensure it has proper ventilation to prevent overheating.
Install ventilation holes with mesh filters to allow airflow while preventing dust and debris from entering.
4. Regular Cleaning
Clean the box periodically to remove dirt, leaves, or debris that could obstruct airflow or contribute to moisture buildup.
Use a soft cloth and a mild cleaning solution—avoid harsh chemicals that could degrade the material.
5. Prevent Physical Damage
Install the box in an area that is not prone to accidental physical damage (e.g., falling objects, vehicle impacts). Ensure it is securely mounted and has proper protection if exposed to potential hazards.
Use lockable covers or safety locks to prevent unauthorized access.
The replacement frequency of an electrical outdoor box depends on several factors, including material quality, environmental exposure, and wear and tear.
Durability: High-quality electrical outdoor boxes can last anywhere from 10 to 30 years, depending on the material and how well they are maintained.
Environmental Factors: Boxes exposed to harsh environments (e.g., near saltwater, frequent storms, or extreme temperatures) may need to be replaced more frequently—approximately every 10 to 15 years.
Maintenance: If the box is properly maintained, regularly cleaned, and sealed, it can last longer, reducing the need for frequent replacements.
However, it's important to inspect the box regularly for signs of corrosion, damage, or worn-out seals. If any major issues are found, replacement may be necessary even before the typical lifespan ends.
There are several indicators that it's time to replace your electrical outdoor box.
1. Physical Damage or Cracking
Cracks, dents, or chips in the box may compromise its ability to protect electrical components. This is especially dangerous if the box has been exposed to moisture, as water could seep in and cause electrical issues.
2. Signs of Corrosion or Rust
If the box is made from metal (especially steel or aluminum), signs of rust or corrosion on the surface are indicators that the box is deteriorating. Corrosion can compromise the box's protective function, leading to electrical hazards.
3. Worn-out Seals or Gaskets
The seals or gaskets around the box may degrade over time due to exposure to UV rays, heat, or moisture. If the seals no longer form a tight watertight barrier, it's time to replace the box to prevent water or dust ingress.
4. Functionality Issues
If the electrical components inside the box are malfunctioning due to water damage, physical stress, or outdated technology, it's time for a replacement.
If you notice tripped breakers, short circuits, or sparking that may be caused by a compromised box, replacing it is essential for safety.
5. Outdated Code Compliance
Electrical codes and standards may change over time, and your outdoor electrical box may no longer meet current requirements. If the box is outdated or no longer complies with NEC (National Electrical Code) or other local codes, a replacement is necessary to ensure legal and safe installation.
The installation time for an electrical outdoor box varies depending on several factors, including the type of box, the complexity of the installation, and the condition of the existing setup.
1. Basic Installation (1–2 hours):
For a simple box replacement (e.g., swapping an old junction box for a new one), it typically takes 1 to 2 hours.
The process includes mounting the box, wiring, and ensuring proper sealing. For a straightforward installation, this timeframe can be reduced, particularly for pre-installed systems.
2. Complex Installation (3–5 hours):
For installations that involve upgrading or replacing an old system with a more complex or custom box (e.g., NEMA-rated, large distribution boxes), the installation may take longer, typically 3 to 5 hours.
This can include tasks like wiring multiple circuits, mounting to difficult locations, or installing additional components (e.g., disconnect switches, circuit breakers).
3. Professional Installation (Varies):
If you're hiring a professional electrician, the installation time can vary based on the complexity of the electrical system and the location of the box. A licensed electrician can typically install an outdoor box in 2 to 4 hours, including testing and final inspection.
It's important to account for extra time if any prep work is needed, such as cutting through walls, drilling holes, or adjusting the existing wiring setup.
Selecting the right electrical outdoor box is essential for ensuring safety, efficiency, and compliance with electrical codes and regulations. Whether you're working on a residential, commercial, or industrial installation, choosing the appropriate box ensures that your electrical components are well-protected against the elements and potential hazards.
1. Determine the Purpose of the Outdoor Box
The first step in choosing the right outdoor box is to understand what purpose it will serve. Different types of electrical boxes are designed for various applications, and choosing the wrong type could compromise the safety of your electrical installation.
Junction Boxes: Used to house electrical connections and provide protection for wiring splices.
Meter Boxes: Designed to house electricity meters and distribution panels for monitoring power usage.
Enclosures for Circuit Breakers: Provide protection for circuit breakers and switches, ensuring safe operation in outdoor environments.
Weatherproof Boxes for Lighting or Outlets: Protect outdoor electrical outlets, switches, and lighting fixtures from moisture and physical damage.
2. Consider the Environmental Conditions
Electrical outdoor boxes need to be designed to withstand the specific environmental conditions they will be exposed to. Whether it’s exposure to rain, snow, heat, humidity, or corrosive elements, selecting the right materials and features will protect your electrical components.
Weatherproofing: Look for boxes that have a high NEMA rating (e.g., NEMA 3R or NEMA 4X) to ensure the box is resistant to the ingress of water, dust, and other environmental elements.
Corrosion Resistance: If the box is exposed to saltwater (e.g., near coastal areas) or harsh chemicals, consider using a stainless steel or galvanized steel enclosure for corrosion resistance.
Temperature and UV Resistance: Ensure the box can withstand high and low temperatures as well as UV exposure. This is particularly important for boxes exposed to direct sunlight or extreme weather conditions.
3. Size and Capacity of the Box
The size and capacity of the electrical box are crucial to ensure that it has enough space to house all the required components, including wiring, circuit breakers, or outlets. Selecting the right size helps avoid overcrowding, which can lead to overheating or damage.
Box Size: The box should accommodate your electrical components comfortably without excessive strain. If you're installing multiple devices or making multiple connections, opt for a larger box.
Future Expansion: Consider whether the box allows for future expansion, such as adding more outlets, circuit breakers, or other electrical components.
4. Material and Durability
The material of the electrical box directly impacts its durability and performance in outdoor environments. The most common materials include:
Plastic Boxes: Lightweight, non-corrosive, and typically used for light-duty outdoor applications. These boxes are resistant to water and dust but may not be suitable for heavy-duty industrial applications.
Metal Boxes: More durable and can withstand physical impacts and environmental stresses. Aluminum and stainless steel are particularly effective for outdoor environments, offering excellent weatherproofing and corrosion resistance.
Composite Boxes: Made from materials like fiberglass or high-density polyethylene (HDPE), these boxes offer a balance between durability, weight, and resistance to environmental factors.
5. Compliance with Standards and Codes
Before selecting an electrical outdoor box, ensure that it meets the necessary industry standards and local electrical codes:
NEC (National Electrical Code): The box must comply with the relevant NEC guidelines for outdoor installations to ensure safety and code compliance.
UL (Underwriters Laboratories): A UL listed box ensures that the product has been tested for safety and performance.
IP and NEMA Ratings: The box should have an appropriate NEMA or IP (Ingress Protection) rating based on its intended use. For example, a NEMA 3R box is suitable for outdoor applications, while NEMA 4X offers additional protection against corrosion.
6. Easy Installation and Maintenance
The installation process and ongoing maintenance of the electrical box are also important factors to consider. Opt for boxes that are:
User-Friendly: Choose boxes with easy access for wiring and connections, especially if you need to perform regular maintenance or upgrades.
Durable Lids and Seals: Ensure the box has strong locking mechanisms or seals to protect against tampering or accidental openings.
7. Budget and Cost Considerations
The price of an electrical outdoor box can vary greatly depending on the material, size, and features. It’s important to choose a box that offers a balance between quality and cost.
Higher-end boxes with advanced weatherproofing, NEMA ratings, and corrosion resistance may cost more but will provide long-term protection and reliability.
For budget-conscious projects, plastic enclosures may suffice for basic outdoor electrical needs, but ensure they meet the necessary durability and safety standards.
When it comes to selecting the best electrical outdoor box, choosing a reliable and trusted manufacturer is key. Fly-Dragon Electric Co., Ltd. offers high-quality electrical boxes designed to meet the most demanding outdoor conditions. Here's why you should choose us:
1. Exceptional Durability and Material Quality
We use only the best materials, including stainless steel, galvanized steel, and high-density polyethylene (HDPE), ensuring that our electrical outdoor boxes are resistant to corrosion, weather elements, and physical impacts.
2. Weatherproof and Secure Design
Our boxes come with high NEMA ratings (NEMA 3R, NEMA 4X), providing superior protection against rain, dust, and other harsh environmental factors. Our enclosures are built to keep your electrical components dry, safe, and functional in any outdoor environment.
3. Compliance with Industry Standards
All of our electrical outdoor boxes meet NEC, UL, and IP/NEMA ratings, ensuring that they comply with all safety standards and local electrical codes, providing you with peace of mind and compliance.
4. Easy Installation and Maintenance
Our boxes are designed for easy installation and maintenance. They come with clear mounting instructions, easy-to-use access panels, and secure seals, allowing for hassle-free setup and long-term reliability.
5. Customizable Solutions
Fly-Dragon Electric Co., Ltd. offers customizable outdoor electrical boxes tailored to your specific requirements. Whether you need specific sizes, colors, or unique configurations, we can provide bespoke solutions that match your needs.
6. Competitive Pricing
We provide cost-effective electrical boxes without compromising on quality. By choosing Fly-Dragon Electric Co., Ltd., you get durable, high-quality outdoor electrical boxes at affordable prices.
7. Trusted Industry Leader
With years of experience in the electrical box manufacturing industry, Fly-Dragon Electric Co., Ltd. is a trusted name, known for its commitment to quality, innovation, and customer satisfaction. We deliver products that you can rely on, backed by excellent customer service and after-sales support.
As the world continues to evolve, so do the technologies and products we use. The electrical industry, particularly when it comes to outdoor electrical installations, has seen several innovations and trends that improve performance, durability, and safety. These innovations are driven by advancements in materials, manufacturing processes, and the growing demand for more sustainable and efficient solutions.
1. Smart Electrical Outdoor Boxes: Integration with IoT
The rise of the Internet of Things (IoT) has had a significant impact on electrical outdoor boxes. Smart electrical boxes are now being developed to integrate with IoT systems, enabling remote monitoring and control.
Key Features of Smart Electrical Boxes:
Remote Monitoring: Users can monitor the status of circuits, energy consumption, and potential faults in real-time through mobile apps or web-based platforms.
Automated Alerts: Smart boxes can send alerts for issues like overloading, overheating, or moisture ingress, helping prevent electrical failures.
Energy Efficiency: These boxes can optimize the flow of electricity and allow users to control connected systems, such as lighting, heating, or air conditioning, remotely, improving energy efficiency.
Why It's Important:
Enhanced Safety: IoT-enabled outdoor boxes can proactively detect issues before they escalate into serious problems.
Efficiency: These innovations help users monitor and manage their outdoor electrical systems more efficiently, reducing operating costs.
2. Use of Sustainable and Recyclable Materials
Environmental sustainability is increasingly important, and the electrical box industry is no exception. Manufacturers are turning to eco-friendly materials that are both durable and recyclable, contributing to the reduction of the carbon footprint.
Innovative Materials:
Recycled Plastics: High-performance plastics made from recycled materials offer the same weatherproofing and impact resistance as virgin plastics while reducing waste.
Biodegradable Polymers: Some manufacturers are experimenting with biodegradable materials that decompose naturally, reducing the environmental impact once the product reaches the end of its lifecycle.
Aluminum and Stainless Steel: Metal enclosures, particularly aluminum and stainless steel, remain popular due to their recyclability and ability to resist corrosion, which is essential for outdoor use.
Why It's Important:
Eco-Friendly Solutions: The push towards sustainability helps create products that are more environmentally responsible without sacrificing performance.
Reduced Waste: Recyclable materials help minimize landfill waste and promote circular economies in manufacturing.
3. Improved Weatherproofing and Durability
With outdoor electrical installations being exposed to harsh conditions, one of the most critical aspects of electrical outdoor boxes is weatherproofing and durability. New technologies and materials are making boxes more resistant to extreme weather, ensuring better protection for electrical components.
Technological Advancements in Weatherproofing:
Self-Healing Coatings: Some electrical outdoor boxes now feature self-healing coatings that repair minor scratches and abrasions, preventing corrosion and extending the lifespan of the box.
High UV Resistance: Manufacturers are now using materials with better UV resistance, ensuring that outdoor electrical boxes maintain their structural integrity when exposed to direct sunlight.
Enhanced Sealing Technologies: New gasket and sealant technologies ensure a tighter seal against moisture, dust, and other environmental contaminants. Boxes are now more effective at keeping waterproof and dustproof while maintaining ventilation.
Why It's Important:
Longer Lifespan: Improved weatherproofing and durability mean that boxes can handle extreme environments, increasing their lifespan and reliability.
Better Protection: Enhanced materials and seals offer superior protection for the electrical components inside, reducing the risk of damage or failure from external elements.
4. Modular and Customizable Designs
Another growing trend in the electrical outdoor box market is the move towards modular and customizable designs. This allows for flexibility in how the boxes are used and adapted for different applications, whether for residential, commercial, or industrial environments.
Benefits of Modular Designs:
Adaptability: Modular systems allow users to expand or reconfigure the box layout depending on changing needs, such as adding additional circuits or components.
Customization: Many manufacturers now offer customizable enclosures that can be tailored to specific size, color, or configuration requirements. This is especially useful for large-scale installations or industrial applications.
Ease of Installation: Modular designs simplify the installation process, allowing electricians to quickly set up or upgrade systems as necessary.
Why It's Important:
Flexible Solutions: Customizable outdoor boxes provide flexibility to meet the specific needs of any electrical installation, making them ideal for both large and small projects.
Efficient Setup: Modular designs reduce installation time and effort, making the process more efficient and cost-effective.
5. Advanced Safety Features
With safety always a primary concern in electrical installations, manufacturers are continually adding advanced safety features to electrical outdoor boxes. These innovations aim to reduce the risk of electrical hazards, including fire, shock, and short circuits.
Key Safety Features:
Arc Fault Protection: Some boxes now come equipped with arc fault circuit interrupters (AFCIs) that detect arcing (an electrical discharge) and automatically cut the power to prevent fires.
Ground Fault Protection: Ground fault circuit interrupters (GFCIs) are increasingly being integrated into outdoor boxes, offering protection against electric shock by shutting off power when a ground fault is detected.
Tamper-Resistant Designs: Many boxes are now equipped with tamper-resistant locks, safety covers, and gaskets, which prevent unauthorized access and reduce the risk of accidental contact.
Why It's Important:
Enhanced Safety: These features reduce the likelihood of electrical accidents, providing a safer environment for both users and electrical systems.
Compliance: Advanced safety features ensure that installations are code-compliant and meet the required safety standards for outdoor electrical systems.
Electrical outdoor boxes are critical components for ensuring safe, reliable, and protected electrical systems in outdoor environments. Whether you're installing a simple outdoor outlet or setting up a complex industrial electrical system, the right outdoor box ensures that your electrical components are shielded from the elements, moisture, and physical damage.
By understanding the various types, materials, installation processes, and innovative features available, you can make informed decisions that prioritize safety, performance, and long-term durability. From weatherproofing to smart integration, modern outdoor boxes offer more than just protection—they ensure that your electrical systems operate efficiently and safely for years to come.
As technology continues to evolve, the future of electrical outdoor boxes will see even more advancements, such as IoT integration, eco-friendly materials, and enhanced safety features. These innovations will continue to provide better solutions for residential, commercial, and industrial applications, ensuring that electrical systems meet the growing demand for sustainability and smart functionality.
When choosing an electrical outdoor box, always prioritize the specific needs of your installation and ensure compliance with local safety regulations and standards. With the right electrical box, you're not only protecting your equipment but also creating a safer, more efficient electrical environment.
Stay ahead of the curve and choose the best in quality and innovation—because when it comes to outdoor electrical installations, protection and reliability should always come first.
+86-577-62731897
shireen@nante.com
No.688 chezhan Road, Liushi town, Wenzhou, China
Copyright © 2024 Fly-Dragon Electrical Co., Ltd. All Rights Reserved.
Industrial Plug Socket Distribution Box Factory
浙公网安备33038202003041号
Privacy
English
Español
Português
Deutsch
