Weatherproof Distribution Boxes: Features, Applications, Future Trends and more
Home / News / Industry News / Weatherproof Distribution Boxes: Features, Applications, Future Trends and more A weatherproof distribution box is an essential electrical enclosure designed to protect and house electrical distribution equipment in harsh outdoor environments. These boxes are built to safeguard electrical circuits, controls, and connections from external elements such as rain, dust, wind, and extreme temperatures. Commonly used in industrial, commercial, and residential applications, weatherproof distribution boxes ensure that electrical systems remain safe, functional, and durable despite exposure to the elements.
Weatherproof distribution boxes are integral to maintaining the integrity and longevity of electrical infrastructure. Whether it is outdoor lighting systems, electrical connections in machinery, or circuit breakers in telecommunications towers, these boxes provide necessary protection to ensure smooth and safe operation.
Weatherproof distribution boxes are designed with specific features to protect electrical components and wiring. The key features of these enclosures include:
Water and Dust Resistance: Weatherproof distribution boxes are typically constructed to meet specific IP (Ingress Protection) ratings that determine the level of protection they offer against water and dust. The higher the IP rating, the better the box is at keeping out these elements.
Durability: These boxes are built using high-quality materials like stainless steel, galvanized steel, or plastic composites to withstand physical impacts, corrosion, and wear caused by environmental factors. This helps in maintaining their integrity even in harsh weather conditions.
Temperature Resistance: Weatherproof distribution boxes are designed to operate within a wide temperature range, ensuring that the internal electrical components remain safe and functional even during extreme heat or cold.
UV Protection: Exposure to sunlight can degrade the materials of electrical enclosures. Weatherproof distribution boxes are equipped with UV-resistant coatings or materials to prevent damage from prolonged sun exposure.
Sealing Mechanisms: To maintain their weatherproof nature, these boxes are fitted with gaskets, seals, and tight-fitting covers that prevent water, dirt, and other environmental elements from entering the box.

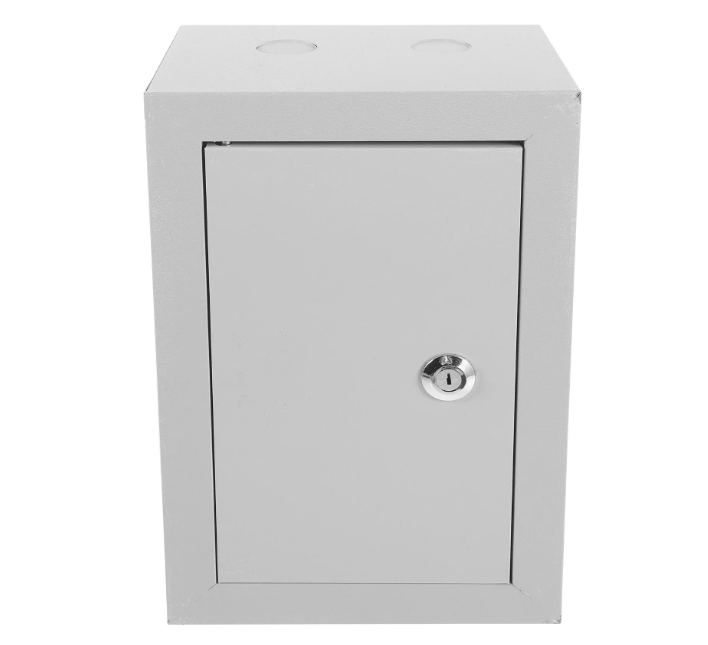

Locking and Safety Features: Many weatherproof distribution boxes feature locking mechanisms to prevent unauthorized access and to ensure the safety of the electrical system.
The primary purpose of a weatherproof distribution box is to offer protection and ensure that electrical systems can function reliably, regardless of the external conditions. Here's why these enclosures are important:
Protecting Sensitive Electrical Equipment: Exposed electrical components are susceptible to corrosion, short-circuiting, or malfunctioning due to water, humidity, or debris. Weatherproof distribution boxes help prevent such damage by creating a protective barrier around critical electrical systems.
Safety and Compliance: In many industries, weatherproof distribution boxes are essential for meeting safety standards and regulations. They help prevent electrical hazards such as shocks or fires that can occur when exposed wires or components are subjected to moisture or debris.
Longevity and Cost-Effectiveness: Weatherproof enclosures extend the lifespan of electrical systems by offering protection from environmental damage. Over time, this leads to reduced maintenance costs and the need for fewer replacements of damaged components.
Ease of Access and Organization: Weatherproof distribution boxes are often designed with an organized interior to make accessing and managing the electrical components easier. This improves efficiency and reduces the time needed for maintenance or troubleshooting.
Weatherproof distribution boxes play a vital role in ensuring the safe and efficient operation of electrical systems exposed to harsh environmental conditions. These specialized enclosures are designed to protect electrical components from external factors such as water, dust, temperature fluctuations, and UV radiation. As a result, they are used in various applications across multiple industries.
1. Outdoor Electrical Installations
Weatherproof distribution boxes are primarily used to protect outdoor electrical systems. These boxes safeguard circuit breakers, outlets, and switches from exposure to moisture, dust, and other elements, ensuring that electrical systems operate safely and reliably. Common applications include:
Outdoor lighting systems: Streetlights, landscape lighting, and floodlights all rely on weatherproof distribution boxes to keep their electrical connections safe.
Electrical outlets: In outdoor venues like parks, recreational areas, and public spaces, weatherproof boxes provide protection for outdoor power outlets used by people for various purposes.
Signage and advertising boards: Billboards, neon signs, and digital displays require weatherproof enclosures to shield the electrical wiring and circuits powering the signs from environmental wear and tear.
2. Industrial and Commercial Applications
Weatherproof distribution boxes are frequently employed in industrial and commercial environments, where electrical systems are exposed to harsh conditions like heavy machinery, dust, chemicals, and extreme weather. Key applications in these settings include:
Factories and manufacturing plants: Electrical components and control systems that manage machinery, assembly lines, and other heavy equipment are housed in weatherproof distribution boxes to ensure they remain operational in industrial environments.
Outdoor kiosks and vending machines: These self-contained units often rely on weatherproof distribution boxes to protect their internal wiring and power distribution systems.
Telecommunications and utility installations: Weatherproof boxes are critical in protecting electrical components in outdoor telecom and utility sites, where systems like power lines, communication towers, and substations are exposed to the elements.
3. Renewable Energy Systems
As renewable energy sources like solar panels and wind turbines become more common, weatherproof distribution boxes have become essential in protecting the electrical components that manage power conversion and distribution. In these applications, the boxes safeguard sensitive electrical equipment from environmental conditions and ensure that energy systems operate efficiently:
Solar energy systems: Weatherproof boxes protect the connections between solar panels, inverters, and batteries from rain, dust, and temperature extremes.
Wind turbines: These systems involve complex electrical circuitry exposed to outdoor environments, making the need for weatherproof enclosures essential to their performance.
4. Public Infrastructure and Transportation
The safe operation of electrical systems in public infrastructure and transportation networks relies heavily on weatherproof distribution boxes to prevent exposure to adverse environmental conditions. Common examples include:
Traffic lights and control systems: Weatherproof boxes protect the electrical components that control streetlights, traffic signals, and automated traffic management systems from weather-related damage.
Railway stations and bus terminals: Electrical systems in transportation hubs, such as ticket machines, lighting, and communication equipment, are housed in weatherproof boxes to ensure their functionality and safety.
5. Agricultural and Horticultural Applications
Agriculture and horticulture involve environments where weather conditions can be unpredictable. Weatherproof distribution boxes are used in several applications to keep agricultural electrical systems safe, including:
Irrigation systems: Weatherproof boxes are used to protect the electrical components that control automated irrigation systems from water damage, ensuring that crops receive adequate water without interruption.
Greenhouses and farms: In these environments, electrical systems control lighting, heating, and ventilation. Weatherproof distribution boxes ensure that these systems continue to operate smoothly in outdoor or semi-outdoor conditions.
6. Residential Applications
Although they are most commonly used in industrial and commercial environments, weatherproof distribution boxes also have a place in residential settings. Homeowners use them for the following applications:
Outdoor power outlets: For gardens, patios, and outdoor kitchens, weatherproof boxes protect electrical outlets and connections that power tools, lights, and appliances.
Swimming pools and spas: These water-adjacent areas require extra care when it comes to electrical safety. Weatherproof distribution boxes house pool and spa control panels, pumps, and lighting systems, protecting them from the elements.
7. Marine and Offshore Applications
In marine and offshore environments, where exposure to seawater, salt, and other harsh elements is prevalent, weatherproof distribution boxes are critical in protecting electrical equipment:
Boats and ships: Weatherproof boxes safeguard electrical systems that control navigation, lighting, and communications, ensuring safe operations in challenging marine conditions.
Offshore oil rigs and platforms: Electrical systems used in harsh offshore environments require robust protection against water and corrosion, making weatherproof distribution boxes a vital component of offshore energy infrastructure.
8. Temporary Event Setups
Outdoor events such as concerts, festivals, or construction sites rely on portable electrical systems. Weatherproof distribution boxes are used to protect temporary electrical circuits from the elements, ensuring power is consistently supplied to the necessary areas. These events often require fast setup and tear-down, so weatherproof distribution boxes offer an added layer of protection to prevent damage.
9. Emergency and Backup Power Systems
In case of power outages or emergencies, weatherproof distribution boxes are often used to house backup power systems. These include:
Backup generators: Electrical connections to backup generators, which provide power during emergencies, are typically housed in weatherproof boxes to ensure their functionality when needed most.
Uninterruptible power supplies (UPS): Weatherproof boxes are used to protect the sensitive electronics of UPS systems that supply power to critical infrastructure during a power failure.
Weatherproof distribution boxes are essential for housing and protecting electrical components from environmental elements such as rain, dust, moisture, and extreme temperatures. These boxes are designed to ensure that electrical circuits, switches, breakers, and other essential electrical equipment function safely and reliably in harsh outdoor conditions. There are several types of weatherproof distribution boxes, each designed for specific applications and environments.
1. Outdoor Distribution Boxes
Outdoor distribution boxes are specifically designed to withstand the challenges presented by outdoor environments. They are ideal for use in situations where electrical equipment needs to be protected from rain, wind, UV exposure, and dust. These boxes are commonly used in a variety of outdoor applications such as street lighting, power supply for outdoor events, and telecom infrastructure.
Features: Typically made from durable materials like plastic or stainless steel, outdoor distribution boxes are designed with high levels of water resistance (often meeting IP65 or higher ratings). They also include UV-resistant coatings to prevent degradation from sunlight.
Applications: Used in outdoor electrical installations, including power distribution for streetlights, security lighting systems, and control boxes for irrigation systems.
2. Industrial Distribution Boxes
Industrial weatherproof distribution boxes are built to withstand harsh environments such as factories, manufacturing plants, and construction sites. These boxes are designed to protect sensitive electrical components from water, dust, and chemicals, making them suitable for heavy-duty applications.
Features: Made from corrosion-resistant materials like galvanized steel, these boxes often feature reinforced locks and seals to protect the contents from industrial hazards. They are capable of withstanding physical impacts and are designed to endure in environments with high levels of vibration and dust.
Applications: These boxes are commonly used in factories, warehouses, and industrial equipment installations to house circuit breakers, fuses, and electrical controllers.
3. Marine-Grade Weatherproof Distribution Boxes
Marine-grade weatherproof distribution boxes are specially designed for use in marine and offshore environments where electrical systems are exposed to harsh sea conditions. These boxes are equipped with features that protect against saltwater, moisture, and corrosion.
Features: Marine-grade boxes are constructed from materials resistant to corrosion, such as marine-grade aluminum or stainless steel. They also include enhanced sealing mechanisms to keep out saltwater and moisture.
Applications: These boxes are commonly used on ships, offshore platforms, and other marine applications, where electrical components need to be protected from salty air, water splashes, and extreme weather conditions.
4. Explosion-Proof Weatherproof Distribution Boxes
Explosion-proof weatherproof distribution boxes are designed for environments where there is a risk of explosions due to flammable gases or dust. These boxes are built to contain any sparks or explosions that may occur within the box and prevent them from igniting the surrounding atmosphere.
Features: These boxes are constructed from heavy-duty materials such as cast aluminum or stainless steel, ensuring that they can withstand high pressures and prevent the escape of sparks. They also feature specialized seals and gaskets to maintain a hermetically sealed environment.
Applications: Explosion-proof distribution boxes are commonly used in industries like oil and gas, chemical plants, mining, and any other environment where flammable materials are present.
5. Telecommunication Distribution Boxes
Telecommunication distribution boxes are specifically designed to house electrical systems related to telecommunication infrastructure. These boxes protect wiring, signal systems, and control units from environmental factors that could cause operational disruption.
Features: These boxes are typically made from lightweight materials like high-impact plastic or powder-coated steel. They are designed to allow easy access to wiring and components for maintenance while keeping them secure and protected from the elements.
Applications: Used in outdoor telecommunication stations, cell towers, and satellite systems to protect vital communication systems from weather damage.
6. Solar Power Distribution Boxes
Solar power distribution boxes are used in solar energy installations to manage the distribution of electricity generated by solar panels. These boxes help protect the electrical circuits and connections from the weather and ensure that the power flows correctly to the batteries or grid.
Features: These boxes are designed with ample space for solar power components such as inverters, circuit breakers, and fuses. They are often equipped with ventilation features to prevent overheating and moisture buildup.
Applications: Primarily used in outdoor solar panel installations, both in residential and commercial solar energy systems, ensuring that electrical components are safely housed and protected from environmental conditions.
7. Junction Boxes
A junction box is a type of weatherproof distribution box used to protect and connect electrical wiring in various electrical systems. These boxes are designed to house electrical connections and provide a secure environment for splicing wires, while also protecting against external environmental factors.
Features: Junction boxes are usually compact and equipped with a sealing system that prevents water ingress. They may be made from materials like PVC, aluminum, or stainless steel to offer high resistance against corrosion and physical damage.
Applications: Junction boxes are widely used in outdoor electrical installations such as landscape lighting, water treatment plants, and renewable energy systems.
8. Meter Boxes
Meter boxes are weatherproof enclosures used to house utility meters, such as electricity, gas, or water meters, ensuring they are protected from the weather and tampering. These boxes are typically located outdoors, at the point of service entry.
Features: Meter boxes are designed to provide both weatherproofing and security, often featuring lockable doors and tamper-resistant designs. They are made from durable materials that prevent corrosion, and many have clear windows for easy reading of meters.
Applications: Used in residential, commercial, and industrial buildings to house utility meters in outdoor environments, providing protection and ensuring accurate readings.
Weatherproof distribution boxes play a critical role in protecting electrical components from harsh environmental conditions. These boxes are specifically designed to keep electrical systems safe from external factors like rain, dust, moisture, extreme temperatures, and UV radiation. By providing a durable and sealed enclosure, weatherproof distribution boxes ensure that electrical components operate efficiently and safely, regardless of weather conditions.
1. Sealing Mechanism
One of the most important features of a weatherproof distribution box is its ability to create a sealed environment. This is achieved through a combination of seals, gaskets, and tightly fitted doors or lids. The sealing mechanism prevents the entry of water, dust, dirt, and other environmental elements that could damage electrical equipment inside the box.
Gaskets and Seals: The box features rubber or silicone gaskets that form a watertight seal when the door or lid is closed. These seals help keep moisture out, ensuring that the electrical components remain dry and protected.
Locking Mechanisms: Some weatherproof boxes include locks or latches to secure the door, preventing unauthorized access and further enhancing the weatherproofing features by reducing the risk of gaps forming when the box is closed.
2. Material Construction
The materials used in the construction of weatherproof distribution boxes play a significant role in their ability to withstand extreme weather conditions. Typically, these boxes are made from corrosion-resistant materials that can endure exposure to the elements over time.
Metal Enclosures: Many weatherproof distribution boxes are made from stainless steel, aluminum, or galvanized steel, which offer high resistance to corrosion and physical wear. These materials ensure that the box can survive outdoor conditions such as rain, humidity, and salty air, making them ideal for marine and industrial environments.
Plastic Enclosures: Some weatherproof boxes are made from high-impact plastic materials that are UV resistant and capable of withstanding extreme temperatures. These are often used in less harsh environments where corrosion is less of a concern.
The choice of material impacts the box's durability, weight, and ease of installation. The material ensures that the box remains intact and functional even when exposed to severe environmental factors.
3. IP Rating (Ingress Protection)
Weatherproof distribution boxes are usually rated by their IP (Ingress Protection) rating, which indicates their ability to prevent the entry of water and solid objects. The IP rating system uses two digits: the first indicates protection against solid objects (like dust), while the second refers to water resistance.
Dust and Particle Protection: Weatherproof distribution boxes are often designed with an IP65 rating or higher, meaning they provide complete protection from dust and are resistant to water jets from any direction. Higher ratings such as IP66 and IP67 offer additional protection against heavy rain or brief submersion in water.
Water Resistance: A high IP rating ensures that no moisture can enter the box, preventing damage to the electrical components inside. Water resistance is particularly important in applications such as outdoor lighting, telecommunications, and solar power systems.
4. Ventilation and Cooling
While weatherproof distribution boxes are designed to protect components from external factors, they also need to maintain an optimal internal environment to ensure that electrical components do not overheat. Overheating can lead to malfunction or permanent damage.

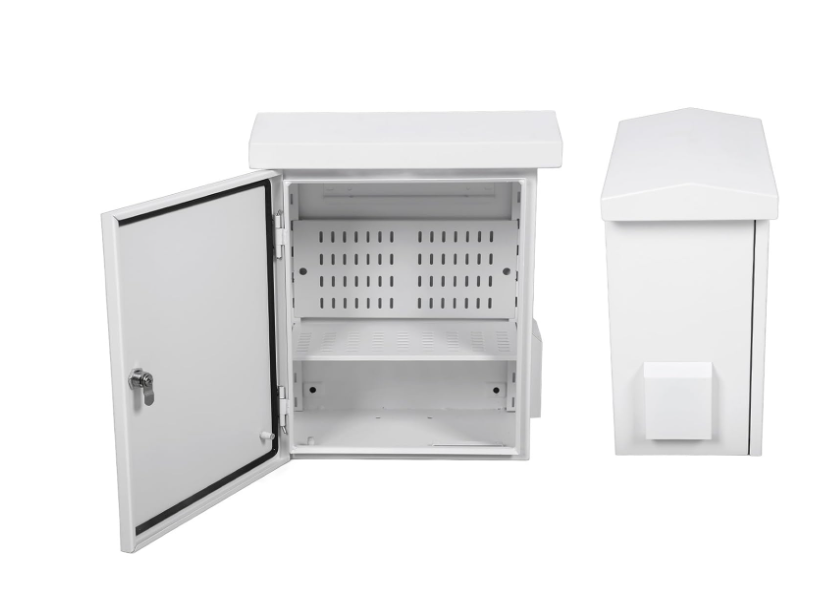

Ventilation: Many weatherproof distribution boxes feature ventilation openings or filters that allow air to circulate inside the box while still preventing water and dust from entering. This helps maintain the proper temperature inside the box, preventing overheating of sensitive electrical components like circuit breakers, fuses, and control panels.
Heat Dissipation: In some cases, weatherproof distribution boxes are designed with heat-dissipating materials or fins that allow excess heat to escape, ensuring that internal components operate within safe temperature ranges.
Proper ventilation is essential, especially in industrial applications where high-power equipment is used and excessive heat buildup can become a concern.
5. Shock and Vibration Resistance
In addition to protecting electrical components from weather, many weatherproof distribution boxes are built to withstand physical impacts. The boxes are designed to absorb shock and vibration, which can be crucial in environments with heavy machinery, construction sites, or industrial settings.
Shock Absorption: The materials used in the box's construction, along with internal shockproof features like padding or resilient mounting systems, help protect electrical components from vibrations or impacts that could otherwise cause malfunctions.
Vibration Resistance: For areas prone to vibrations, such as factories or transportation hubs, weatherproof distribution boxes are reinforced to ensure that the internal systems remain secure and undamaged even under constant mechanical stress.
6. Electrical Protection and Organization
Weatherproof distribution boxes are designed not only to protect electrical components but also to allow for the organization and safe distribution of power. The boxes typically feature compartments, mounting plates, and connectors that make it easier to organize wires, circuit breakers, and other electrical devices.
Mounting and Wiring: Inside the box, electrical components are securely mounted to prevent movement or contact with other components that could cause short circuits or other hazards. This also helps with the efficient routing of cables and connections.
Grounding and Surge Protection: Some weatherproof boxes come with grounding systems or additional surge protection features that help prevent electrical faults caused by lightning strikes, power surges, or grounding issues.
7. Easy Installation and Maintenance
One of the key benefits of weatherproof distribution boxes is that they are designed for easy installation and maintenance. Whether for residential, commercial, or industrial purposes, these boxes are user-friendly and can be mounted or installed in various locations, including poles, walls, or floor-mounted structures.
Mounting Options: Weatherproof boxes can be designed with adjustable mounting systems, allowing them to be installed in a variety of locations with ease. They may also feature removable covers or doors to facilitate quick and simple maintenance or repairs.
Maintenance Accessibility: The design of weatherproof distribution boxes typically includes features that allow for straightforward access to internal components without compromising the box's weatherproofing integrity. This makes it easier for technicians to perform regular maintenance, such as replacing circuit breakers or wiring.
Choosing the right weatherproof distribution box is crucial for ensuring the safety and reliability of your electrical systems in harsh or outdoor environments. These boxes are designed to protect electrical components from adverse weather conditions, such as rain, dust, moisture, and extreme temperatures. However, selecting the most suitable box for your specific application involves considering several factors, including the environmental conditions, the type of electrical components, and the level of protection required.
1. Understand the Environmental Conditions
The primary function of a weatherproof distribution box is to protect electrical components from external environmental factors. Therefore, understanding the environmental conditions where the box will be installed is critical in making the right choice.
Exposure to Moisture and Water: If the distribution box will be exposed to rain, splashing water, or even flooding, you will need a box with a high water resistance rating. Look for boxes with an IP65 rating or higher, which provides protection against water jets.
Dust and Debris: For environments with a lot of dust or debris, it's essential to choose a box with dust-resistant features. A IP65 or higher rating for solid particles ensures that no dust or debris can enter the box.
UV and Sun Exposure: If the box will be installed in a location that receives prolonged exposure to the sun, you need a box made of materials that can resist UV radiation. UV exposure can degrade materials over time, so UV-resistant coatings or materials like fiberglass or powder-coated steel are ideal.
Extreme Temperatures: Weatherproof boxes that will be used in extreme temperatures should be able to withstand both freezing cold and intense heat. Consider materials that maintain their integrity in various temperature ranges and allow for adequate ventilation to prevent overheating.
2. Determine the Required Protection Level
The level of protection needed depends on the type of electrical system and the risks involved in the environment. Weatherproof distribution boxes come with varying protection ratings that ensure components are safe from environmental damage.
IP Rating: The Ingress Protection (IP) rating of a distribution box determines its resistance to dust and water. A higher IP rating indicates better protection. Common ratings include IP65, IP66, and IP67, with IP67 offering the highest level of water resistance and dustproofing.
Explosion-Proof or Flame-Retardant Options: For environments that are hazardous due to explosive gases, chemicals, or flammable materials, choose explosion-proof or flame-retardant distribution boxes. These boxes are designed to contain any sparks or heat that may occur, preventing ignition of surrounding materials.
3. Consider the Material Construction
The material of the weatherproof distribution box directly impacts its durability, resistance to the elements, and overall performance. Different materials are suitable for different applications and environmental conditions.
Metal (Stainless Steel, Galvanized Steel): Metal weatherproof boxes are highly durable, offering protection against both environmental factors and physical damage. Stainless steel and galvanized steel are corrosion-resistant, making them suitable for marine, industrial, and outdoor installations.
Plastic (Polycarbonate, ABS): Plastic boxes are often lighter and more affordable than metal alternatives. They are typically UV-resistant and suitable for environments with lower physical impact risks. Plastic boxes are common in applications like telecommunications, signage, and residential installations.
Fiberglass: Fiberglass boxes offer a combination of corrosion resistance, lightweight design, and durability. They are ideal for environments with exposure to chemicals or corrosive elements and are often used in industrial or marine applications.
4. Check the Size and Capacity
The size of the weatherproof distribution box should be selected based on the number and type of electrical components that need to be housed. The box should provide adequate space for wiring, circuit breakers, fuses, and any other equipment that requires protection.
Interior Layout: Consider whether the box has enough compartments, mounting plates, and space for organizing electrical components efficiently. A well-organized layout will not only make the installation process easier but also ensure that components are easily accessible for maintenance or troubleshooting.
Future Expansion: Think about the potential for future upgrades or additions to the electrical system. Choosing a box with extra capacity can help avoid the need for replacement or resizing if your system grows or changes.
5. Ease of Installation and Access
The installation process for a weatherproof distribution box should be straightforward and convenient. Boxes with easy mounting options and accessible features will save time and effort during installation and maintenance.
Mounting Options: Look for boxes that offer flexible mounting options, such as wall mounting, pole mounting, or floor mounting, depending on the location where it will be installed. A box with adjustable mounting systems or brackets will make it easier to install in various locations.
Access for Maintenance: The box should have a design that allows easy access to the internal components for regular maintenance, repairs, or upgrades. Removable covers or doors that securely seal the box while still allowing quick access are important for maintaining the system efficiently.
6. Compliance with Standards
Ensure that the weatherproof distribution box meets the relevant industry standards and regulations for safety, electrical installations, and environmental protection. For example, boxes used in electrical installations must comply with UL (Underwriters Laboratories) or CE (Conformité Européenne) certification, depending on the geographical region and type of application.
Electrical Compliance: Make sure that the box complies with local electrical codes and regulations. It should be certified for use in the specific electrical environment where it will be installed, whether residential, commercial, or industrial.
Environmental Standards: If the distribution box will be used in sensitive environments (such as food production, pharmaceuticals, or medical facilities), it’s important to ensure that the box meets industry-specific environmental standards for hygiene, safety, and performance.
7. Cost and Warranty
Finally, consider the cost and warranty offered with the weatherproof distribution box. While it's important to select a box that meets all technical and environmental requirements, it's also essential to ensure that it offers good value for money.
Cost Considerations: While it may be tempting to choose the least expensive option, investing in a high-quality weatherproof distribution box can save money in the long term by reducing the likelihood of damage and system failures. Assess the total cost of ownership, including installation, maintenance, and potential replacement costs.
Warranty: Look for a box that comes with a robust warranty. A long-term warranty indicates that the manufacturer stands behind the quality and durability of the product, providing peace of mind for the installation and use of the box.
Both weatherproof distribution boxes and junction boxes serve vital roles in electrical installations, but they are designed for different purposes and applications. Understanding the key differences between these two types of electrical enclosures is essential when selecting the appropriate product for specific environments or needs.
1. Purpose and Functionality
Weatherproof Distribution Box: A weatherproof distribution box is designed to house electrical components and protect them from harsh weather conditions, such as rain, moisture, dust, and extreme temperatures. These boxes are typically used in outdoor or industrial environments where electrical systems are exposed to the elements. They house important components like circuit breakers, distribution boards, and fuses, ensuring that these elements function properly and safely despite external factors.
Junction Box: A junction box, on the other hand, is primarily used to protect and house electrical connections or splices. It is not necessarily weatherproof but is often installed in areas where connections between wires or cables need to be organized and secured. Junction boxes can be used in both indoor and outdoor environments, though those for outdoor use may require additional weatherproofing features. They do not typically contain distribution systems but instead focus on providing a safe space for electrical connections to be made.
2. Design and Construction
Weatherproof Distribution Box: As the name suggests, weatherproof distribution boxes are constructed to resist external environmental elements. They are built with durable, corrosion-resistant materials such as stainless steel, galvanized steel, or high-grade plastic, designed to withstand exposure to rain, UV rays, moisture, and dust. These boxes also typically feature seals, gaskets, or locking mechanisms that ensure a tight, secure enclosure. The design often includes compartments to separate different electrical components and wiring for safety and organization.
Junction Box: Junction boxes are simpler in design and often made from materials like plastic, metal, or fiberglass. They are smaller in size compared to weatherproof distribution boxes and are intended to hold electrical connections such as wire splices, terminals, or junctions. While junction boxes can be used outdoors, they are not always built to withstand harsh weather unless specifically designed to be weatherproof. Their construction typically involves a straightforward box with a removable cover for access to the wiring.
3. Protection Level
Weatherproof Distribution Box: These boxes are engineered to provide high levels of protection against external environmental factors. They usually come with IP (Ingress Protection) ratings, such as IP65, IP66, or even IP67, indicating their resistance to water and dust. IP65-rated boxes are completely dust-tight and can resist water jets, while higher IP ratings, like IP67, offer protection against submersion in water for a short period.
Junction Box: Junction boxes, unless specifically labeled as weatherproof, typically do not offer the same level of environmental protection. They may have lower IP ratings, and their primary function is to protect electrical connections from dust, dirt, and accidental contact rather than offering full protection against water and extreme conditions. For outdoor applications, you may need to use a junction box with weatherproofing features or install additional protective elements.
4. Applications and Use Cases
Weatherproof Distribution Box: These boxes are commonly used in outdoor, industrial, commercial, or residential environments where electrical components must be protected from extreme weather. Some typical applications include:
Outdoor lighting systems: To protect circuit breakers and fuses from rain and moisture.
Solar power systems: To house the electrical connections and control systems for solar panels and inverters, often exposed to outdoor elements.
Industrial machinery: To safeguard the electrical distribution systems in manufacturing plants or factories that experience exposure to dust, dirt, and humidity.
Street lighting and traffic signals: To ensure electrical components are housed safely in public spaces with weather exposure.
Junction Box: Junction boxes are ideal for organizing and protecting electrical connections.
They are commonly used in applications such as:
Indoor wiring connections: To safely house and secure wire splices and connections within homes, offices, or buildings.
Outdoor but sheltered environments: In situations where the junction box is installed in a location that is not directly exposed to harsh weather, such as under eaves, in garages, or utility rooms.
Industrial applications: For connecting and organizing wiring systems within machinery or equipment where weather exposure is minimal.
5. Accessibility and Maintenance
Weatherproof Distribution Box: These boxes are designed for ease of access to electrical components, especially when it comes to maintenance or troubleshooting. They typically have doors or removable covers that can be opened without compromising their weatherproof capabilities. This accessibility allows technicians to perform routine checks or replacements of circuit breakers, fuses, and other essential components. The design also helps with cable management, ensuring safe routing of wires inside the box.
Junction Box: Junction boxes are also designed to provide easy access to electrical connections but are generally less complex in their internal layout. The primary goal is to make electrical connections accessible for maintenance or upgrades. They are often smaller and simpler to access, and while they may not have the same level of compartmentalization as weatherproof distribution boxes, they serve the function of housing and protecting electrical connections in both indoor and outdoor applications.
6. Cost and Installation
Weatherproof Distribution Box: Weatherproof distribution boxes tend to be more expensive than junction boxes due to their specialized design and materials that offer better protection against environmental factors. The installation process may require more careful planning and consideration, especially when mounting the box in exposed outdoor locations or on industrial machinery. These boxes may also require more robust mounting hardware and additional sealing mechanisms to ensure the integrity of the enclosure.
Junction Box: Junction boxes are typically more affordable and easier to install than weatherproof distribution boxes. They are smaller, less complex, and are often used in less demanding environments. For outdoor installations, you may need to invest in weatherproof junction boxes, but for many indoor applications, the standard options are sufficient. The installation process for junction boxes is generally simpler and faster, with fewer considerations for sealing and environmental factors.
| Feature | Weatherproof Distribution Box | Junction Box |
|---|---|---|
| Purpose and Functionality | Protects electrical components from weather elements (rain, dust, moisture). | Houses and organizes electrical connections or splices. |
| Design and Construction | Durable construction with seals and gaskets for weather resistance. | Simple design, often made of plastic, metal, or fiberglass. |
| Protection Level | High environmental protection (IP ratings such as IP65, IP66, IP67). | Lower protection unless specified as weatherproof. |
| Applications | Used in outdoor, industrial, commercial, and residential environments. | Common in indoor and sheltered outdoor applications. |
| Environmental Suitability | Designed to withstand rain, moisture, dust, UV, and extreme temperatures. | Primarily used for wire splicing in controlled or less-exposed environments. |
| Key Use Cases | - Outdoor lighting systems - Solar power systems - Street lighting |
- Indoor wiring connections - Protected outdoor installations |
| Accessibility and Maintenance | Easy access to components for maintenance, typically with removable covers. | Simple access to electrical connections, but fewer internal compartments. |
| Cost and Installation | More expensive, requires careful installation and sealing for outdoor use. | Less expensive and easier to install in less demanding environments. |
| Complexity | More complex due to higher protection and component organization. | Simple in design, focusing on connecting and securing wires. |
Weatherproof distribution boxes play a crucial role in protecting electrical systems from environmental elements like moisture, dust, and extreme temperatures. These boxes are commonly used in outdoor or industrial settings where components are exposed to harsh conditions. Proper installation and maintenance of weatherproof distribution boxes are essential for ensuring their long-term functionality and protecting your electrical systems from potential hazards.
1. Installation of Weatherproof Distribution Boxes
Installing a weatherproof distribution box requires careful planning and attention to detail. It's important to ensure that the box is securely mounted and properly sealed to prevent any environmental factors from entering the enclosure.
Key Steps in Installation:
Site Selection: Choose an appropriate location for the distribution box. The box should be installed in a place that provides easy access for maintenance and inspection while ensuring it is shielded from direct exposure to severe environmental elements like flooding or falling debris.
Mounting the Box: Depending on the design, weatherproof distribution boxes can be mounted on a wall, pole, or other structures. Ensure the mounting surface is stable and secure. Use suitable mounting brackets or hardware to ensure the box is fixed firmly. For some boxes, wall anchors or screws may be required to support their weight and protect against vibrations.
Sealing and Gasketing: To maintain the weatherproofing of the distribution box, it’s important to apply proper sealing measures. Most weatherproof boxes are equipped with gaskets or seals around doors and openings. Ensure these seals are intact and properly seated to prevent water and dust from entering. Check for any potential gaps during installation.
Electrical Connections: Once the box is mounted securely, begin connecting the electrical components such as circuit breakers, fuses, and wiring. Follow local electrical codes and regulations to ensure safe and effective wiring. Properly secure all cables to prevent wear and tear, and ensure that the components inside the box are safely housed.
Testing the Installation: After installation, it's crucial to test the electrical system to verify that all connections are secure and the distribution box is functioning as intended. Use a multimeter or other testing devices to ensure that power flows correctly and safely to the necessary circuits.
2. Maintenance of Weatherproof Distribution Boxes
Regular maintenance is essential to ensure the continued performance of weatherproof distribution boxes and the safety of the electrical system. Maintenance involves inspecting the box for damage, cleaning it, and making sure it's still functioning effectively.
Key Steps in Maintenance:
Routine Inspections: Regularly inspect the weatherproof distribution box for any signs of wear or damage, especially after extreme weather conditions. Check for cracks, dents, or discoloration that may indicate structural damage. Verify that the seals and gaskets are intact and that there are no signs of moisture infiltration or dust accumulation.
Cleaning the Box: Clean the exterior of the weatherproof distribution box to remove dust, dirt, and debris. Use a damp cloth to wipe down the surface, but avoid using harsh chemicals that could damage the material. If necessary, use a soft brush to clean vents or areas where dust may accumulate. Ensure that the inside of the box is free of moisture and dust, which could interfere with electrical components.
Inspecting Seals and Gaskets: Over time, the seals and gaskets on weatherproof distribution boxes can degrade, particularly in areas with harsh environmental conditions. Regularly inspect these seals to ensure they remain in good condition. Replace any worn or damaged seals to maintain the box’s weatherproof integrity.
Checking Electrical Connections: Periodically check the electrical connections inside the distribution box to ensure they are secure and free of corrosion or loose wires. Tighten any connections if necessary and inspect the components for signs of wear, such as burn marks or discoloration, which may indicate overheating or malfunctioning parts.
Lubricating Moving Parts: Some weatherproof distribution boxes have doors or access panels that may require occasional lubrication to ensure smooth operation. Use a light, non-corrosive lubricant to keep the hinges or locks functioning properly, especially if the box is frequently accessed.
Testing for Proper Operation: After performing any maintenance or cleaning tasks, always test the electrical system inside the distribution box to verify it is functioning properly. Check for proper voltage levels, grounding, and continuity of the electrical circuits.
Replacement of Components: If any electrical components, such as circuit breakers or fuses, show signs of damage or malfunction, they should be replaced immediately to avoid electrical hazards. Ensure that replacement components are of the correct type and rating for the system.
3. Considerations for Long-Term Maintenance
Environmental Factors: The weatherproof distribution box will be exposed to various environmental factors over time, including rain, snow, extreme heat, and humidity. Consider these factors when planning maintenance schedules and replacement timelines for seals and gaskets.
Manufacturer Guidelines: Always refer to the manufacturer's instructions for specific maintenance practices and recommended inspection intervals. Some manufacturers may provide additional recommendations for ensuring optimal performance based on the materials and design of the box.
Upgrades and Modifications: As electrical systems evolve, there may be a need to upgrade or modify the distribution box to accommodate new technologies or increased power demands. Always follow safe installation practices when making modifications to the electrical system inside the box.
4. Safety Considerations
Power Shutdown: Always ensure that the power is turned off before performing any maintenance work on the distribution box. This reduces the risk of electrical shock and ensures that repairs or inspections can be performed safely.
Wear Appropriate PPE: Wear the necessary personal protective equipment (PPE) such as gloves and safety goggles when performing maintenance on the distribution box to protect against accidental contact with live electrical components or sharp edges.
Qualified Technicians: If you're not experienced with electrical systems, it's best to consult or hire a qualified electrician to perform installation, maintenance, or repairs. Electrical systems can be dangerous if not handled properly, and qualified professionals ensure that safety standards are met.
Weatherproof distribution boxes are an essential component of modern electrical systems, ensuring the safety and functionality of electrical components, especially in harsh and unpredictable environments. As industries continue to evolve and adapt to changing technological, environmental, and safety standards, the future of weatherproof distribution boxes is promising.
1. Technological Advancements in Weatherproof Distribution Boxes
As the demand for more efficient, reliable, and durable electrical systems grows, the weatherproof distribution box will evolve alongside technological advancements. Some key innovations that are expected to influence the future of these enclosures include:
Smart Integration: The future of weatherproof distribution boxes will likely include smart technology integration. This can involve sensors that monitor the internal temperature, humidity, or even the performance of electrical components. These smart features will help facility managers and maintenance teams identify potential issues before they lead to failures, enhancing the overall safety and reliability of the electrical system.
Remote Monitoring and Control: With the rise of Internet of Things (IoT) technology, weatherproof distribution boxes may be equipped with connectivity features that allow remote monitoring and control. Operators can receive real-time data about the status of the box, power consumption, or any issues within the system. This will allow for more proactive maintenance and ensure better control over critical infrastructure.
Automation: Automation is becoming increasingly prevalent in industrial and commercial applications. The future of weatherproof distribution boxes will likely involve automation features, such as automatic load balancing, self-diagnosis, and error detection. This will reduce the need for manual intervention, streamline operations, and improve system performance.
2. Sustainability and Environmental Considerations
As environmental awareness continues to grow, so does the demand for products that are energy-efficient and eco-friendly. The future of weatherproof distribution boxes will reflect these trends, with a focus on sustainability and reducing the environmental impact of electrical systems.
Recyclable Materials: There will be a stronger emphasis on using recyclable and environmentally friendly materials in the manufacturing of weatherproof distribution boxes. Materials like high-quality plastics, aluminum, and steel will be sourced from sustainable suppliers to minimize environmental harm. This will also align with global efforts to reduce waste and improve the recyclability of industrial products.
Energy-Efficient Designs: The demand for energy-efficient electrical systems is expected to increase. Weatherproof distribution boxes will need to incorporate energy-saving features such as low-power LED indicators, improved insulation to minimize energy loss, and the use of advanced materials that help regulate temperature and reduce energy consumption.
Compliance with Environmental Standards: As governments and regulatory bodies tighten environmental regulations, weatherproof distribution boxes will need to comply with new standards for sustainability, including those related to carbon emissions, material sourcing, and disposal. Manufacturers will have to stay ahead of these regulatory changes to ensure their products are compliant with evolving laws.
3. Enhanced Durability and Resistance
The durability of weatherproof distribution boxes has always been a key factor in their effectiveness. The future will see even more robust designs that are able to withstand extreme environmental conditions.
Advanced Corrosion Resistance: To ensure long-lasting protection, weatherproof distribution boxes will be manufactured with materials that offer enhanced resistance to corrosion, particularly in industries that operate in coastal or high-humidity environments. Corrosion-resistant coatings or materials like stainless steel and galvanized metals will continue to play a critical role in maintaining the integrity of the box.
Impact Resistance: With the increase in outdoor and industrial applications, future weatherproof distribution boxes will be built with higher impact resistance. This will protect the electrical components inside from physical damage due to harsh environmental conditions or accidents.
UV and Weather Resistance: As more systems are exposed to direct sunlight, weatherproof distribution boxes will need to be made with UV-resistant materials to prevent degradation from prolonged sun exposure. New materials will be designed to retain their protective qualities even after years of exposure to harsh weather conditions.
4. Customization and Modular Designs
The future of weatherproof distribution boxes will also involve greater customization and modularity to meet the diverse needs of industries across the globe.
Modular Systems: Modular designs will become more popular, allowing businesses to configure their distribution boxes according to their specific needs. These modular boxes can be adapted to accommodate a variety of components, such as circuit breakers, fuses, and switches, making them more flexible for different applications.
Tailored Sizes and Configurations: Companies will demand distribution boxes that can fit into specific spaces and suit their unique configurations. The ability to customize the size, layout, and features of the distribution box will ensure that it can meet the precise needs of different industries, whether in industrial, commercial, or residential settings.
Integration with Other Systems: Weatherproof distribution boxes will increasingly be designed to integrate with other electrical or automation systems, such as power management or remote monitoring systems. This integration will simplify operations and provide a seamless experience for operators, improving the efficiency of the entire electrical infrastructure.
5. Regulatory Compliance and Safety Standards
As electrical safety standards become more stringent globally, weatherproof distribution boxes will have to adapt to meet the evolving regulatory landscape.
Improved Safety Features: Future weatherproof distribution boxes will include enhanced safety mechanisms, such as automatic shut-off features, built-in fire protection, and overload protection to safeguard both the electrical system and those interacting with it.
International Certifications: With a focus on expanding global operations, weatherproof distribution boxes will need to comply with international standards and certifications. These certifications will ensure that boxes meet safety, performance, and environmental requirements across different countries and regions.
6. The Role of Weatherproof Distribution Boxes in the Future of Smart Cities
As cities around the world move towards becoming "smart cities," the need for reliable and safe electrical distribution systems will grow. Weatherproof distribution boxes will play an essential role in these developments, particularly in outdoor installations that power street lights, traffic signals, communication networks, and other smart infrastructure. The integration of weatherproof distribution boxes with smart grids and energy management systems will help optimize energy use, increase safety, and reduce maintenance costs for cities.
The future of weatherproof distribution boxes looks incredibly promising, driven by rapid innovations in technology, sustainability, durability, and customization. As industries continue to depend on these boxes to safeguard critical electrical components, there is a clear shift towards smarter, more energy-efficient, and environmentally friendly solutions. The future will see weatherproof distribution boxes that are increasingly equipped with smart features, made from improved materials, and designed in more modular configurations, ensuring they meet the growing demands of modern electrical systems.
With the increasing integration of IoT technologies and automation, weatherproof distribution boxes will play a pivotal role in the future of smart grids and sustainable energy management. These innovations will allow businesses and industries to not only enhance operational efficiency but also reduce maintenance costs, minimize energy consumption, and improve overall system reliability.
For businesses looking to stay ahead of the curve and adopt these next-generation solutions, it will be essential to embrace these advancements. By doing so, companies can ensure the safety, efficiency, and longevity of their electrical systems, while keeping up with evolving regulatory standards and environmental demands.
At Fly-Dragon Electrical Co., Ltd., we are committed to staying at the forefront of these developments, providing cutting-edge weatherproof distribution boxes that meet the highest standards of durability, performance, and sustainability. Our solutions are designed to protect your critical electrical components in the harshest environments, offering peace of mind for businesses across industries.
As the future unfolds, weatherproof distribution boxes will remain an essential part of reliable and safe electrical distribution systems. By working with trusted manufacturers like Fly-Dragon Electrical Co., Ltd., you can be confident that your electrical systems will continue to operate efficiently, safely, and sustainably, no matter what challenges lie ahead.
+86-577-62731897
shireen@nante.com
No.688 chezhan Road, Liushi town, Wenzhou, China
Copyright © 2024 Fly-Dragon Electrical Co., Ltd. All Rights Reserved.
Industrial Plug Socket Distribution Box Factory
浙公网安备33038202003041号
Privacy
English
Español
Português
Deutsch
