3P32A IP44 industrial waterproof socket

FNP2-323

Country of Origin

China

industrial plug

• nante FNP2

无数据

Quantity

Contact Now

add to cart

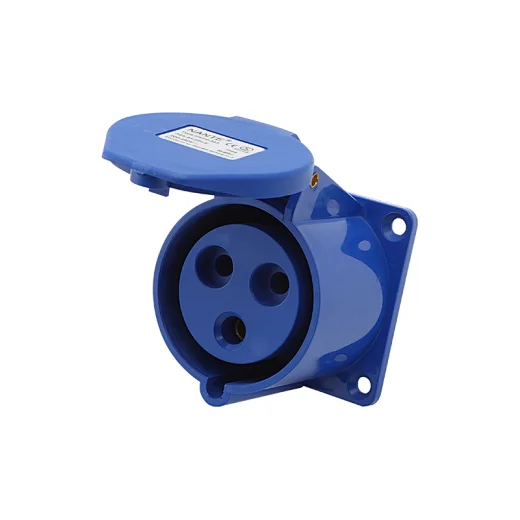

3P32A IP44 industrial waterproof socket

Suitable range

This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.



Product mix

This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP2-323 3pin 32A 250V, the socket is 2P+E, the range is 250V, and the product protection level is IP44.



Key material parameters

· Shell material: PA flame retardant nylon

· Material of current-carrying flange: PA flame retardant nylon

· Contacts/screw accessories: copper /ML08A cold heading steel



Technical feature

· Rated current: 32A

· Rated voltage: 250V

· Protection degree: IP44

· Insulation resistance: 500V d.c not less than 5 μΩ

· Dielectric strength: 2500V

· Temperature rise: the current-carrying end shall not exceed 50K

· Electrical clearance: not less than 8 mm

· Creep distance: not less than 10mm

· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts

· Cable connection end bears tension: not more than 80N



Outline installation ruler diagram

32A 2P+E 6H 220-250V IP44



• Application：

  Industrial
• Rated Current：

  32A
• Rated Voltage：

  220V
• Grounding：

  Other
• Type：

  Electrical Plug
• Model Number：

  FNP2-323
• Brand Name：

  NANTE
• Place of Origin：

  China
• Industrial plug and socket：

  Install concealed waterproof socket
• industrial plug：

  nante FNP2
