3P32A IP44 industrial waterproof connector
FNP2-223
Minimum order quantity:
1 piece
Country of Origin:
China
industrial plug
Quantity
Contact Now
add to cart

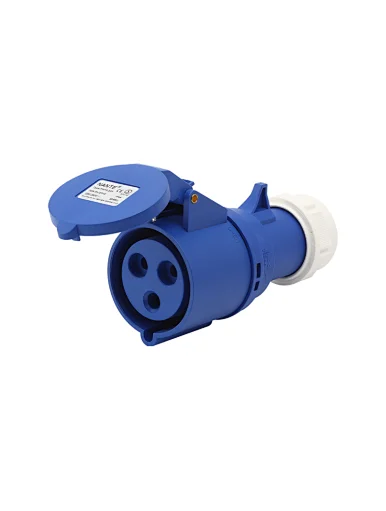

3P32A IP44 industrial waterproof connector

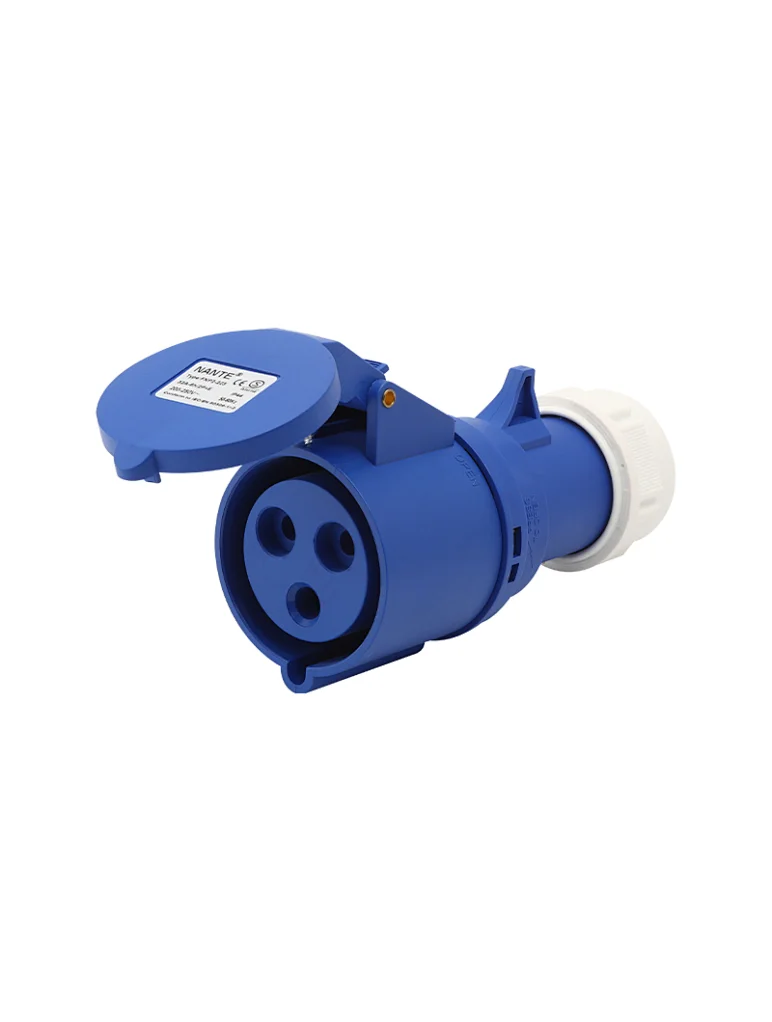

Heavy duty standard 3 pin 32a connector female waterproof
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

product mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-223 3pin 32A 250V industrial connector,, the connector, is 2P+E, the range is 250V, and the product protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

industrial plug technical feature
· Rated current: 32A
· Rated voltage: 250V
· Protection degree: IP44 Splashproof
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Industrial plug outline installation ruler diagram
32A 2P+E 6H 220-250V IP44 Splashproof

Heavy duty standard 3 pin 32a connector female waterproof
