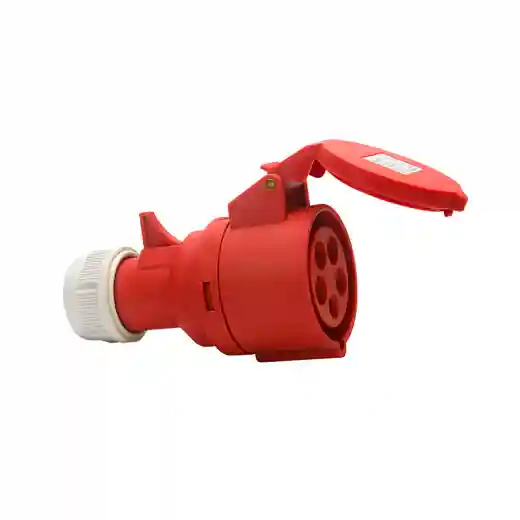

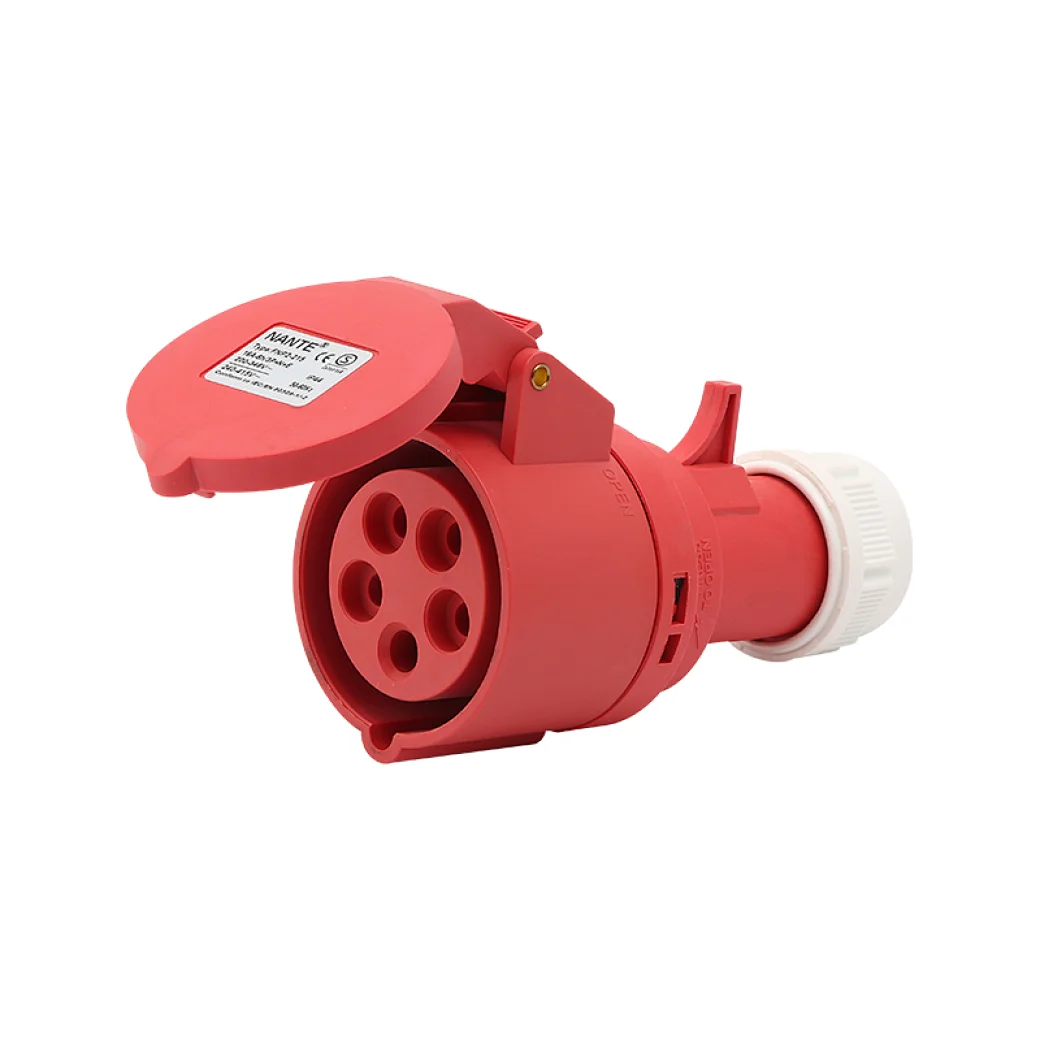

5P16A IP44 industrial waterproof connector
FNP2-215
Country of Origin:
China
industrial plug
Quantity
Contact Now
add to cart
5P16A IP44 industrial waterproof connector
Heavy duty standard 4 pin industrial 16 amp connector
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-215 5pin 16A 415V industrial plug, the plug is 3P+N+E, the range is 415V, and the product protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

Technical feature
· Rated current: 16A
· Rated voltage: 415V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Outline installation ruler diagram
16A 3P+N+E 6H 220-415V IP44
