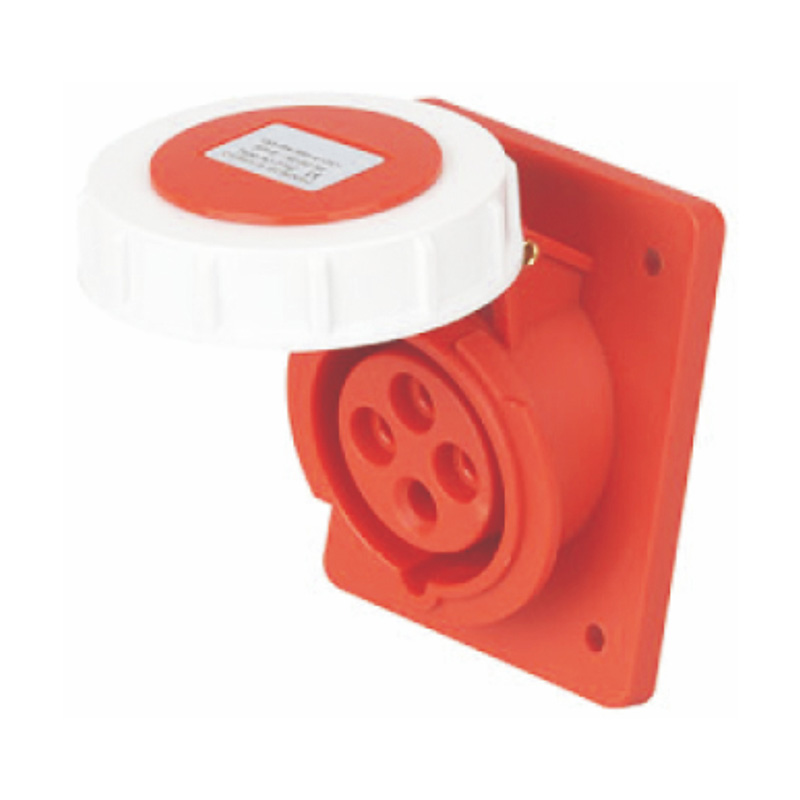

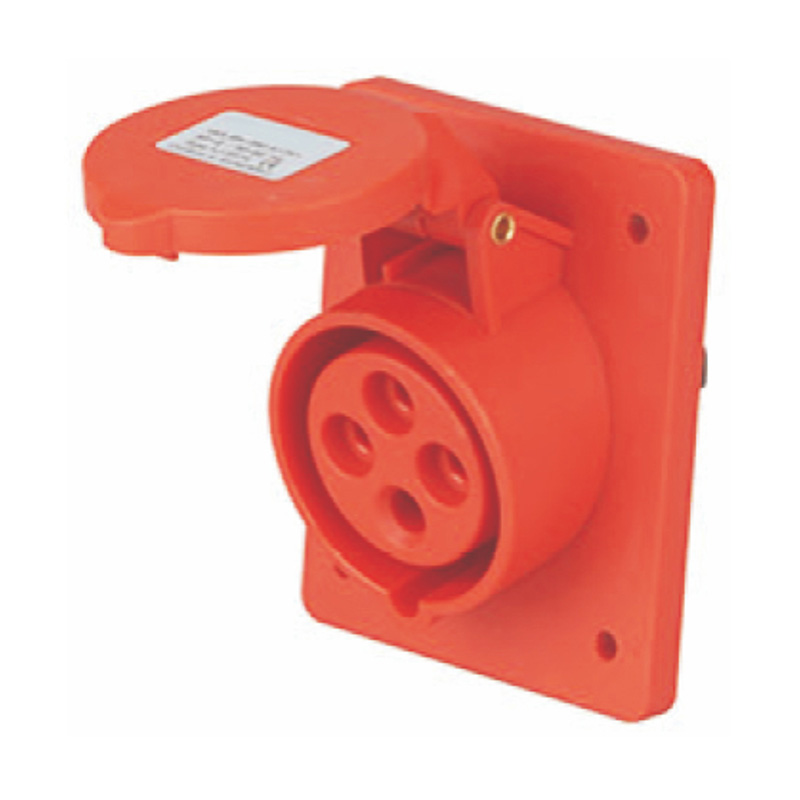

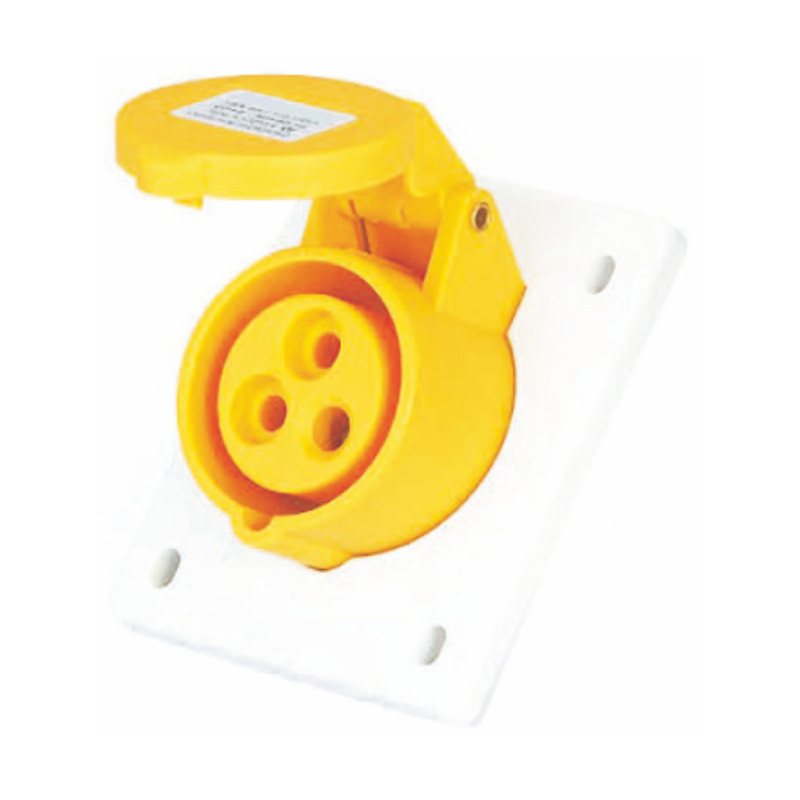

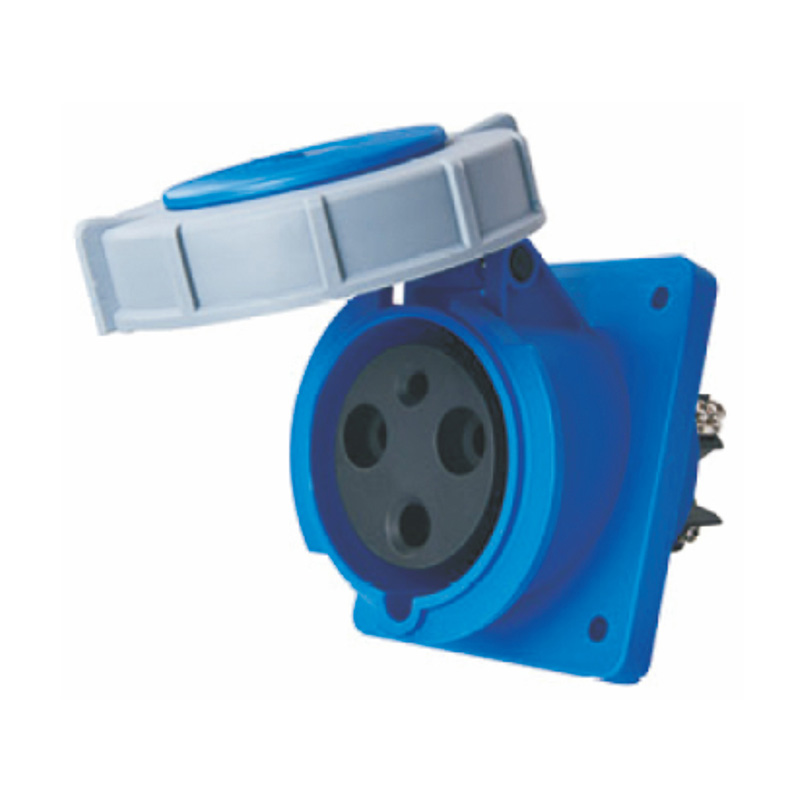

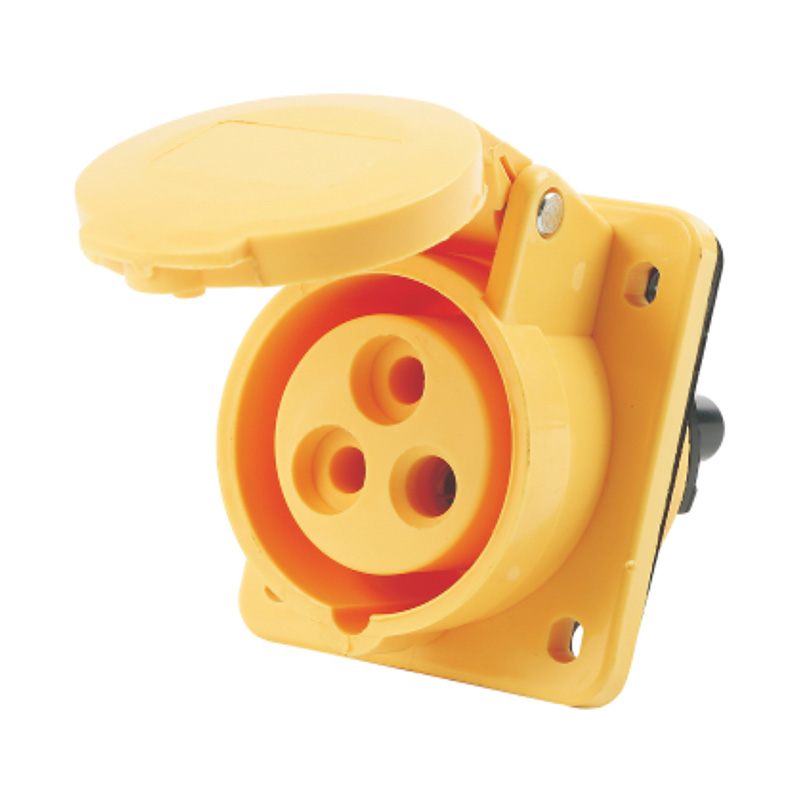

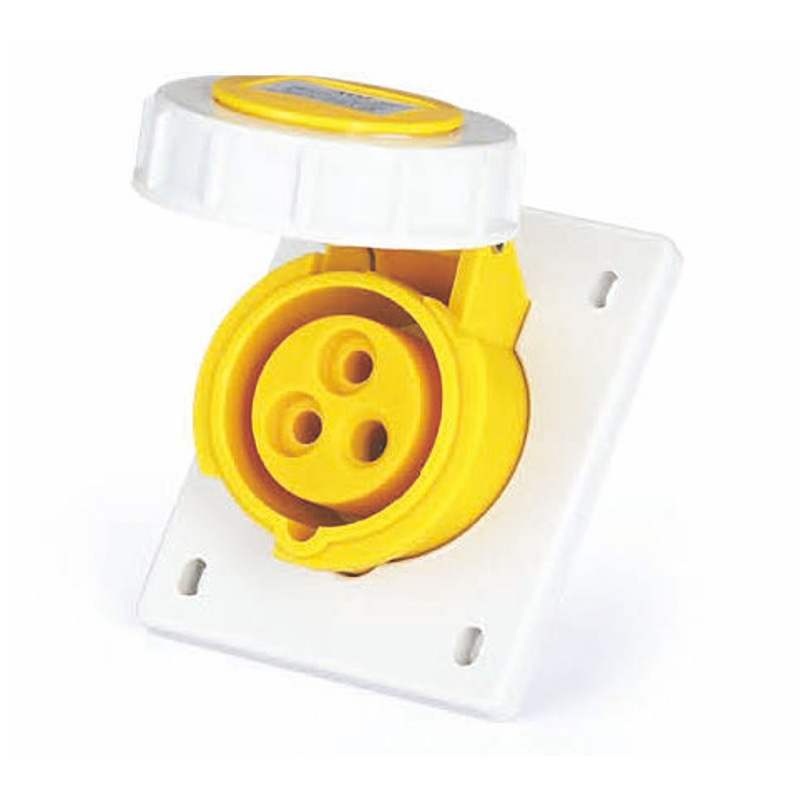

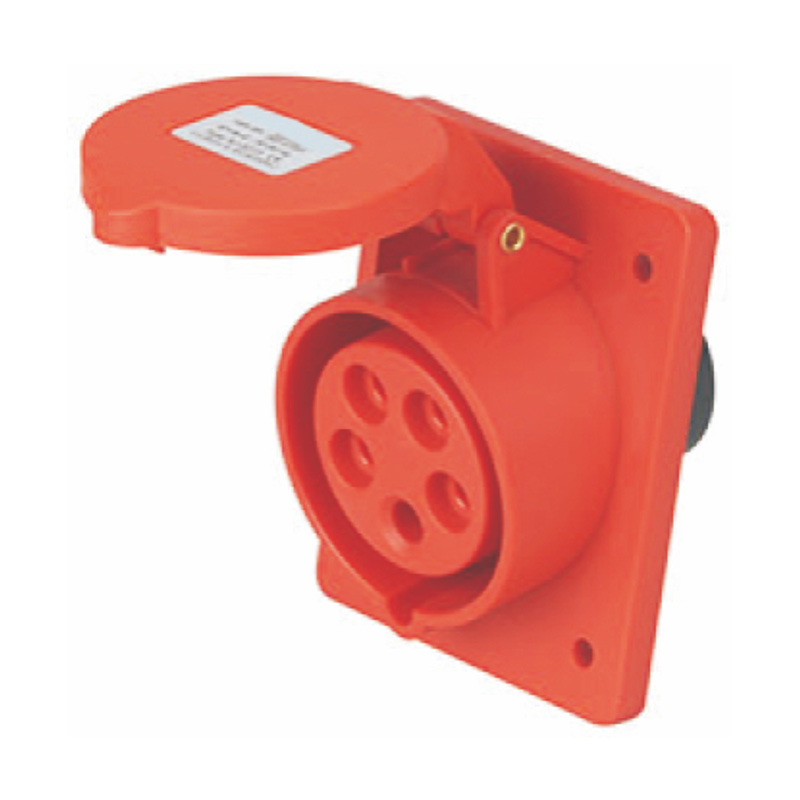

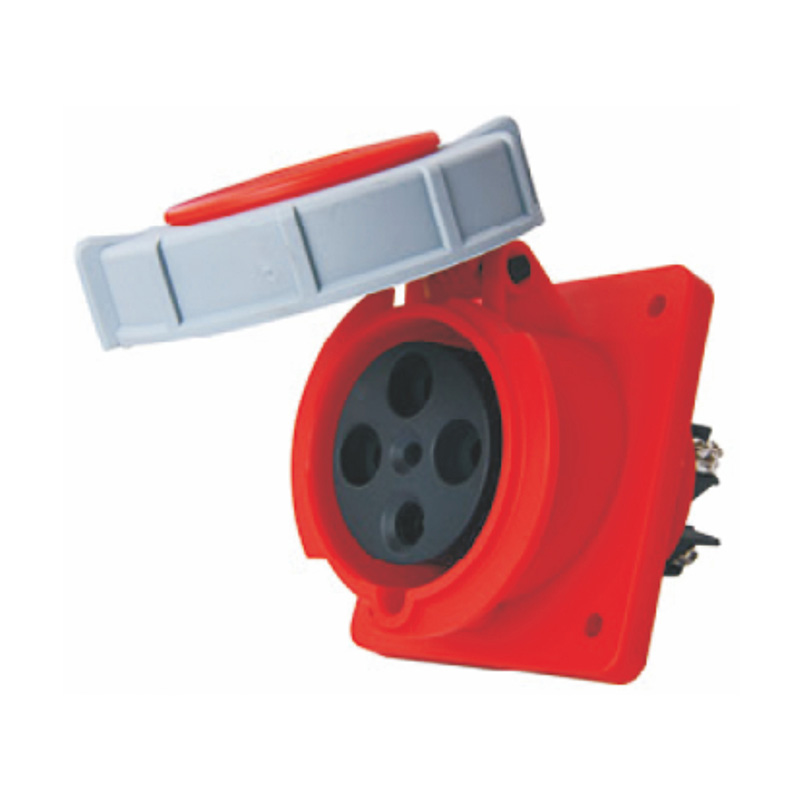

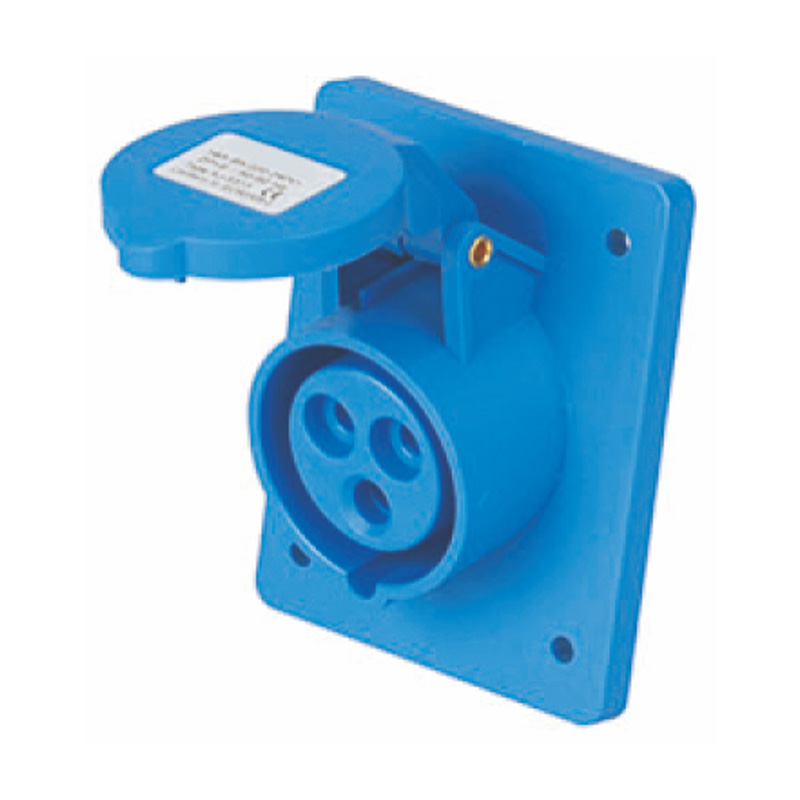

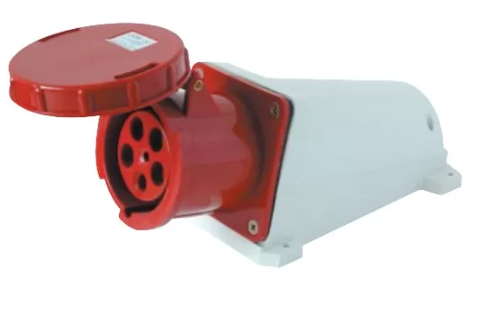

Angled Panel Mounted Industrial Socket

    Angled Panel-Mounted Industrial Socket: Optimized for Space and Reliability

    The angled panel-mounted industrial socket is engineered to deliver safe, high-efficiency power connections within control panels, switchgear assemblies, and machinery housings. Its distinctive angled configuration facilitates better cable management and easier access, proving particularly advantageous in tight installations or setups that demand neat, structured wiring arrangements.

    Constructed from robust, shock-resistant materials and featuring advanced IP-rated sealing, this socket provides strong protection against dust ingress, water exposure, and physical impacts. Meticulously designed contact systems, superior insulation properties, and reliable earthing mechanisms guarantee consistent electrical performance even under substantial voltage and amperage demands, ensuring secure and durable functionality in rigorous industrial applications.



    2P+E

    FNP2-413-4

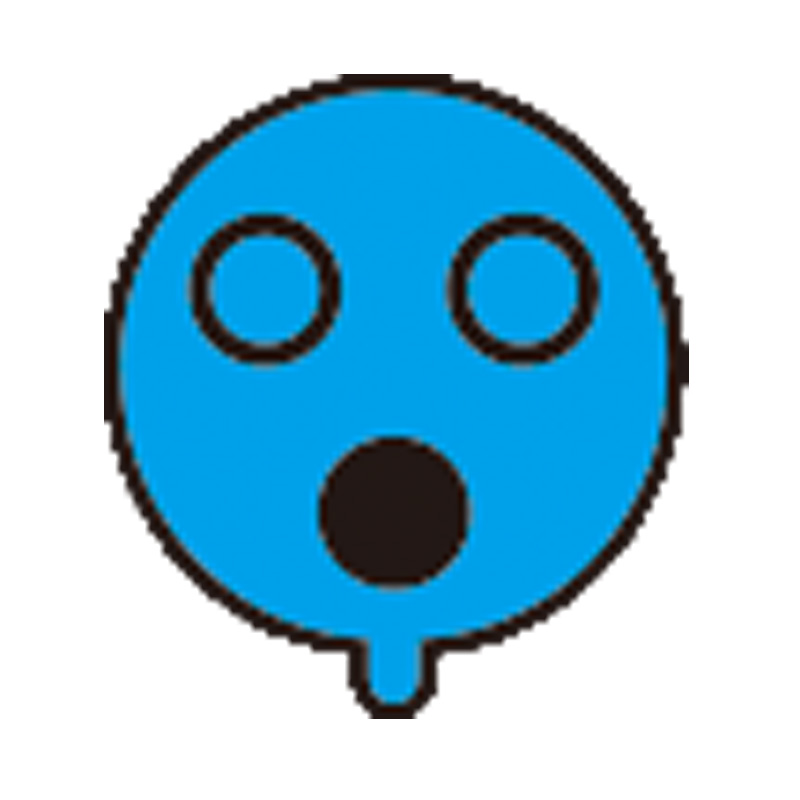

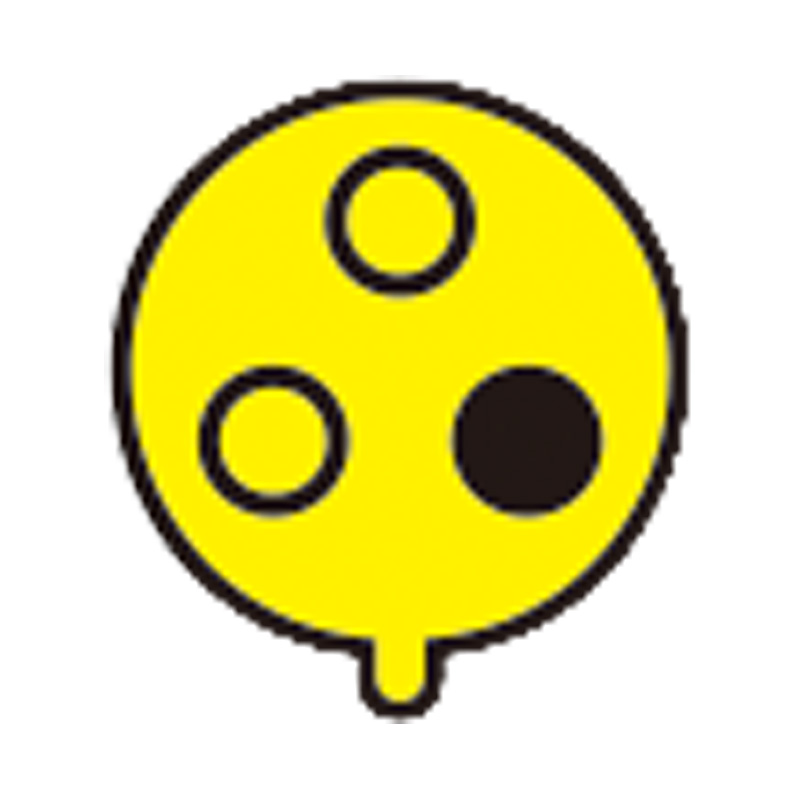

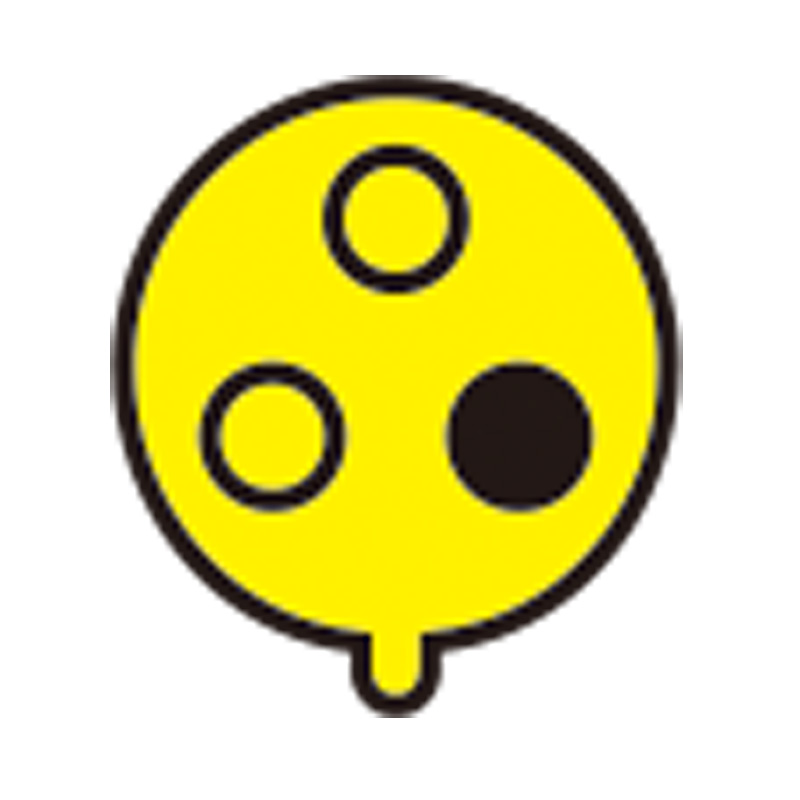

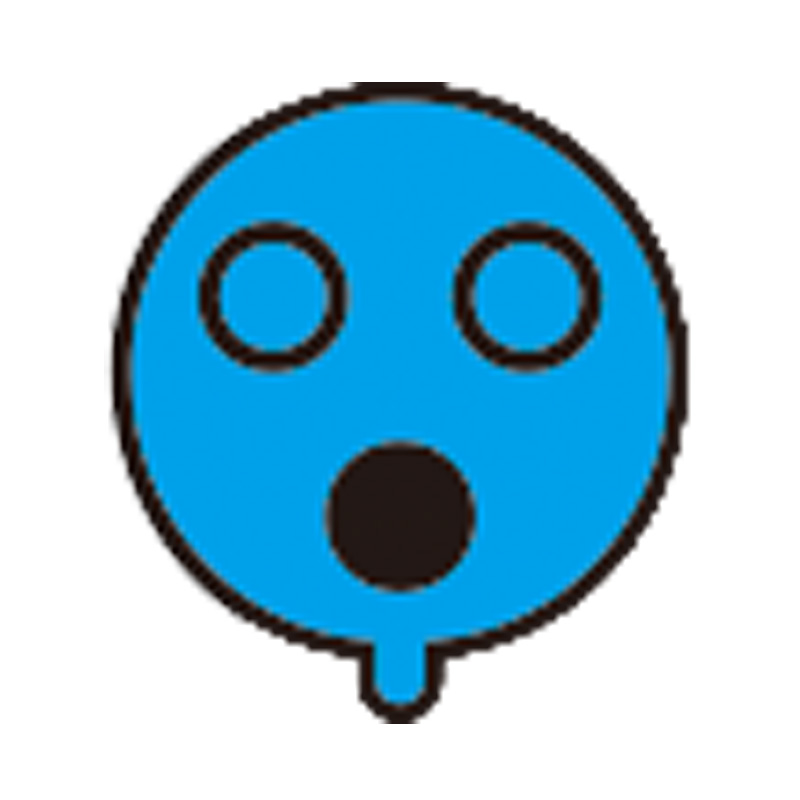

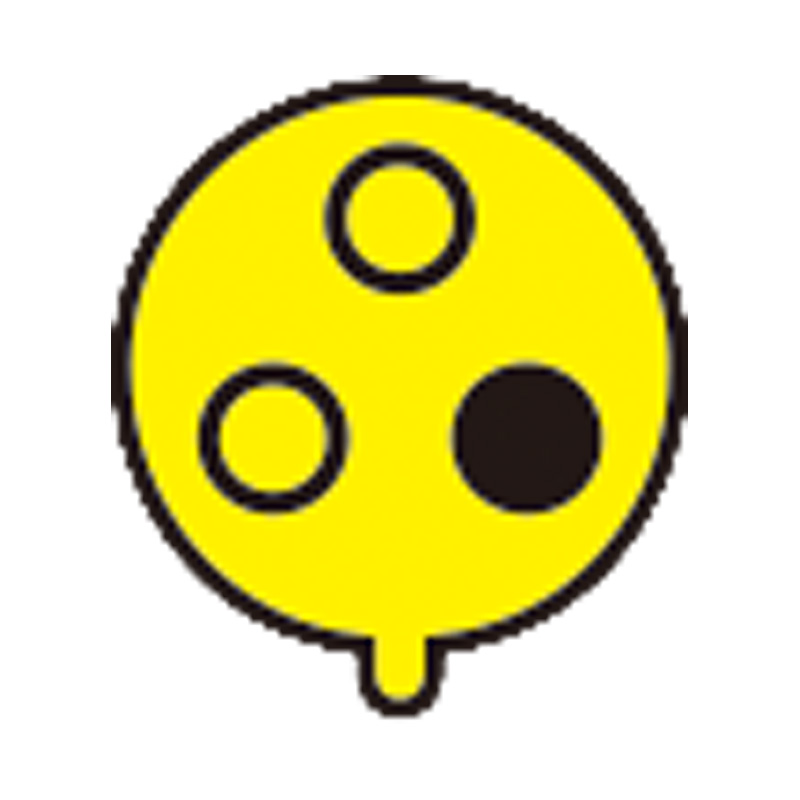

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d

    56
    56
    50
    35

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP44

    2P+E

    FNP2-423-4

    Earth contact position
    Normal current(A)
    4h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d

    65
    75
    62
    47

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 110-130V~
    Protection degree IP44

    2P+E

    FNP2-413

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d

    56
    56
    50
    35

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree IP44

    2P+E

    FNP2-423

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d

    65
    75
    62
    47

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree IP44

    3P+E

    FNP2-414

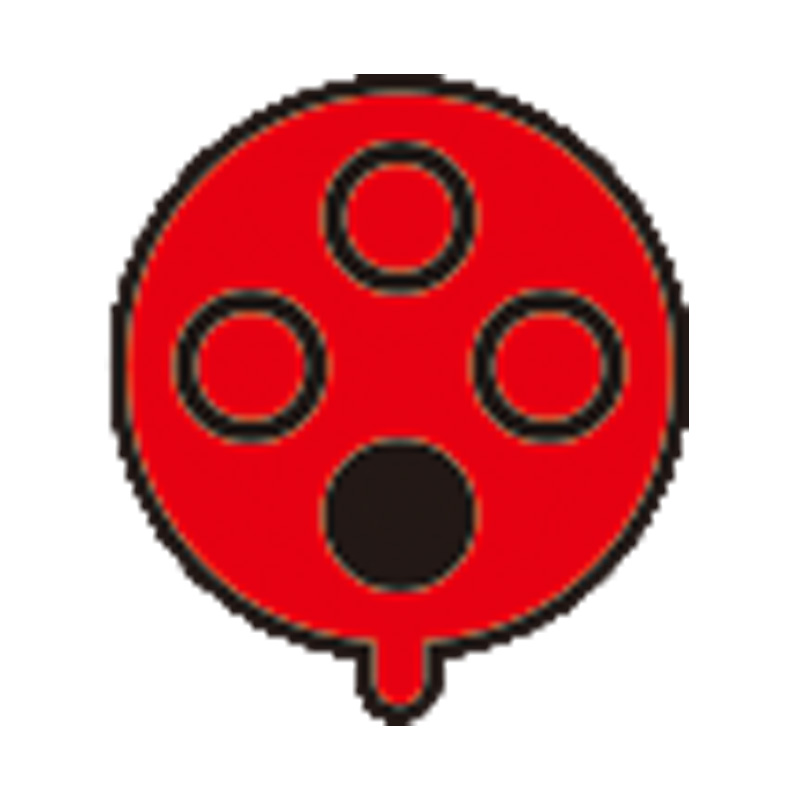

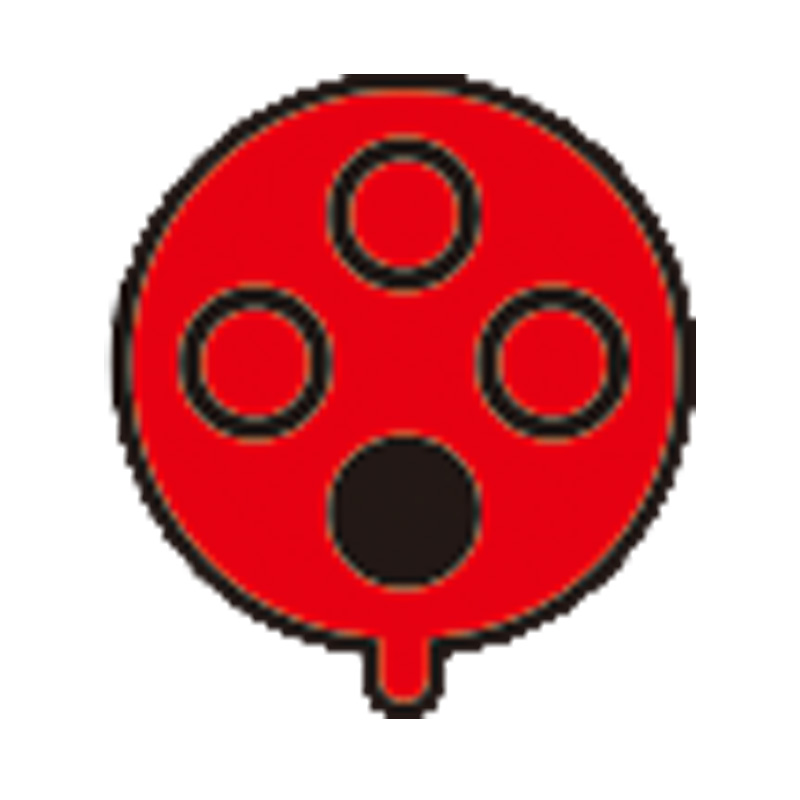

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d

    60
    60
    52
    38

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree IP44

    3P+E

    FNP2-424

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d

    65
    75
    62
    47

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree IP44

    3P+N+E

    FNP2-415

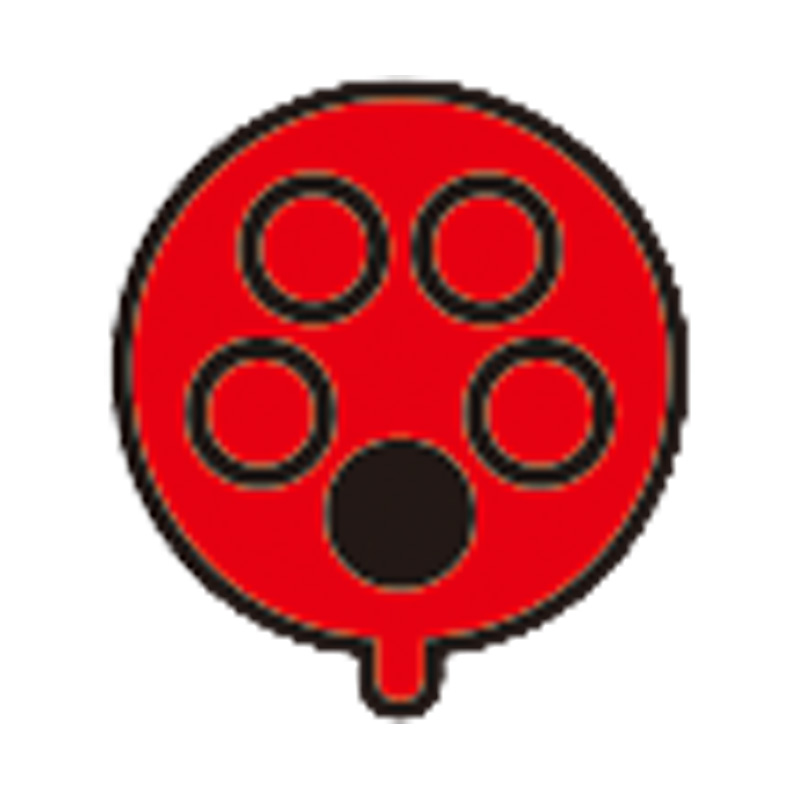

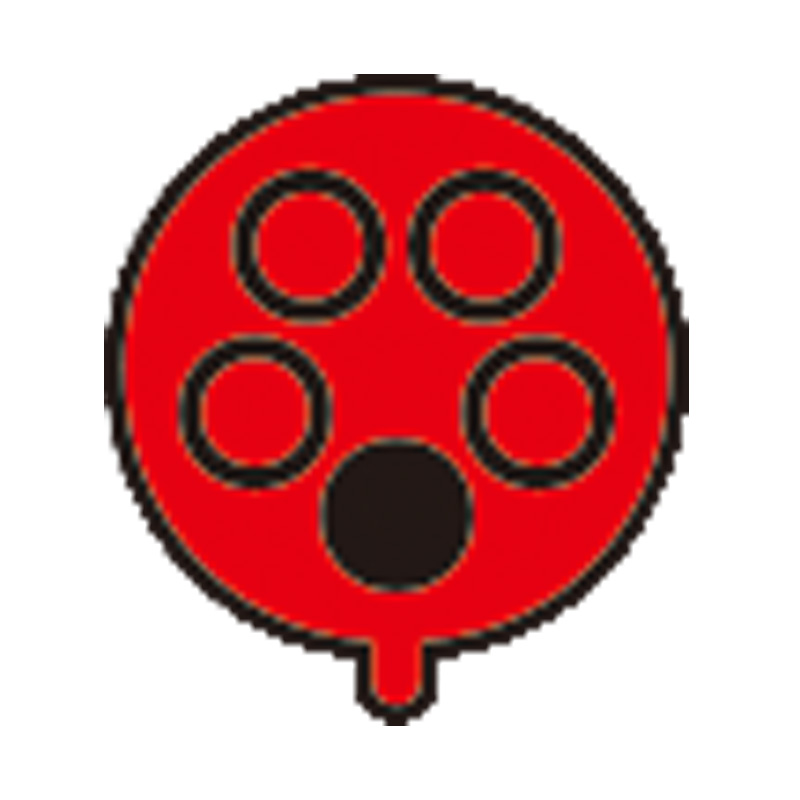

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d

    63
    72
    53
    41

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP44

    3P+N+E

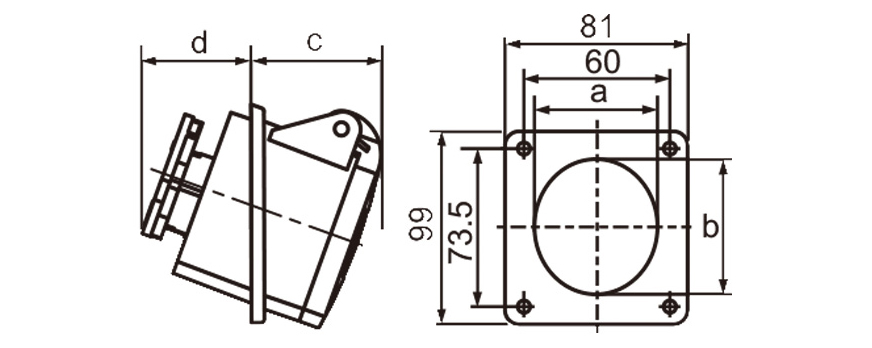

    FNP2-425

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d

    70
    83
    62
    47

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP44

    2P+E

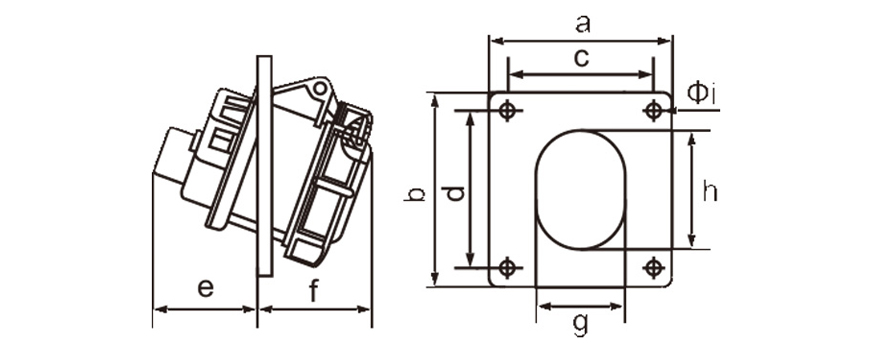

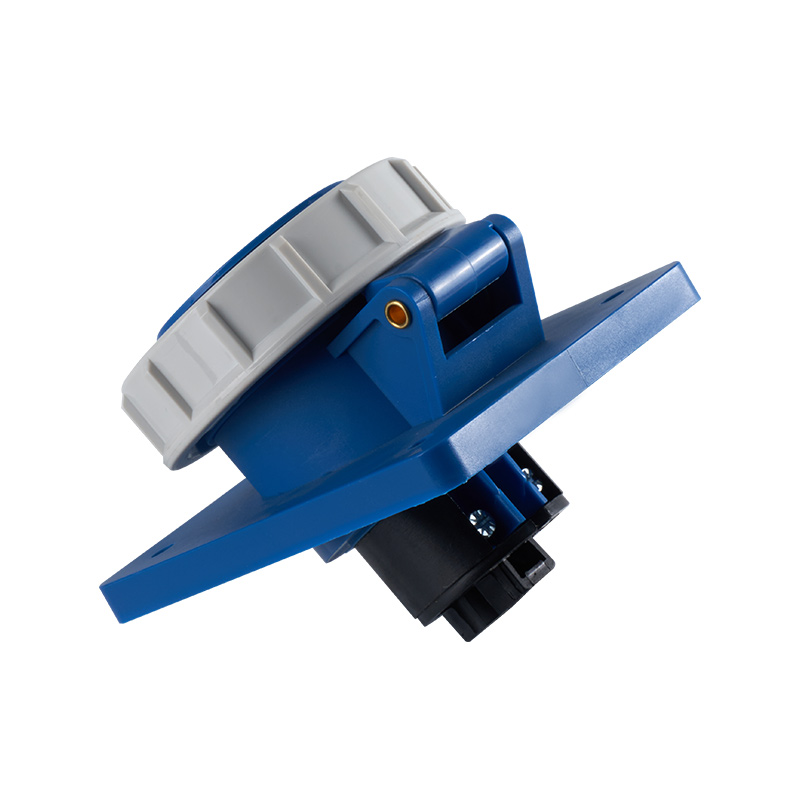

    FNP2-413F-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    34
    49
    57
    62
    5.5

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP67

    2P+E

    FNP2-423F-4

    Earth contact position
    Normal current(A)
    4h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    41
    59
    65
    80
    5.5

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 110-130V~
    Protection degree IP67

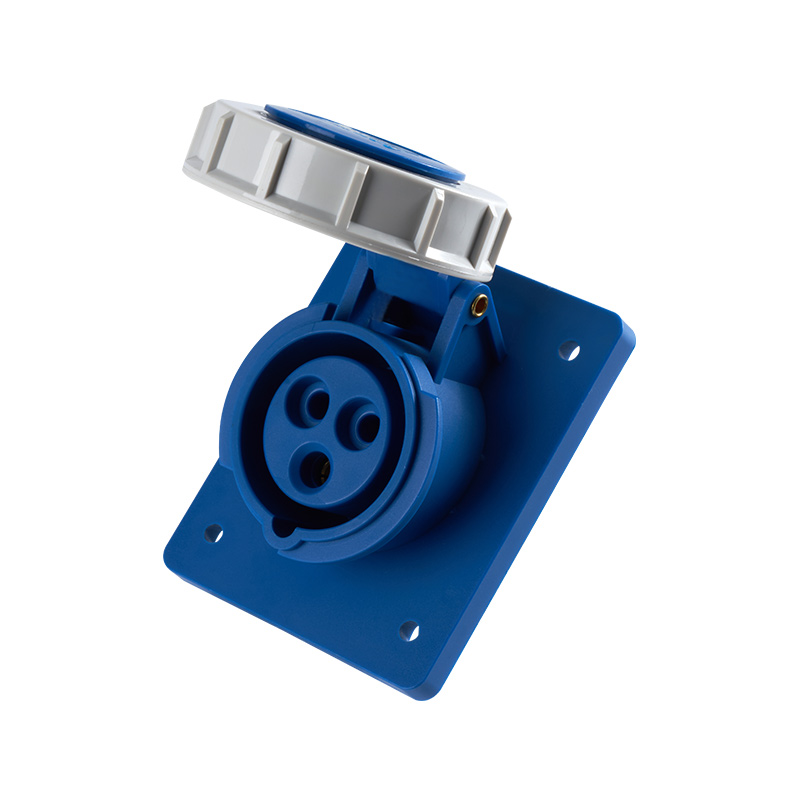

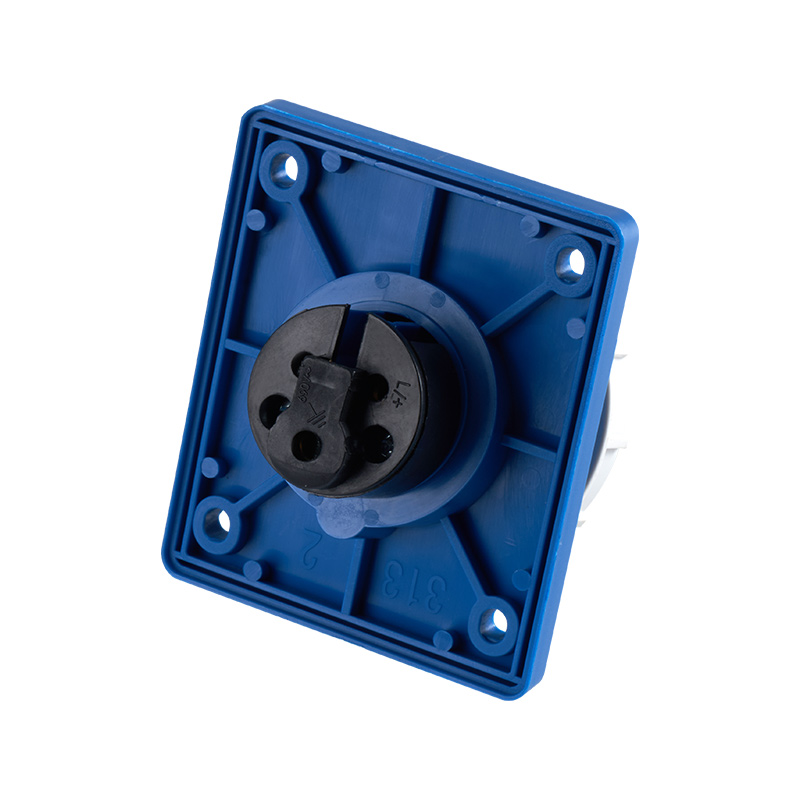

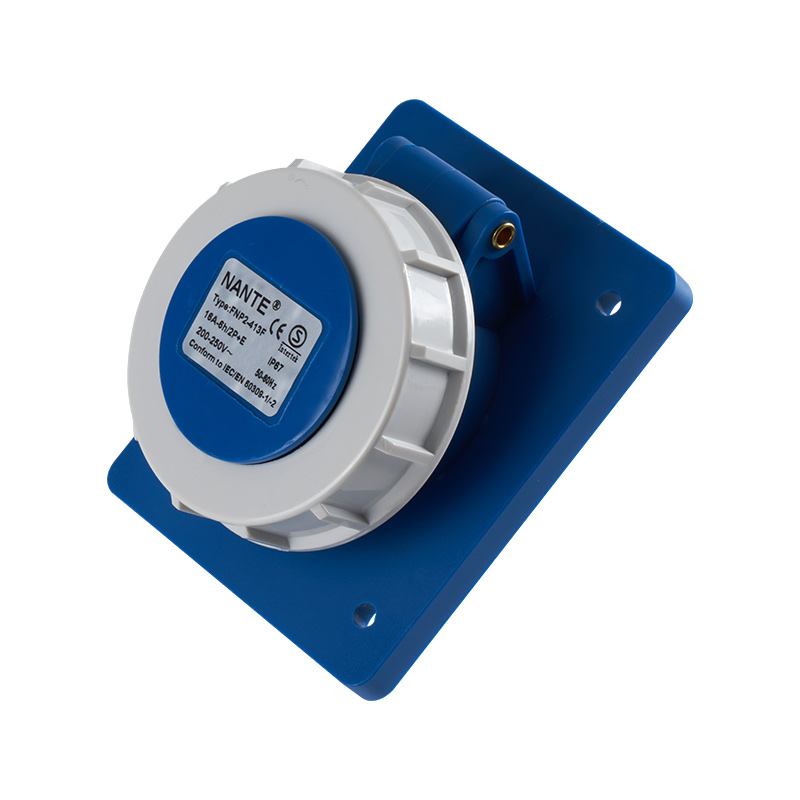

    2P+E

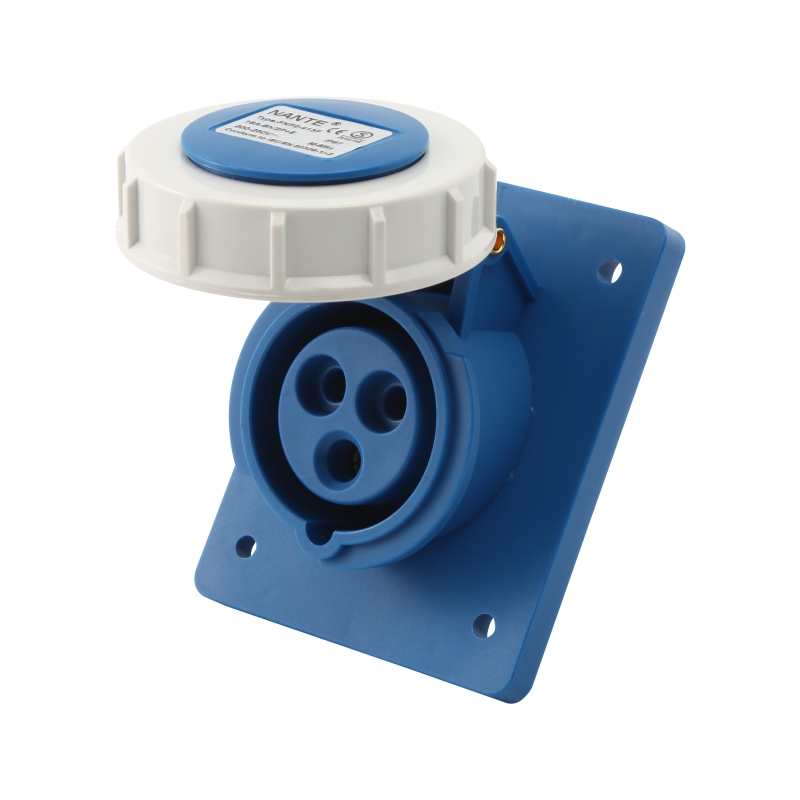

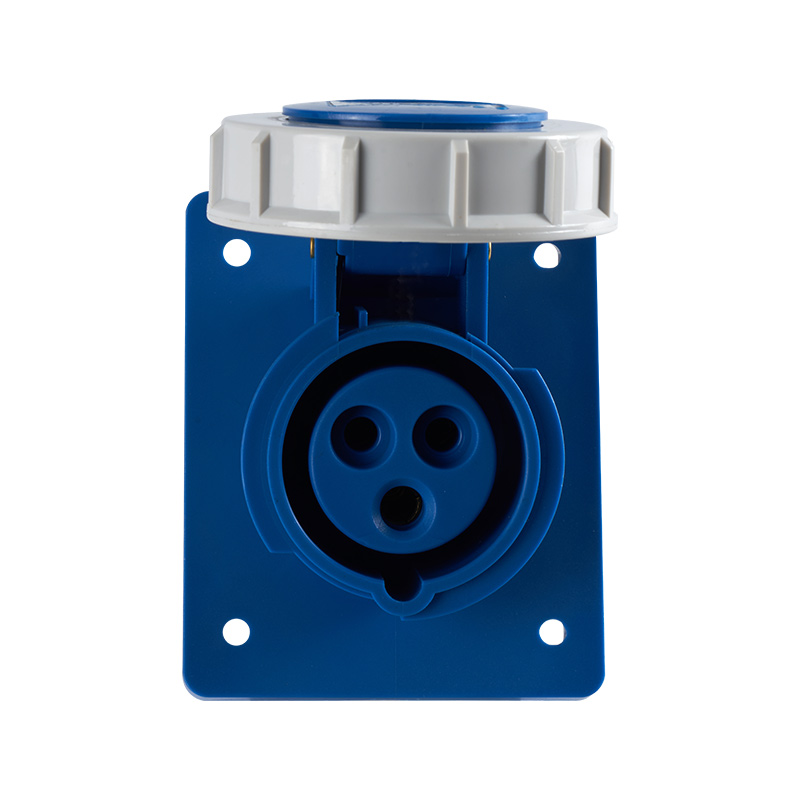

    FNP2-413F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    34
    49
    57
    62
    5.5

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree IP67

    2P+E

    FNP2-423F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    41
    59
    65
    80
    5.5

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree IP67

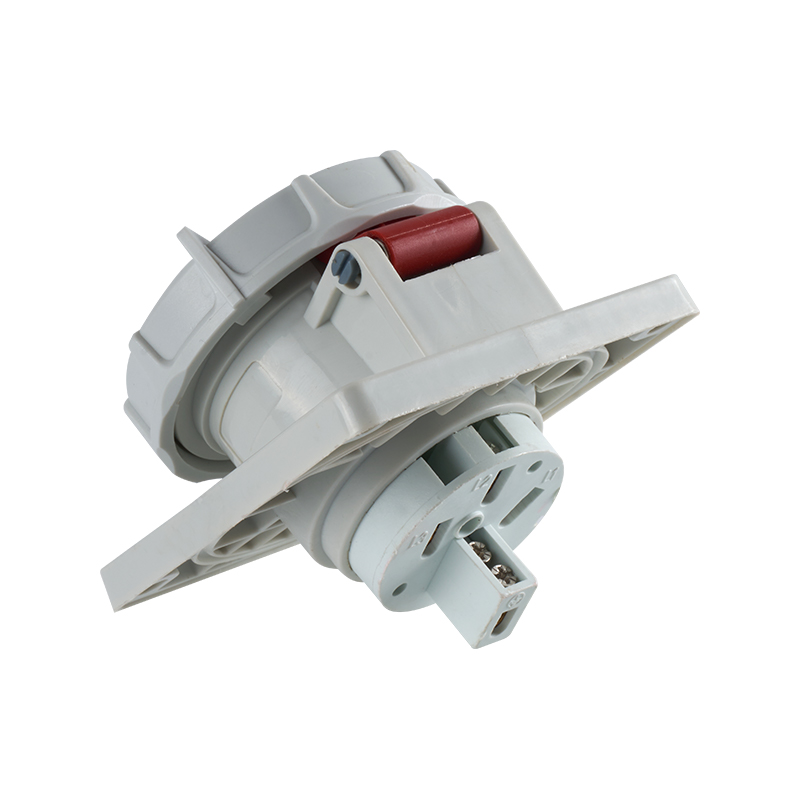

    3P+E

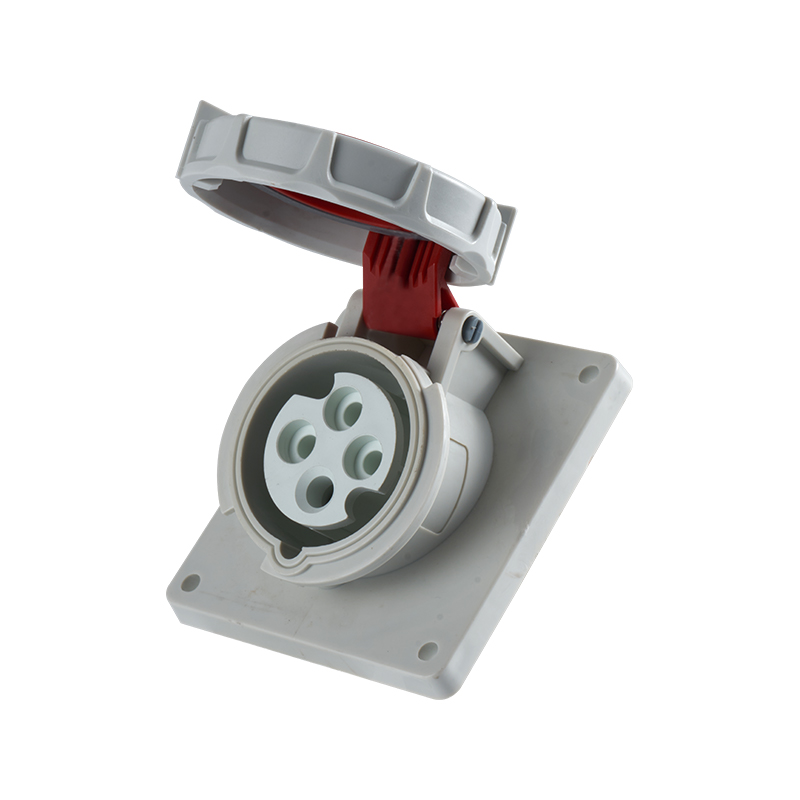

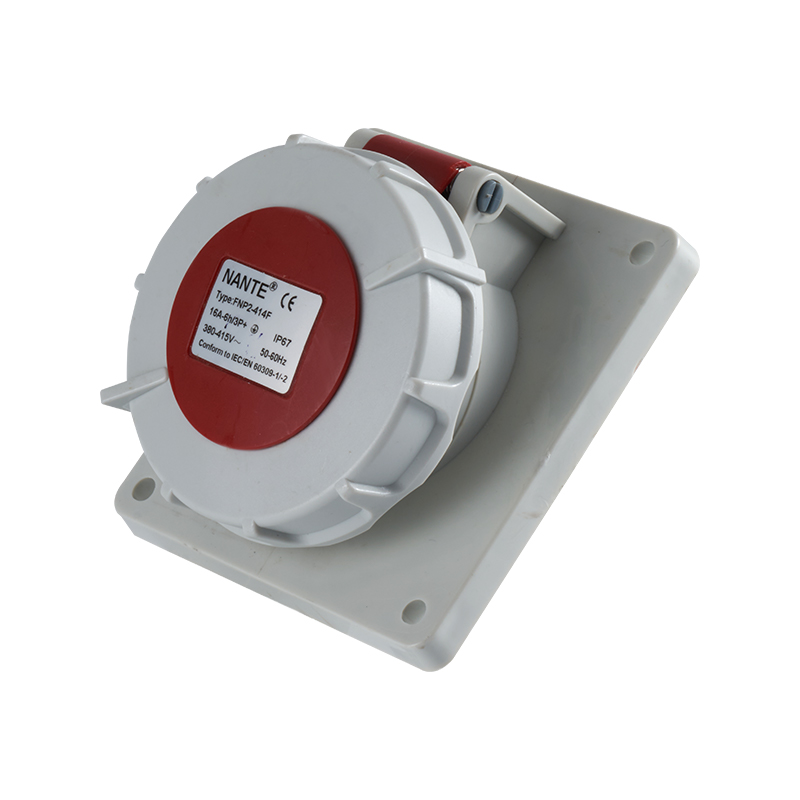

    FNP2-414F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    34
    49
    57
    65
    5.5

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree IP67

    3P+E

    FNP2-424F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    41
    59
    65
    80
    5.5

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree IP67

    3P+N+E

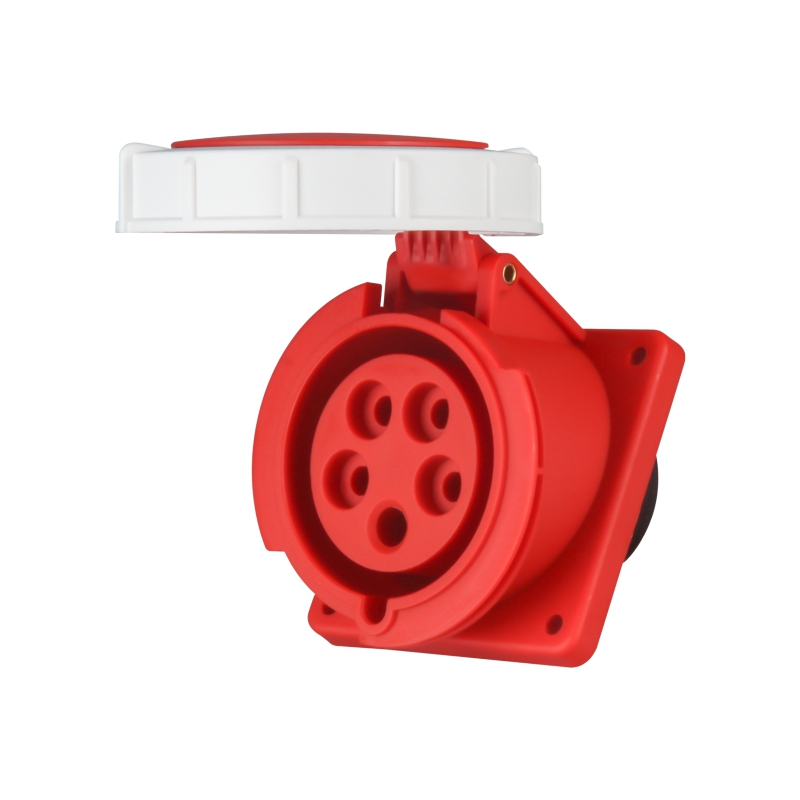

    FNP2-415F

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    34
    49
    57
    73
    5.5

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

    3P+N+E

    FNP2-425F

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h
    i

    80
    98
    60
    73
    41
    59
    65
    88
    5.5

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

    2P+E

    FNP2-433F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    101
    113
    80
    89
    67
    65
    80
    92

    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 200-250V~
    Protection degree IP67

    2P+E

    FNP2-443F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    121
    131
    101
    109
    100
    85
    92
    112

    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 200-250V~
    Protection degree IP67

    3P+E

    FNP2-434F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    101
    113
    80
    89
    67
    65
    80
    92

    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 380-415V~
    Protection degree IP67

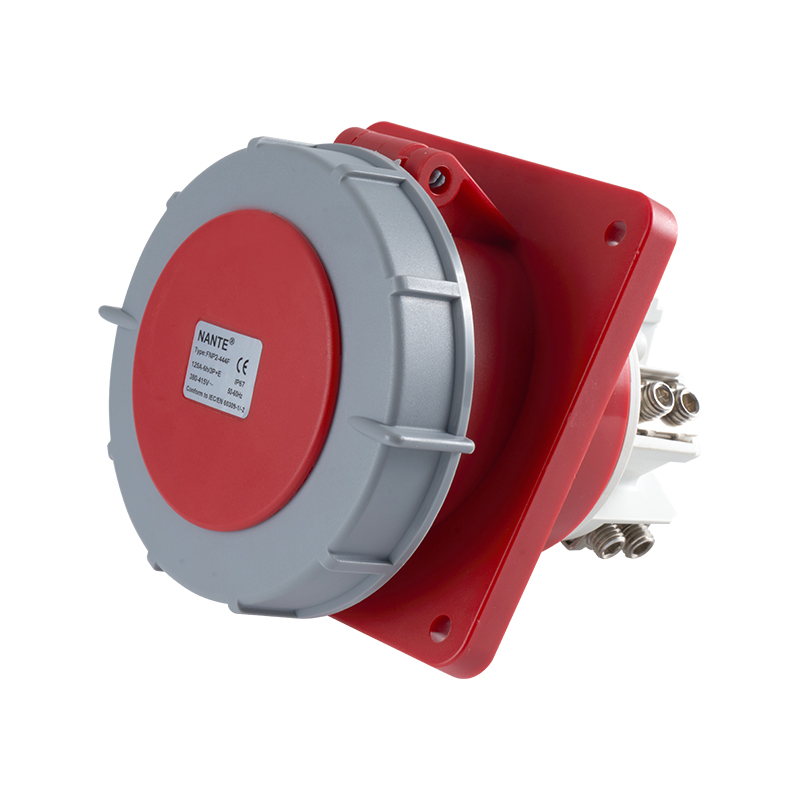

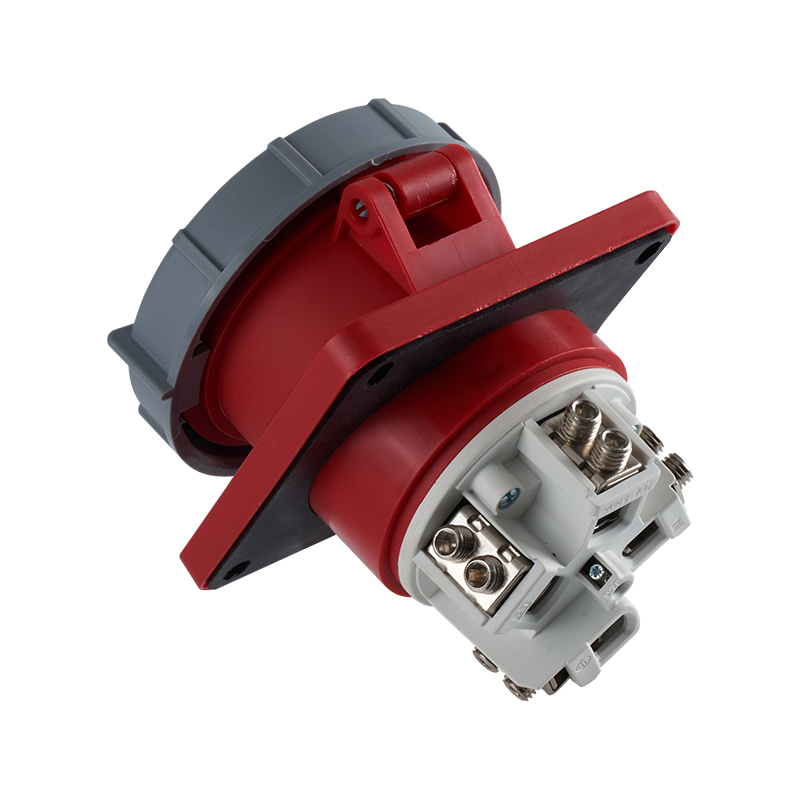

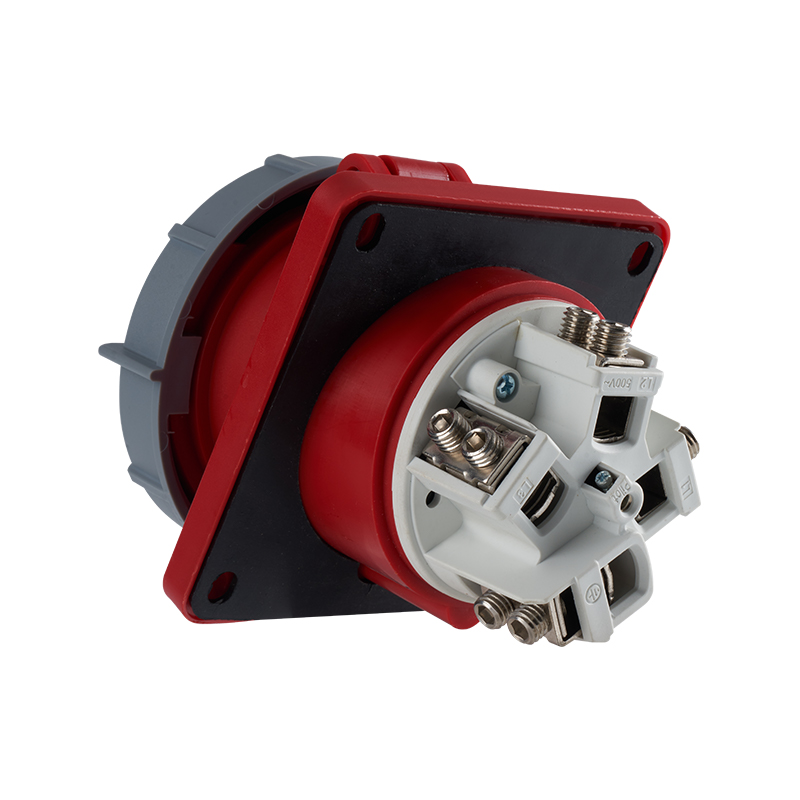

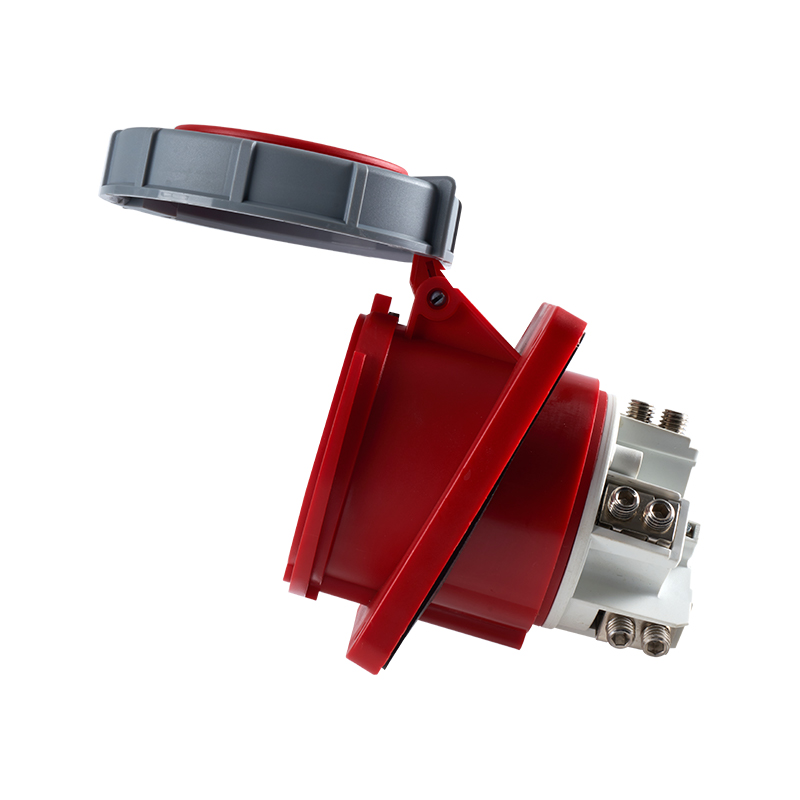

    3P+E

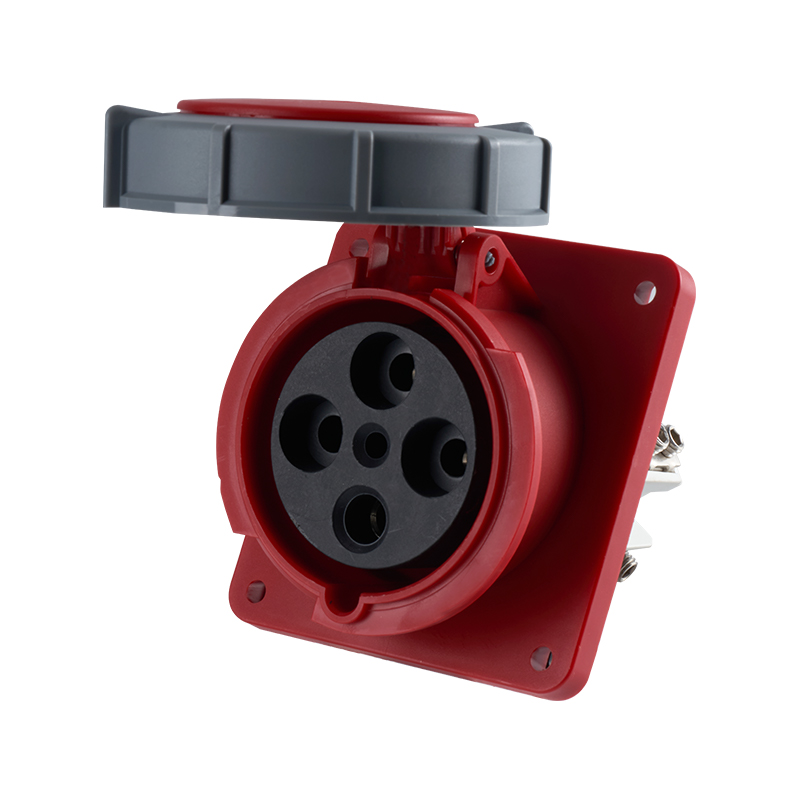

    FNP2-444F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    120
    131
    100
    108
    100
    85
    95
    112

    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 380-415V~
    Protection degree IP67

    3P+N+E

    FNP2-435F

    Earth contact position
    Normal current(A)
    6h
    63A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    101
    113
    80
    89
    67
    65
    79
    95

    Cable nominal cross-section area(mm2) 6-16
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

    3P+N+E

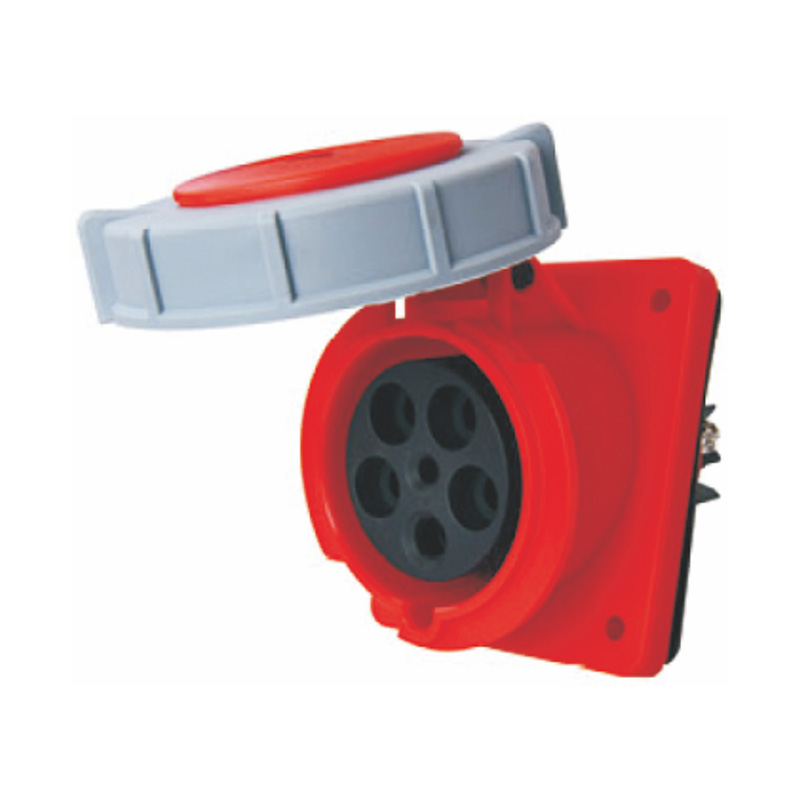

    FNP2-445F

    Earth contact position
    Normal current(A)
    6h
    125A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    120
    131
    100
    108
    100
    85
    95
    112

    Cable nominal cross-section area(mm2) 16-50
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

    2P+E

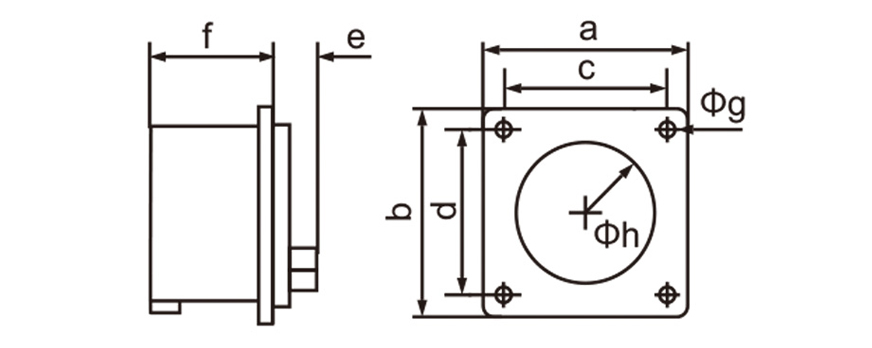

    FNP3-413-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    64
    75
    52
    60
    34
    49
    50
    60

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP44

    2P+E

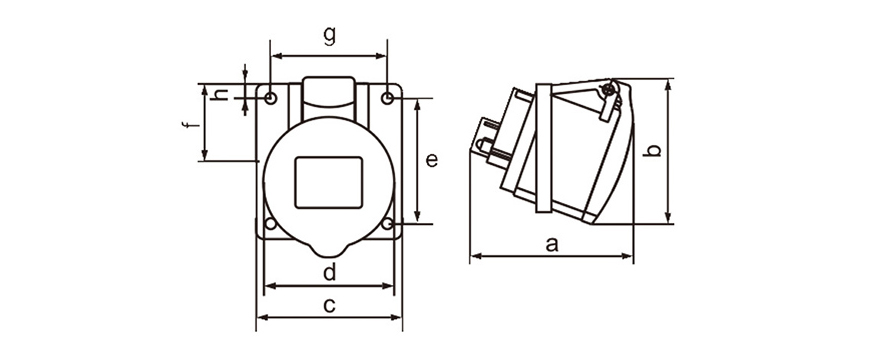

    FNP1-413-4

    Earth contact position
    Normal current(A)
    4h
    16A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g
    h

    76
    68
    62
    53
    58
    49
    47
    10.5

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 110-130V~
    Protection degree IP44
