European 3P 125A water proof outlet industrial female plug

3P125A IP67 industrial waterproof oblique socket

FNP1-443

Quantity

Contact Now

add to cart

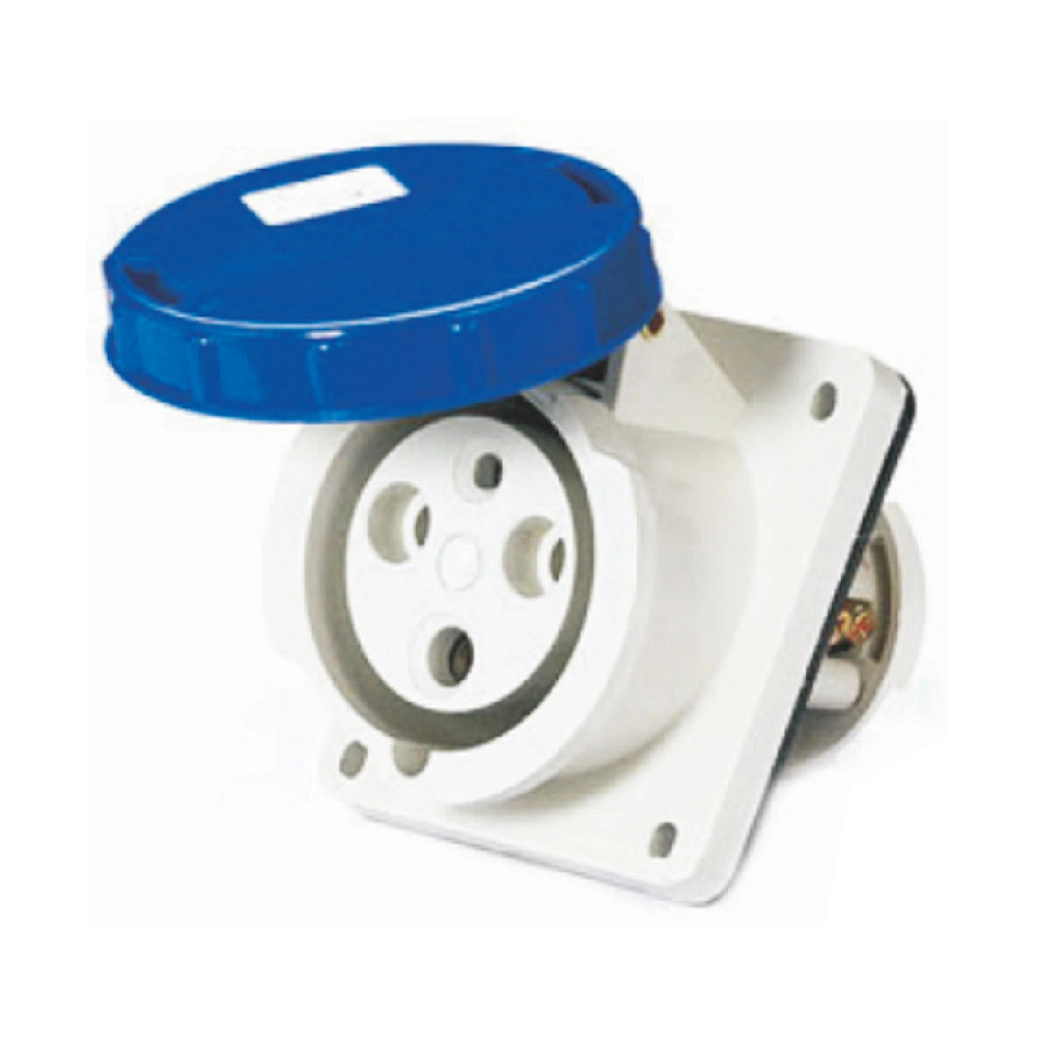

3P125A IP67 industrial waterproof oblique socket

Suitable range

This product can be widely used in industry, agriculture, chemistry, airports, docks, ships, metallurgy, electricity, construction, railways, profits and other internal and external places.

Product mix

This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Designed and produced, the product specification is FNP1-443 125A 3pin 220V concealed socket, the socket is 2P+E, the range is 220V, and the product protection level is IP67.

Key material parameters

· Shell material: PA flame retardant nylon

· Material of current-carrying flange: PA flame retardant nylon

· Contacts/screw accessories: copper /ML08A cold heading steel

Product outline installation ruler diagram

125A 2P+E 6H 200-250V Protection grade IP67
