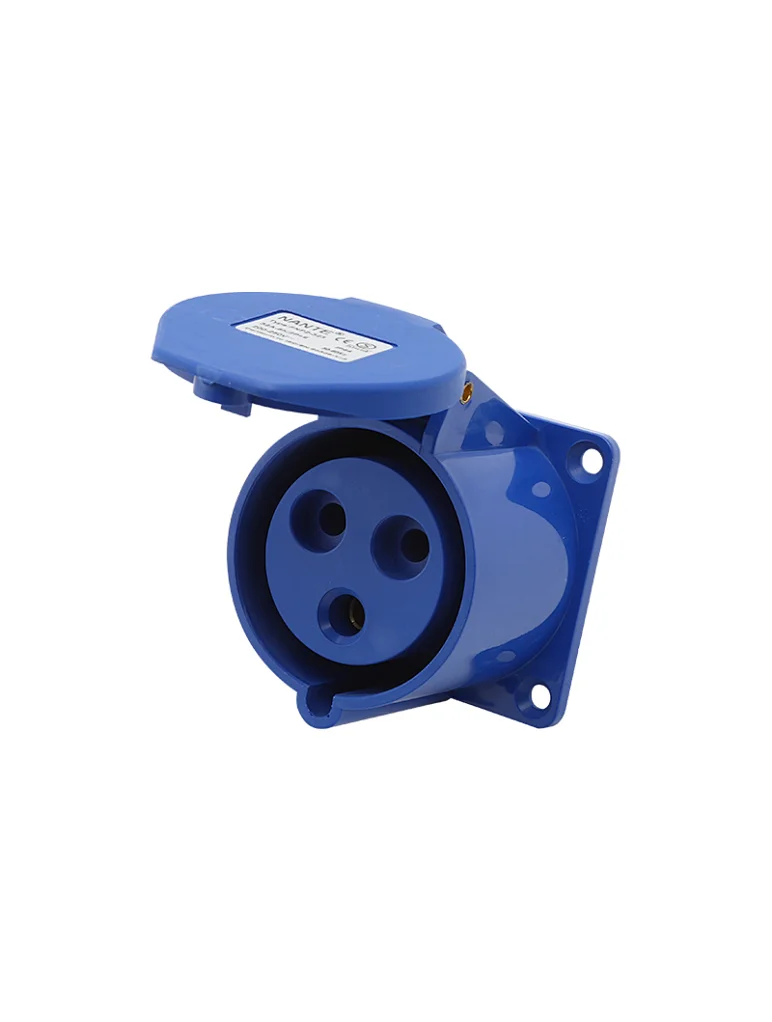

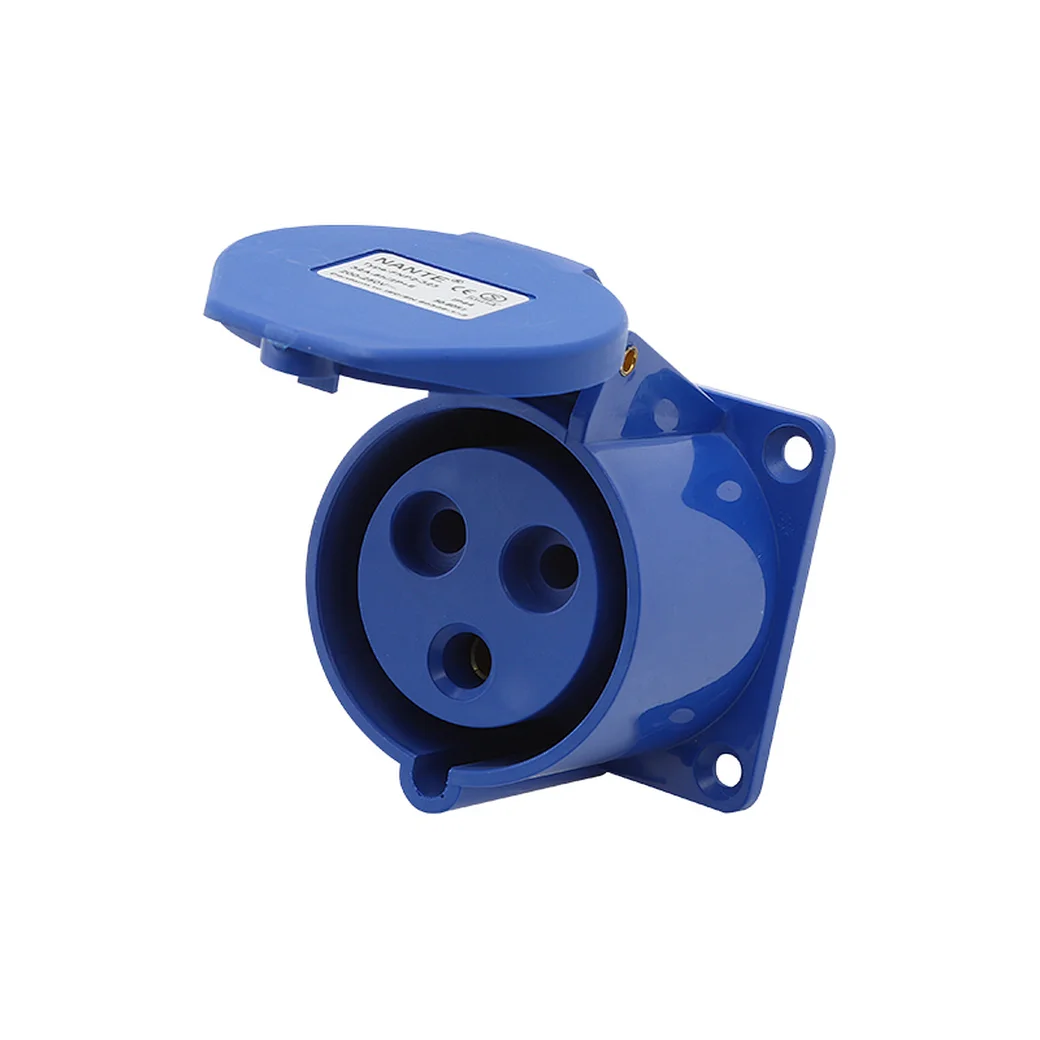

3P16A IP44 industrial waterproof socket
FNP2-313
Country of Origin:
China
industrial plug
Quantity
3P16A IP44 industrial waterproof socket
Suitable range
This industrial socket can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
Product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP2-313 3pin 16A 250V, the socket is 2P+E, the range is 250V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
Technical feature
· Rated current: 16A
· Rated voltage: 250V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N
Outline installation ruler diagram
16A 2P+E 6H 220-250V IP44
