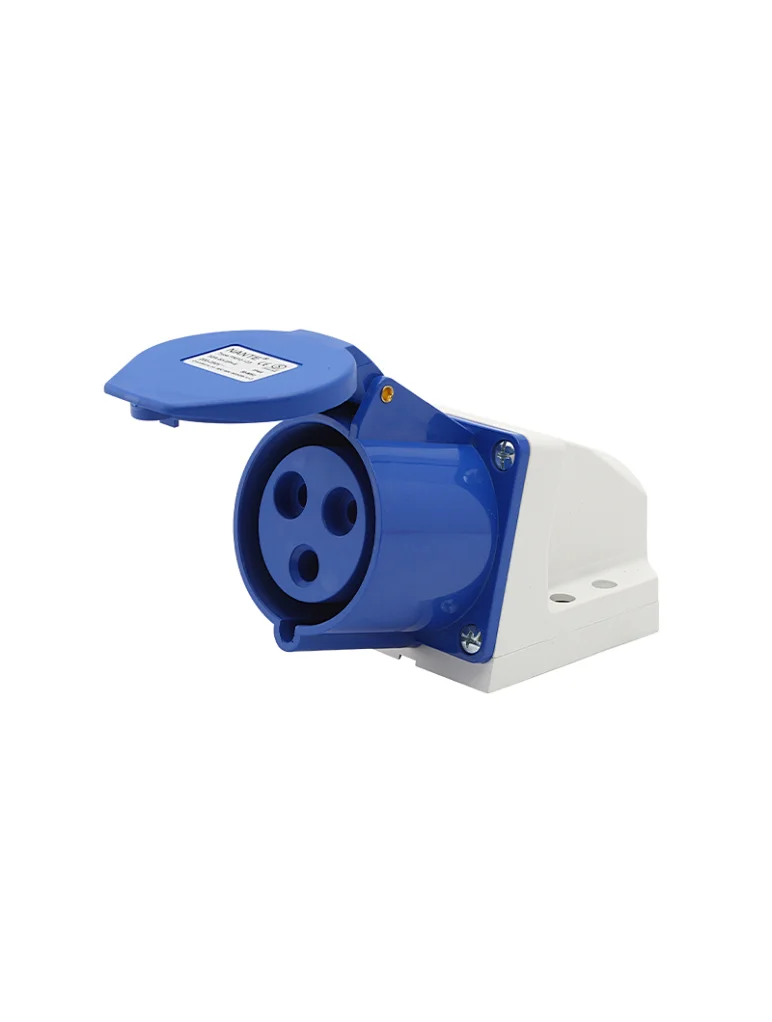

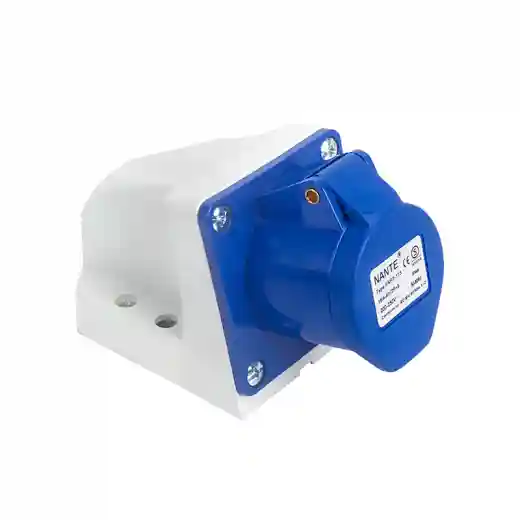

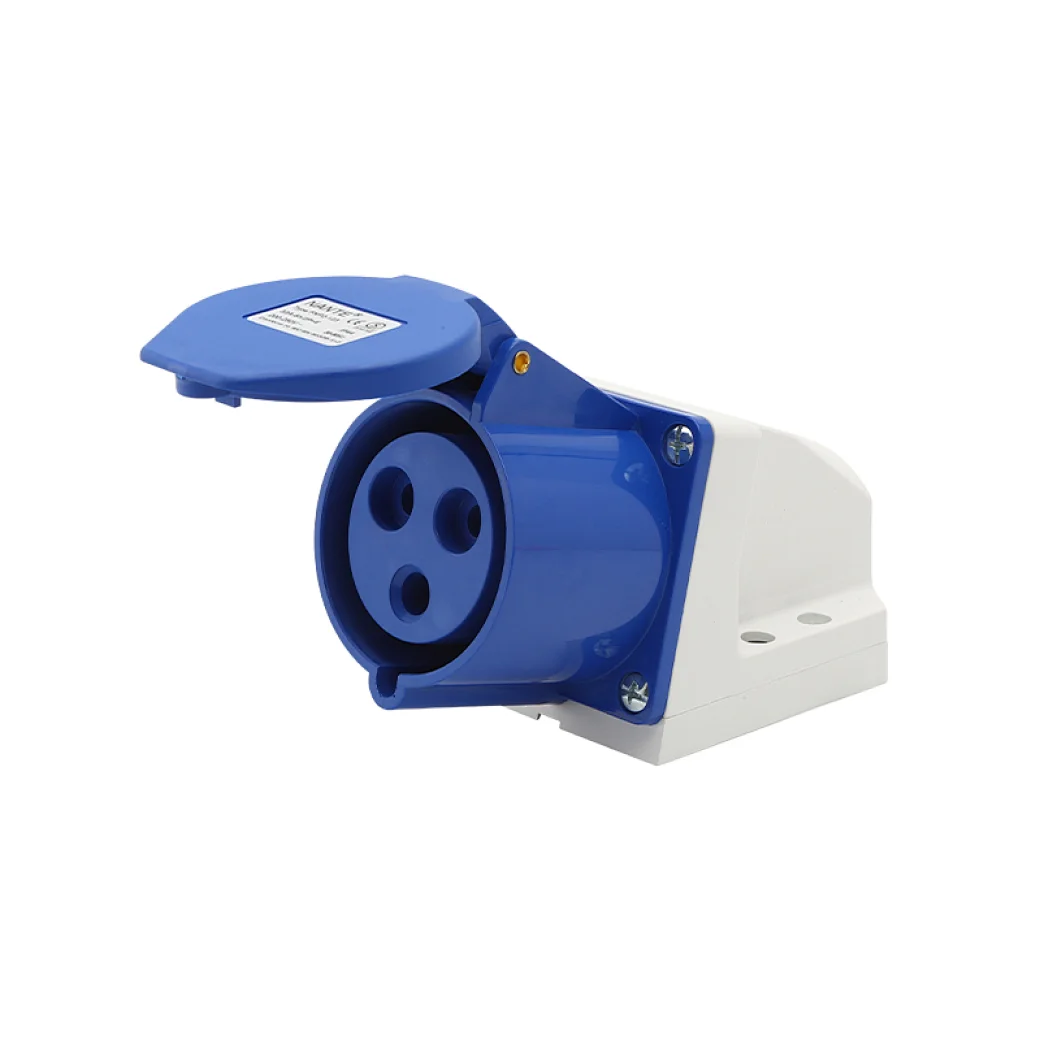

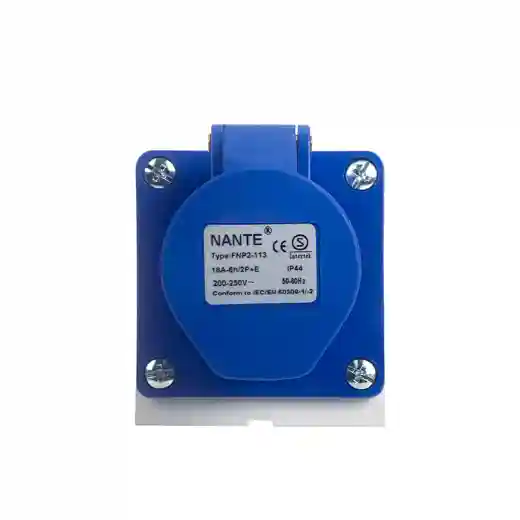

FNP2-123 3P32A IP44 Industrial waterproof socket

Suitable range

This industrial socket can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.



industrial socket mix

This industrial socket is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014；Designed and produced, the product specification is FNP2-123 3pin 32A 250V industrial socket, the socket is 2P+E, the range is 250V, and the product protection level is IP44 Splashproof.



Key material parameters

· Shell material: PA flame retardant nylon

· Material of current-carrying flange: PA flame retardant nylon

· Contacts/screw accessories: copper /ML08A cold heading steel



Technical feature

· Rated current: 32A

· Rated voltage: 250V

· Protection degree: IP44

· Insulation resistance: 500V d.c not less than 5 μΩ

· Dielectric strength: 2500V

· Temperature rise: the current-carrying end shall not exceed 50K

· Electrical clearance: not less than 8 mm

· Creep distance: not less than 10mm

· Heat and flame resistance: current-carrying parts 850±15℃; 650+/-15℃ for shell parts

· Cable connection end bears tension: not more than 80N



Outline installation ruler diagram

32A 2P+E 6H 220-250V IP44 electrical socket



• Application：

  Industrial
• Rated Current：

  32A
• Rated Voltage：

  220V
• Grounding：

  Other
• Type：

  Electrical Plug
• Model Number：

  FNP2-123
• Brand Name：

  NANTE
• Place of Origin：

  China
• Industrial plug and socket：

  Open socket
• industrial plug：

  nante FNP2
