4P16A IP44 industrial waterproof connector
Country of Origin:
industrial plug
Contact Now
add to cart

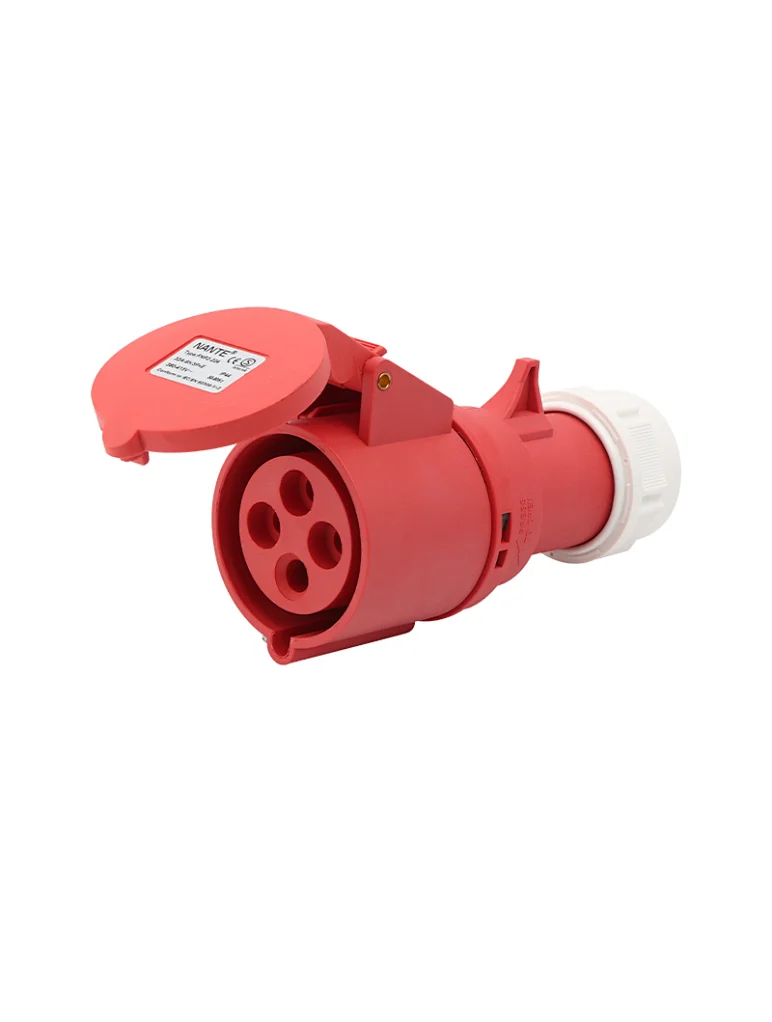

FNP2-214 4pin 16a IP44 industrial Connector
Type 214 ip44 380v 415v 4 pin 16A waterproof connector
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.
product mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-214 4pin 16A 380V industrial plug, the plug is 3P+E, the range is 380V, and the product protection level is IP44.
Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel
technical feature
· Rated current: 16A
· Rated voltage: 380V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N
Industrial plug outline installation ruler diagram
16A 3P+E 6H 380-415V IP44
Type 214 ip44 380v 415v 4 pin 16A waterproof connector
