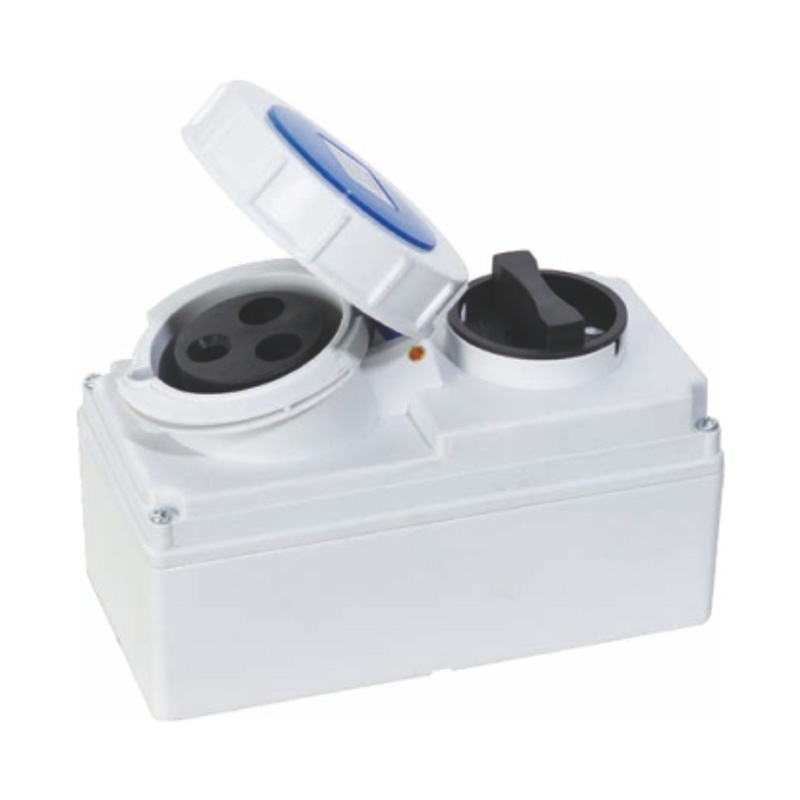

Interlock Switch Mechanical Interlock Socket Box Manufacturers



    The interlock switch Mechanical interlock socket box is a critical component in electrical safety and control systems. Designed to prevent accidental operation of equipment, this device enhances safety and efficiency across various applications. Its innovative design ensures that only one power source can be engaged at a time, effectively the risk of electrical hazards.

    Advantages of the Interlock Switch Mechanical Interlock Socket Box
    Enhanced Safety

    The primary advantage of the interlock switch Mechanical interlock socket box is its safety feature. By preventing simultaneous connection of multiple power sources, it mitigates the risk of electrical overloads and short circuits.
    This design is particularly beneficial in industrial settings where heavy machinery is involved, as it ensures that operators are protected from unexpected equipment startup.

    Durability and Reliability

    Constructed from high-quality materials, the interlock switch Mechanical interlock socket box is built to withstand harsh environmental conditions. This durability ensures a long lifespan, reducing the need for frequent replacements.
    Its robust design also offers resistance to dust, moisture, and mechanical stress, making it suitable for both indoor and outdoor applications.

    Ease of Use

    The user-friendly interface of the interlock switch Mechanical interlock socket box allows for straightforward operation. Operators can easily switch between power sources without requiring specialized training.
    Clear labeling and intuitive controls enhance the usability of the device, ensuring that even less experienced personnel can operate it safely.

    Selling Points of the Interlock Switch Mechanical Interlock Socket Box
    Compliance with Safety Standards

    The interlock switch Mechanical interlock socket box meets stringent industry safety standards. This compliance not only ensures user safety but also aids businesses in adhering to regulatory requirements.
    Having a certified device can improve a company's reputation and reliability in the market.

    Versatile Applications

    The versatility of the interlock switch Mechanical interlock socket box allows it to be utilized in various sectors, including manufacturing, construction, and commercial facilities.
    Its adaptability means it can be integrated into existing electrical systems without significant modifications, offering flexibility to users.

    Cost-Effectiveness

    Investing in the interlock switch Mechanical interlock socket box proves cost-effective in the long run. By preventing accidents and equipment damage, it helps avoid costly repairs and downtime.
    The reduced risk of electrical incidents can to lower insurance premiums for businesses, further enhancing financial benefits.

    Applications of the Interlock Switch Mechanical Interlock Socket Box
    Industrial Machinery

    In industrial settings, the interlock switch Mechanical interlock socket box is essential for safely managing power to machinery. It ensures that machines can only be powered from one source at a time, reducing the risk of mechanical failure.

    Construction Sites

    On construction sites, safety is paramount. The interlock switch Mechanical interlock socket box allows for the safe switching of power between generators and main power lines, ensuring that workers are protected from electrical hazards during site operations.

    Commercial Facilities

    In commercial buildings, this device can manage power for various systems, such as HVAC units, lighting, and equipment. The interlock switch Mechanical interlock socket box provides a reliable way to control power flow, ensuring operational efficiency while maintaining safety.

    Conclusion
    The interlock switch Mechanical interlock socket box is an indispensable device for ensuring electrical safety in various applications. With its numerous advantages, including enhanced safety, durability, and ease of use, it stands out as a vital component in industrial and commercial environments. The selling points, such as compliance with safety standards and cost-effectiveness, further reinforce its value. As industries continue to prioritize safety and efficiency, the interlock switch Mechanical interlock socket box will remain a crucial tool in achieving these goals.

    2P+E

    FNP7-113

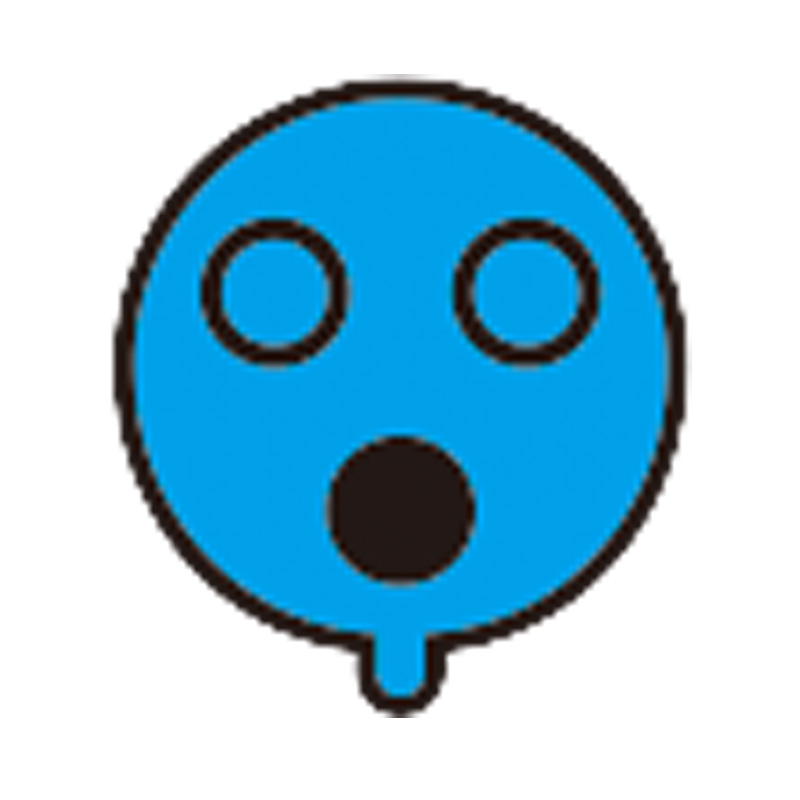

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E

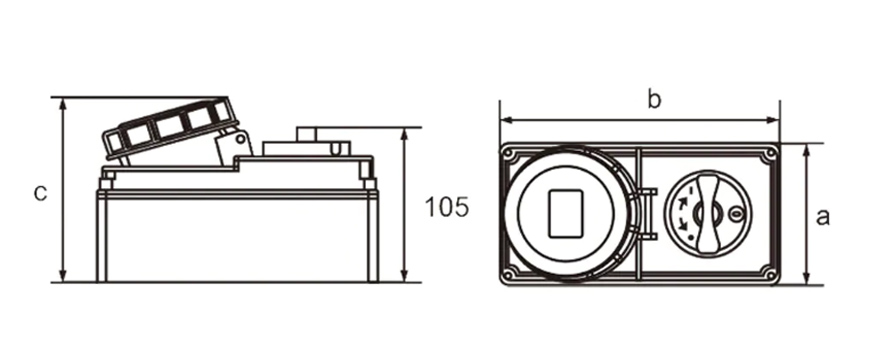

    Dimension (mm)

    a
    b
    c

    90
    180
    119

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree IP67

    2P+E

    FNP7-123

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c

    90
    180
    125

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree IP67

    3P+E

    FNP7-114

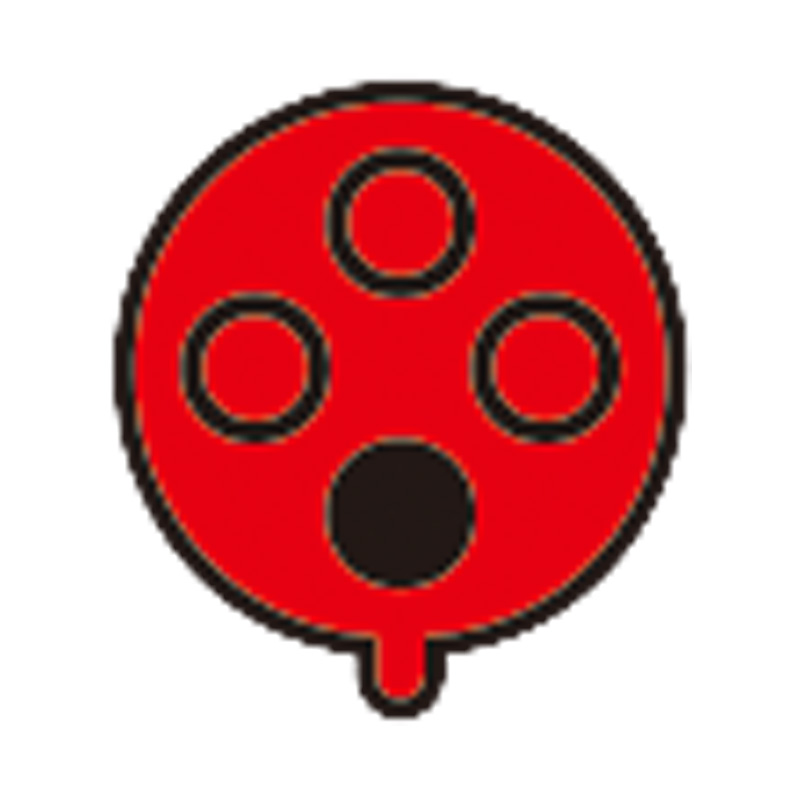

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c

    90
    180
    120

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree IP67

    3P+E

    FNP7-124

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c

    90
    180
    125

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree IP67

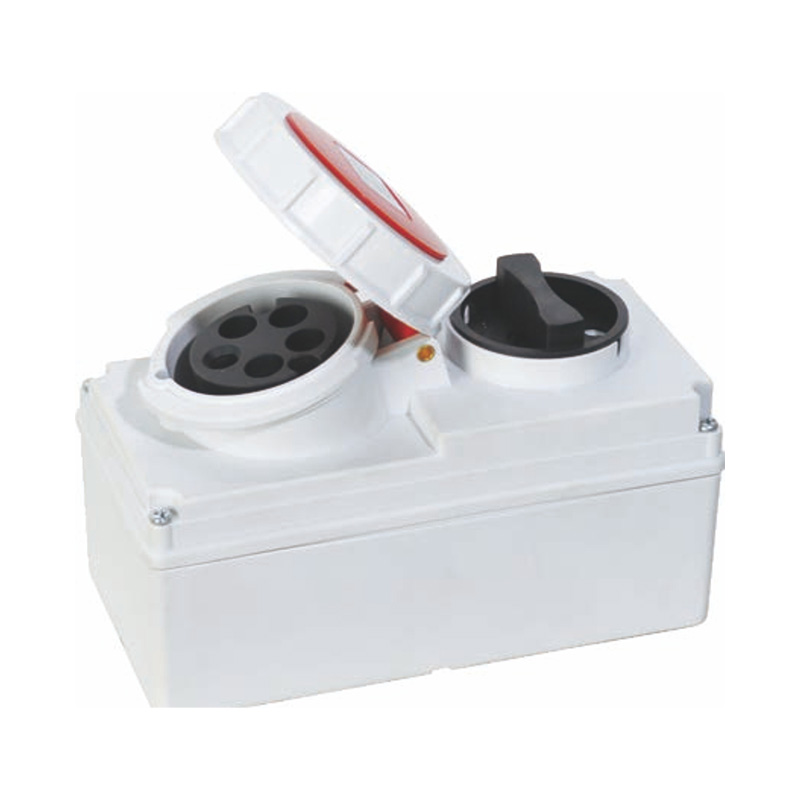

    3P+N+E

    FNP7-115

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c

    90
    180
    120

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

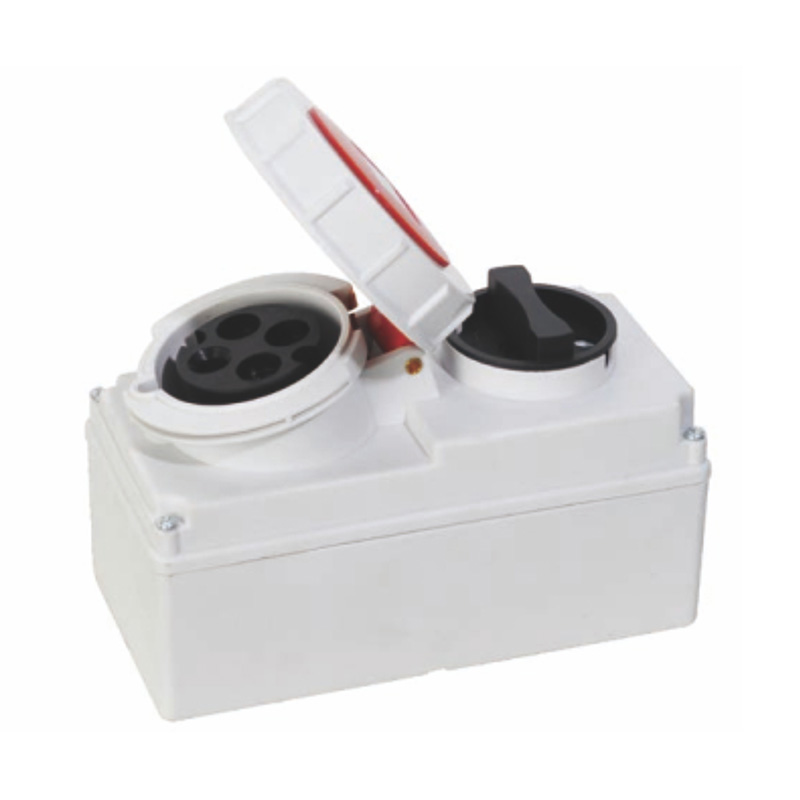

    3P+N+E

    FNP7-125

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c

    90
    180
    125

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP67

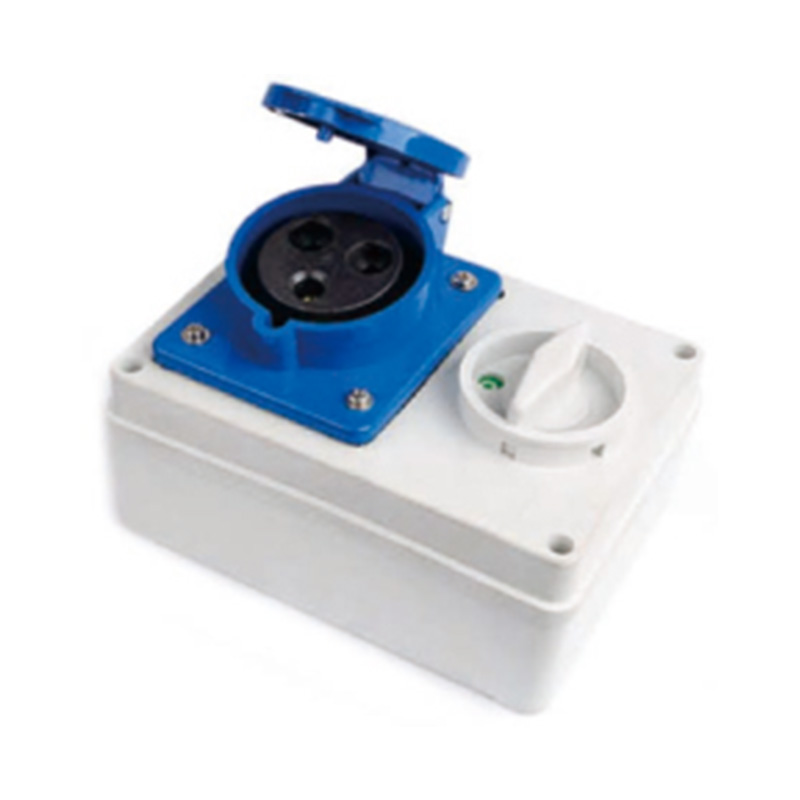

    2P+E

    FNP7-Z313

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 2P+E

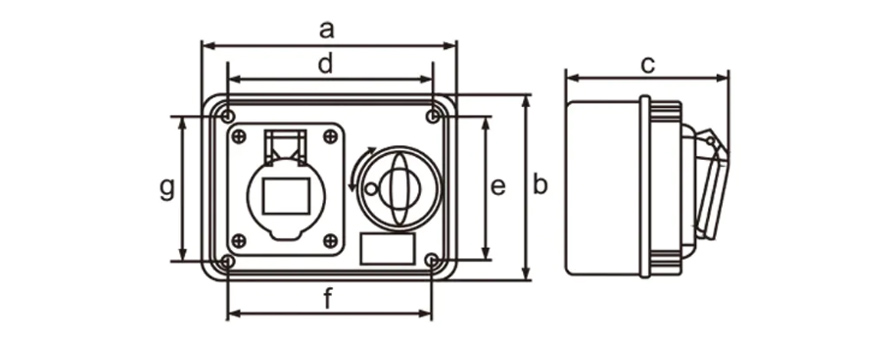

    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-250V~
    Protection degree IP44

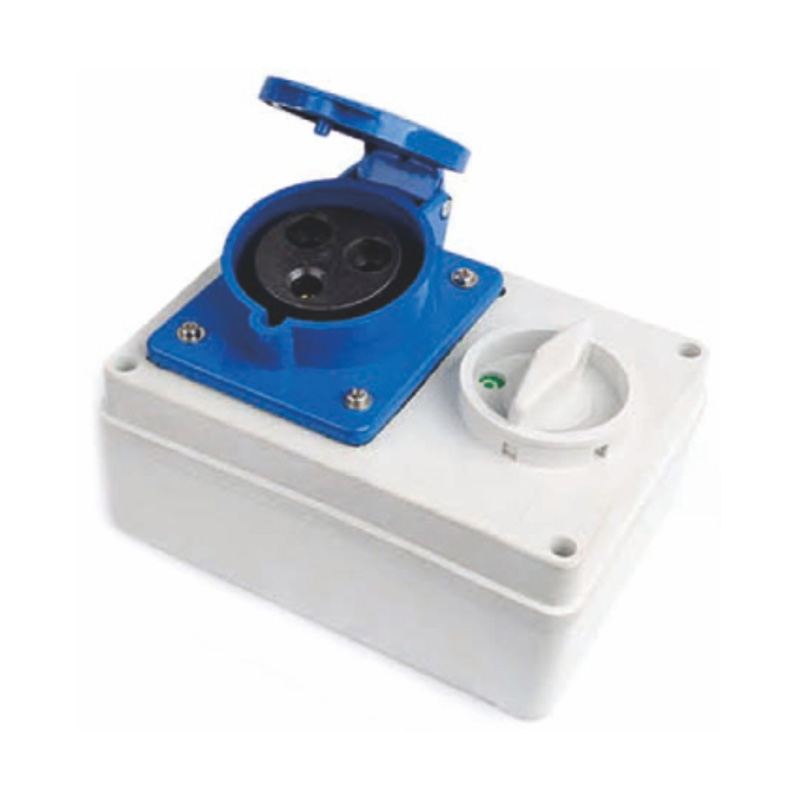

    2P+E

    FNP7-Z323

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 2P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-250V~
    Protection degree IP44

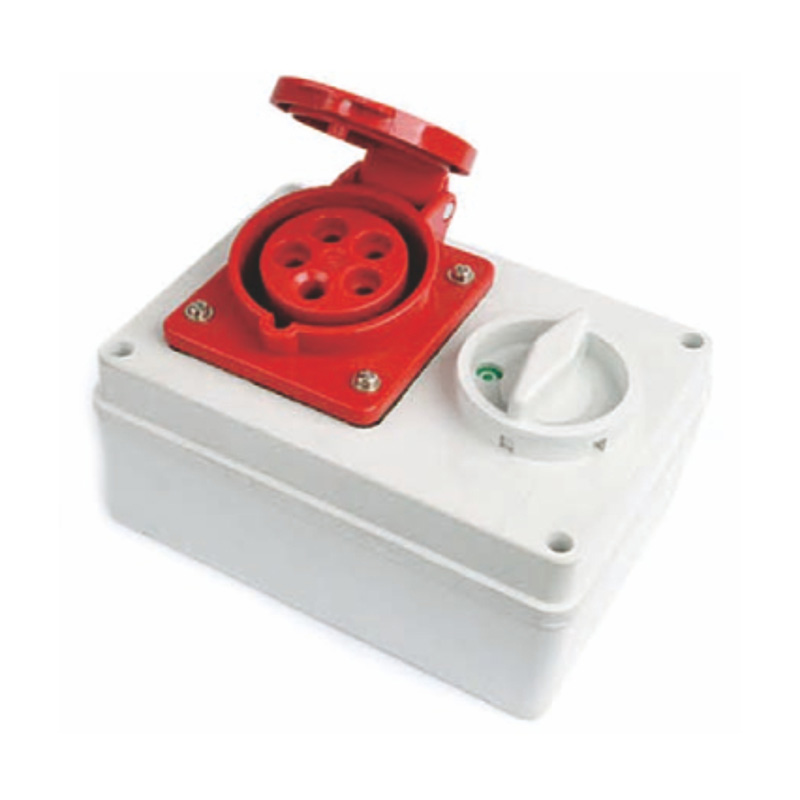

    3P+E

    FNP7-Z314

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 380-415V~
    Protection degree IP44

    3P+E

    FNP7-Z324

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 380-415V~
    Protection degree IP44

    3P+N+E

    FNP7-Z315

    Earth contact position
    Normal current(A)
    6h
    16A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 1-2.5
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP44

    3P+N+E

    FNP7-Z325

    Earth contact position
    Normal current(A)
    6h
    32A
    No.poles 3P+N+E
    Dimension (mm)

    a
    b
    c
    d
    e
    f
    g

    168
    120
    108
    148
    100
    148
    100

    Cable nominal cross-section area(mm2) 2.5-6
    Voltage(V) 200-346V~/240-415V~
    Protection degree IP44
