5p 16a Industrial Socket and Plug IP44 415V Waterproof
5p 16a Industrial Socket and Plug IP44 415V Waterproof
industrial plug ip44 32a
industrial plug 32a
ip44 industrial plug

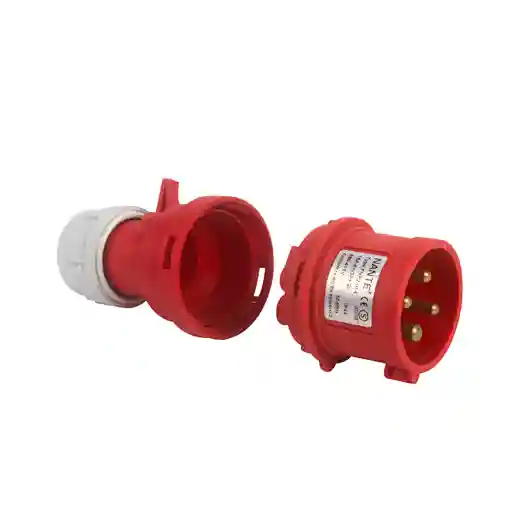

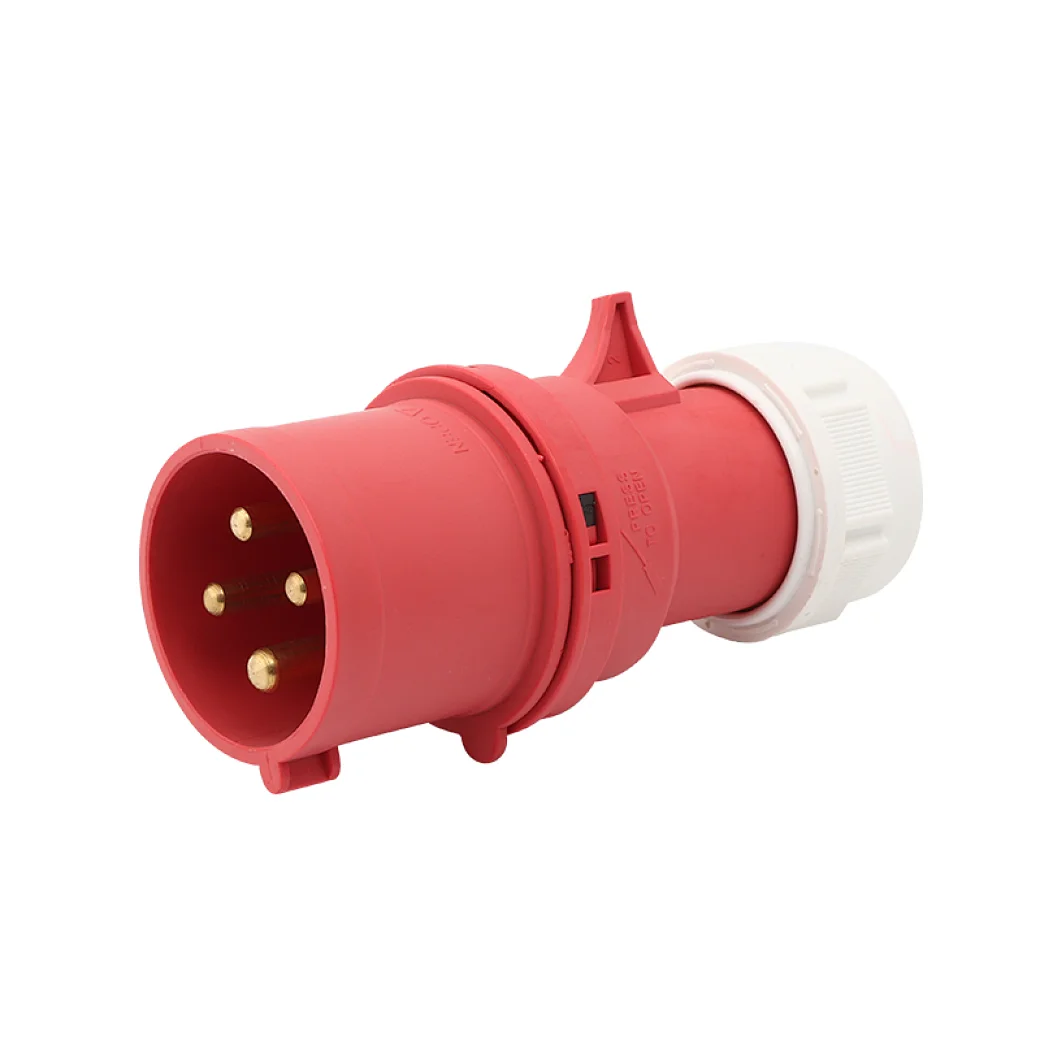

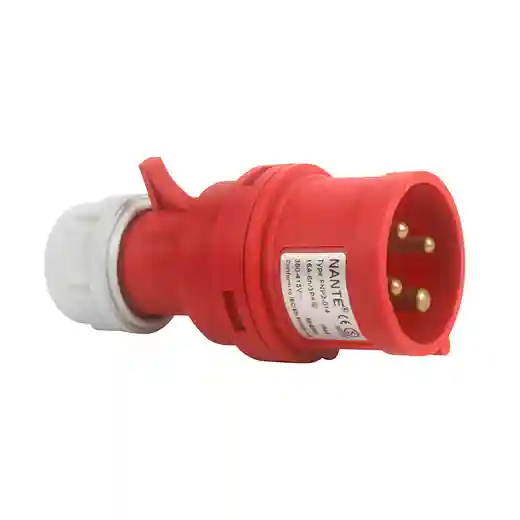

3P32A IP44 Industrial waterproof plug

FNP2-024
minimum order
1 piece
Country of Origin
China
industrial plug
Quantity
Contact Now
add to cart
FNP2-013 3pin ip44 16a Splashproof industrial plug 415V
32A 415V Industrial Plug 3P/4P/5P Electrical Connector IP44
Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

industrial plug mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-013 3pin ip44 16a 415V industrial plug, the plug is 2P+E, the range is 415V, and the product protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

ip44 16a industrial plug technical feature
· Rated current: 16A
· Rated voltage: 415V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Industrial plug installation ruler diagram
2P+E 6H 220-250V ip44 16a Splashproof 415V
