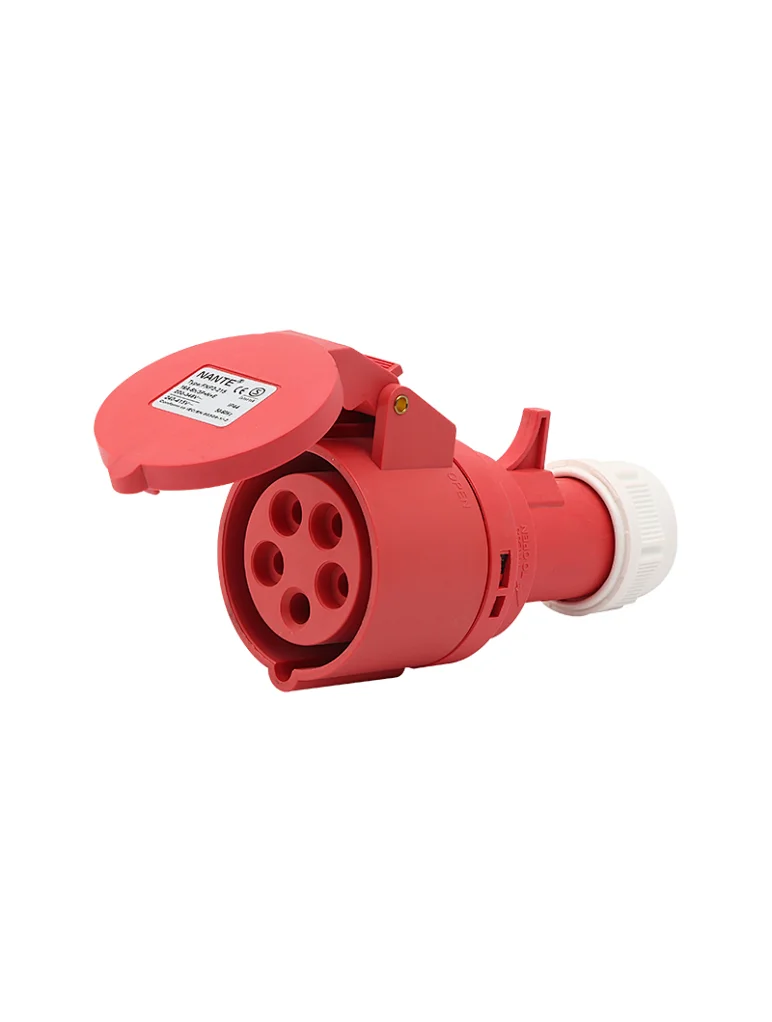

5P32A IP44 industrial waterproof connector
Type 225 ip44 415v 3p+n+e 4 pin waterproof connector socket
Suitable range
This industrial connector can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-225 5pin 32A 415V, the connector is 3P+N+E, the range is 415V, and the product protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

industrial plug technical feature
· Rated current: 32A
· Rated voltage: 415V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Industrial plug outline installation ruler diagram
32A 3P+N+E 6H 220-415V IP44
