NANTE IP44 3P 16A 250V event technology black industrial plugs and sockets
NANTE IP44 3P 16A 250V event technology black industrial plugs and sockets
IP44 Splashproof
industrial plug and sockes are high quality products
the product protection level is IP44 Splashproof

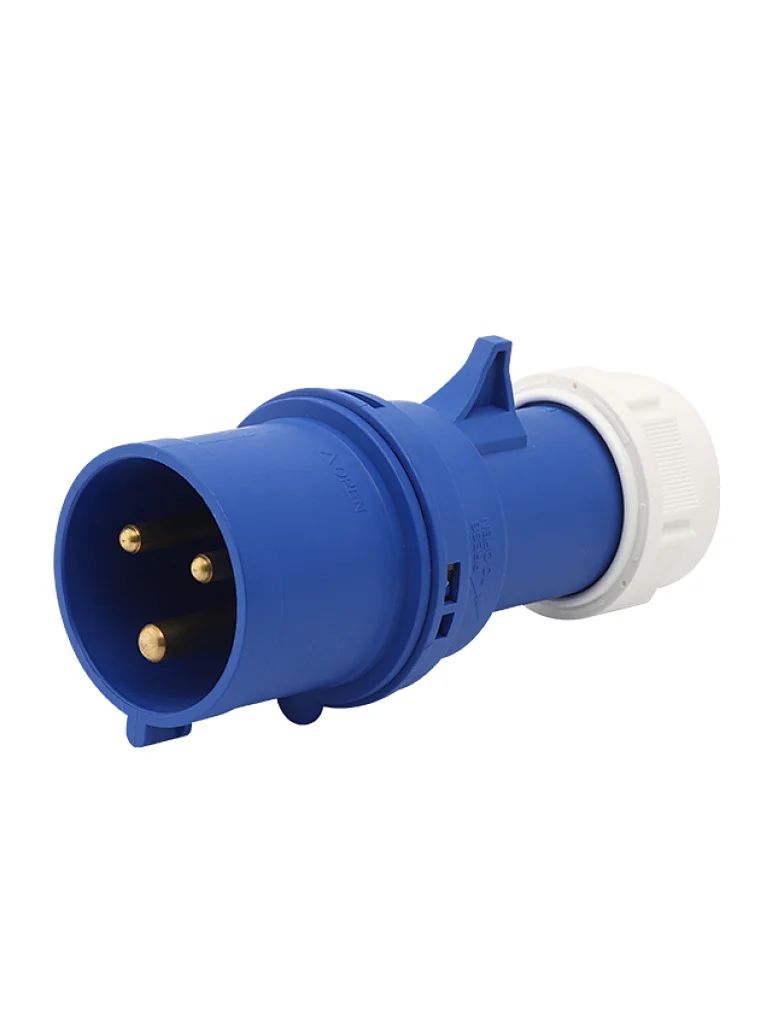

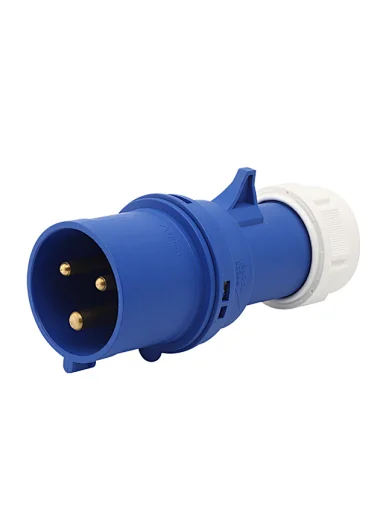

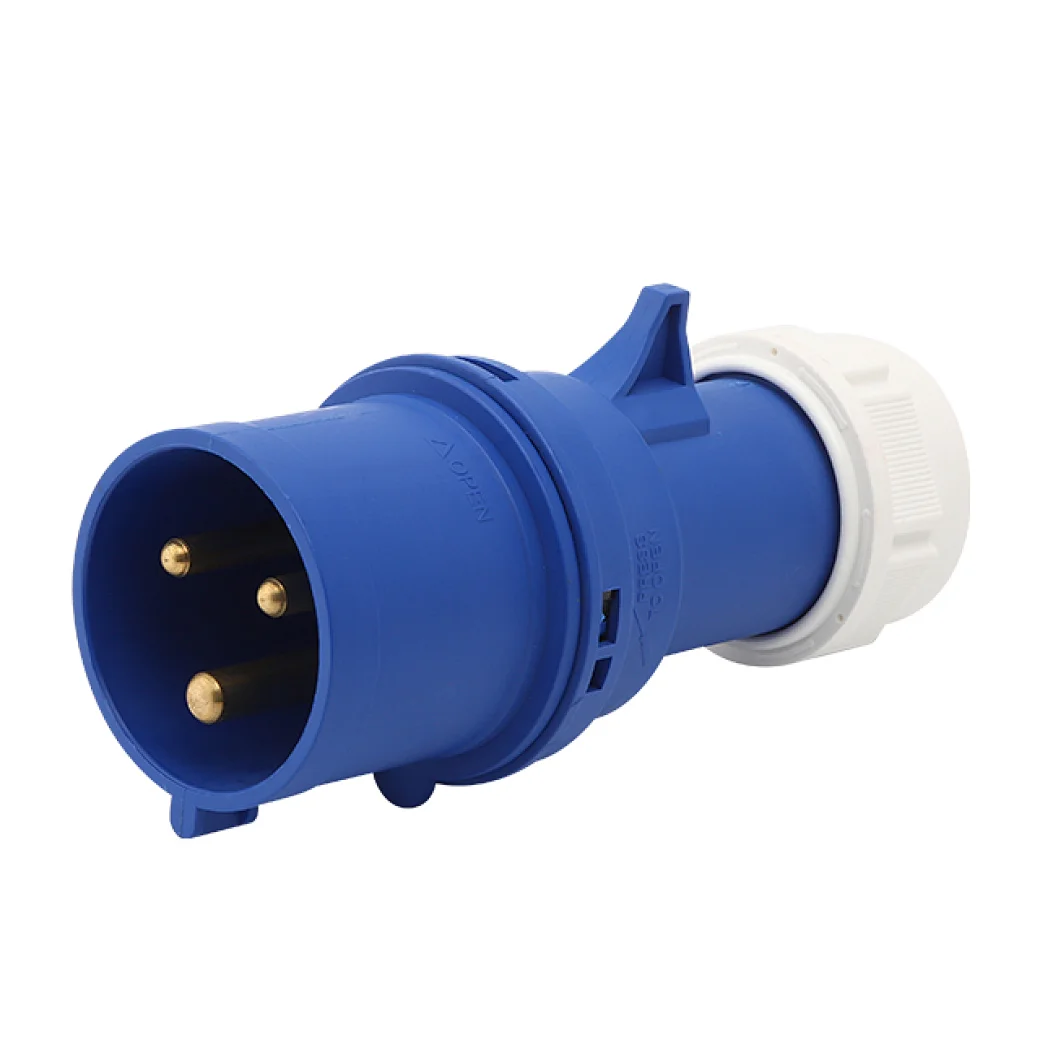

3P16A IP44 Industrial waterproof plug

FNP2-013
minimum order
1 piece
Country of Origin
China
industrial plug
Quantity
Contact Now
add to cart
FNP2-013 3P16A IP44 Industrial waterproof plug

industrial plug,female plug,IP44 Splashproof

Suitable range
This industrial plug can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

industrial plug mix
This industrial plug is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014;Designed and produced, the product specification is FNP2-013 3pin 16A 250V industrial plug, the  plug is 2P+E, the range is 250V, and the product waterproof protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

industrial plug technical feature
· Rated current: 16A
· Rated voltage: 250V
· Protection degree:  IP44 waterproof
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Industrial plug outline installation ruler diagram
16A 2P+E 6H 220-250V waterproof IP44
    industrial plug

IP44 Splashproof
