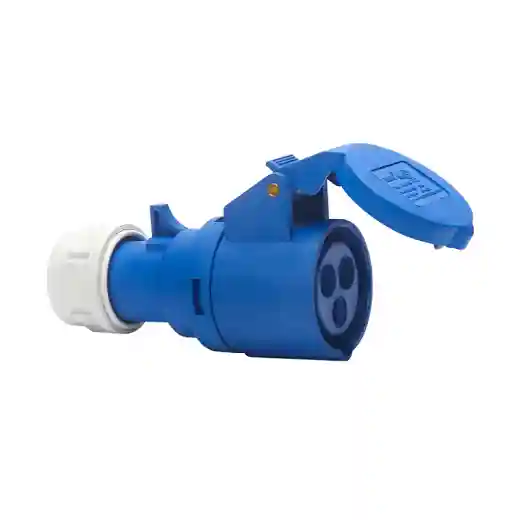

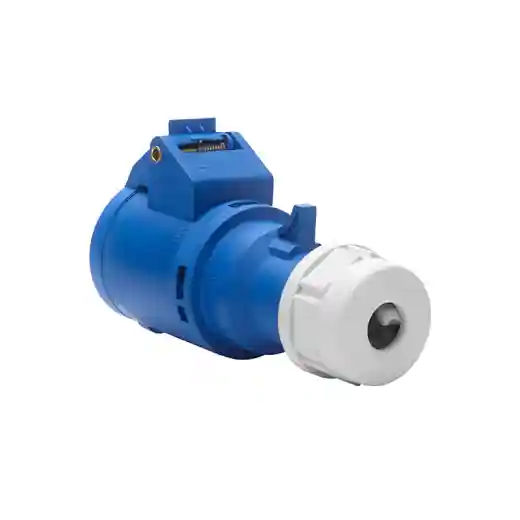

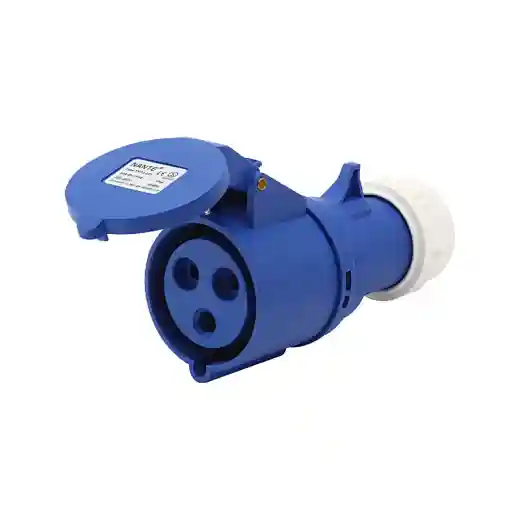

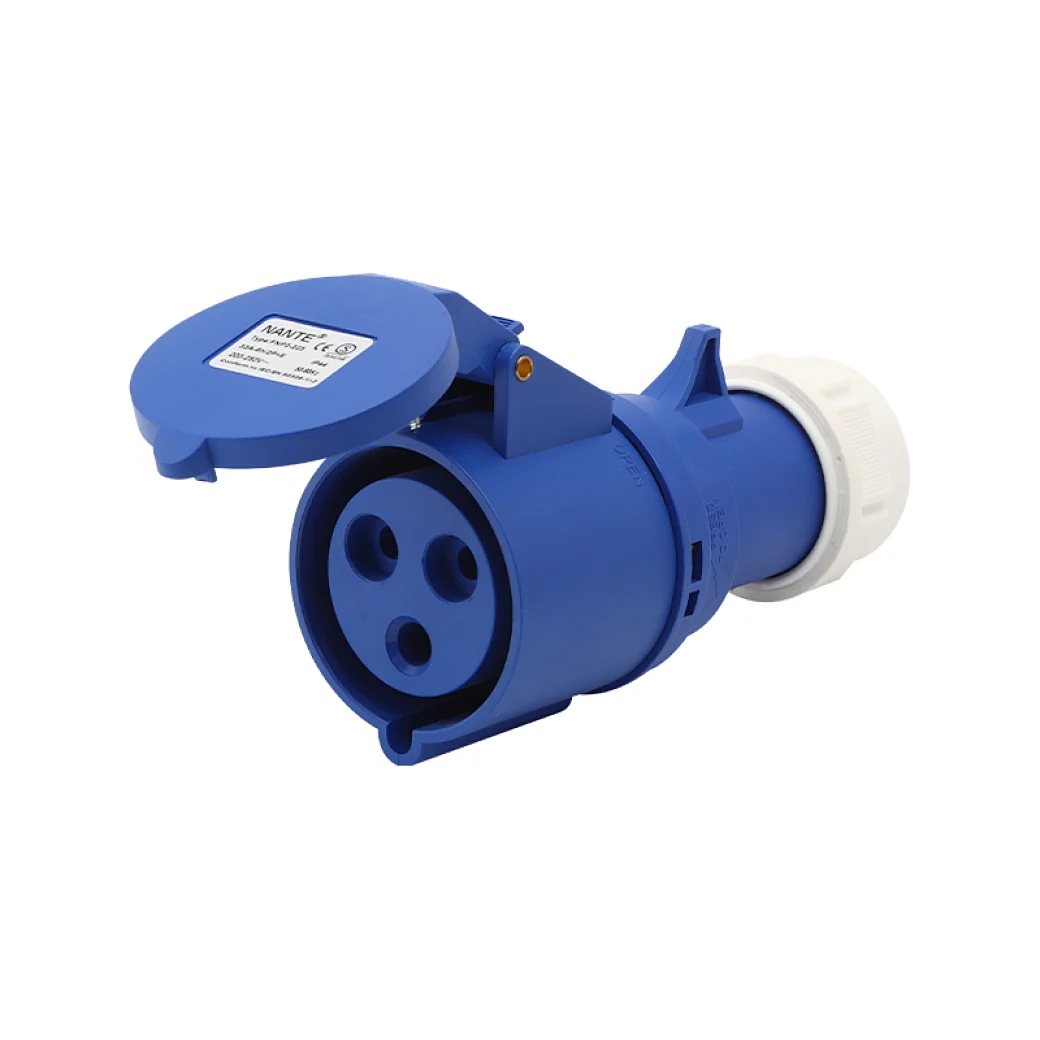

3P16A IP44 industrial waterproof connector
RED IP44 three phase 16 Amps 213 Industrial ip44 connector
Suitable range
This industrial connector can be widely used in industry, agriculture, chemistry, airports, docks, ships, electricity, construction, profits and other internal and external places.

product mix
This product is in accordance with the national standard GB/T 11918.1-2014; GB11918.2-2014; Design and production, product specifications are FNP2-213 16A 3pin 220V industrial connector, the connector is 2P+E, the range is 220V, and the product protection level is IP44.

Key material parameters
· Shell material: PA flame retardant nylon
· Material of current-carrying flange: PA flame retardant nylon
· Contacts/screw accessories: copper /ML08A cold heading steel

technical feature
· Rated current: 16A
· Rated voltage: 220V
· Protection degree: IP44
· Insulation resistance: 500V d.c not less than 5 μΩ
· Dielectric strength: 2500V
· Temperature rise: the current-carrying end shall not exceed 50K
· Electrical clearance: not less than 8 mm
· Creep distance: not less than 10 mm
· Heat and flame resistance: current-carrying parts 850 15℃; 650+/-15℃ for shell parts
· Cable connection end bears tension: not more than 80N

Industrial plug outline installation ruler diagram
16A 2P+E 6H 220-250V IP44 Splashproof
